NovaStar, FL141, Automatic Glue Spray Machine, Width 850 to 2200mm, with Bridge and Conveyor, Press at Exit (New)

NovaStar, FL141, Automatic Glue Spray Machine, Width 850 to 2200mm, with Bridge and Conveyor, Press at Exit

Description

  1. Overview
    1. Automatic glue spray machine with highly automated operation.
    2. Uses infrared measurement to automatically identify material height and width.
    3. Automatically adjusts glue nozzle position for spraying based on detection height.
    4. Completes processes including automatic glue spraying, pneumatic turning over of the unit, and automatic pressing.
    5. Plc control for high production efficiency; single spraying takes about 30 seconds per sheet.
    6. Suitable for sheets with width of 850 to 2200 mm and height of 5 to 400 mm.
    7. Applicable for foam, latex, mattress, and home textile industries.
  2. Advanced Control System
    1. Equipped with an advanced plc control system.
    2. Includes a 10 inch high quality touch screen.
    3. Advanced software system allows convenient switching of various patterns during production.
    4. Enables convenient storage and modification of various patterns.
  3. Advanced Digital Control Servo Glue Spraying Mechanism
    1. Utilizes an advanced digital control servo glue spraying mechanism.
    2. Laser infrared automatically detects material thickness and edge, transmitting signals to the servo system.
    3. Controls precise left and right movement and up and down lifting of glue spray heads via servo motor.
    4. Mattress width range: 850 to 2200 mm; height range: 5 to 400 mm.
    5. Allows manual input of mattress width and length on the screen for glue spraying action and length.
    6. Servo system provides more accurate glue spraying distance and positioning, more uniform glue spraying, and high consistency of each pattern.
  4. High Quality Silicone Conveyor Belt
    1. Equipped with an imported silica gel conveyor belt.
    2. Silicone conveyor offers high quality, durability, and easy removal of glue droppings.
    3. Helps keep the production process clean and tidy.

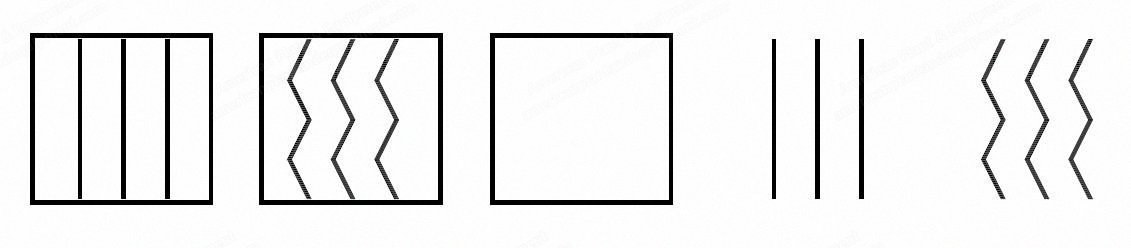

  5. Various Glue Spraying Patterns
    1. Can set multiple adhesive spraying patterns via the touch screen.
    2. Intelligently sets, stores, and adds different patterns for easy retrieval.
    3. Includes a set of recipe buttons on the feeding conveyor table.
    4. Button functions can be customized through all setting parameters on the touch screen.
    5. Allows operator to choose glue spraying method faster without using the touch screen every time, increasing operational convenience.
  6. Automatic Flip Platform
    1. Designed with an automatic turning table for worker convenience.
    2. Facilitates turning the mattress over for spraying after bonding one side.
    3. After second side bonding on the flip platform, material can be transferred to the next process via button control or returned for re-spraying after flipping.
    4. Turning and connecting arms facilitate mattress turning, effectively protecting the mattress and reducing worker operation difficulty.

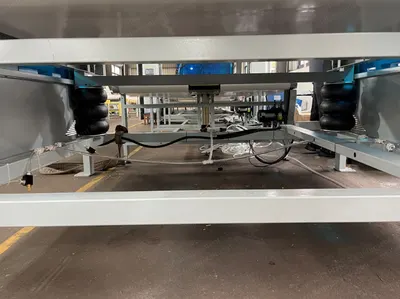

  7. Automatic Pressing Mechanism

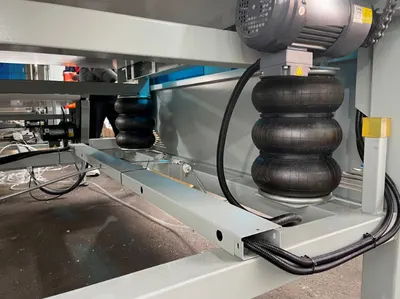

    1. Equipped with four air bags for pressing.
    2. Air bags provide more uniform pressure, better compression effect, durability, less damage, and low noise compared to traditional cylinder lifting.
    3. Automatically identifies mattress height for pressing; pressing height range: 100 to 400 mm.
    4. Includes an emergency stop button for immediate shutdown in special circumstances to ensure safety.
    5. Special design of top pressing from bottom to top reduces equipment height and improves convenience.
    6. Greatly improves automation degree and reduces manual output.
  8. Size And Weight
    1. Machine weight: 2500 kgs.
    2. Conveyor height: 850 mm.
    3. Total power: 20 kw.
    4. Floorprint length: 12000 mm.
    5. Floorprint width: 4500 mm.
