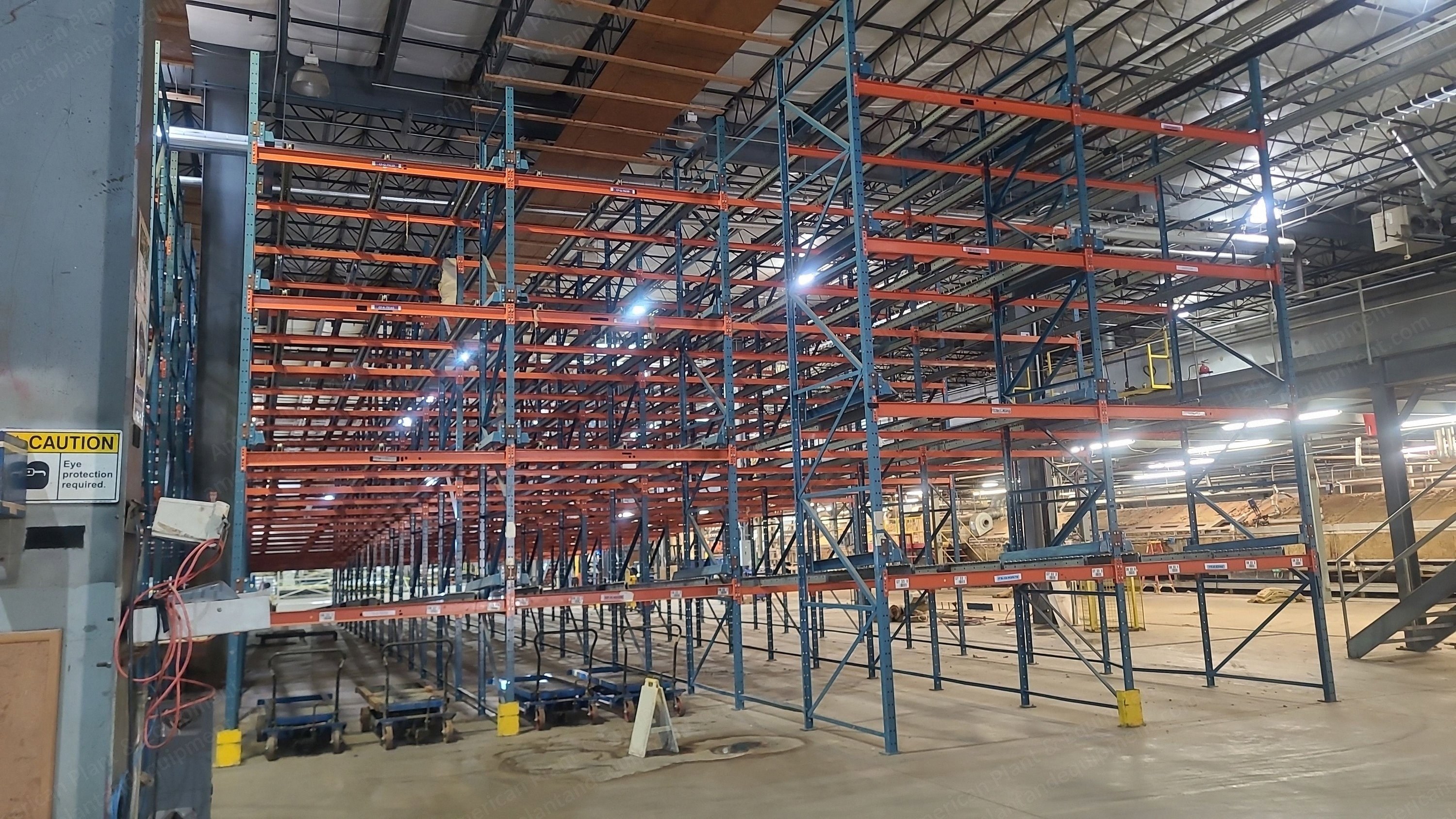

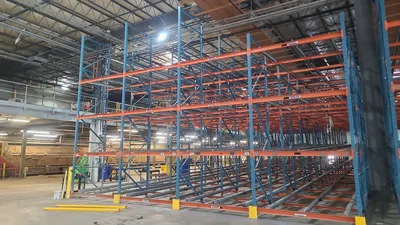

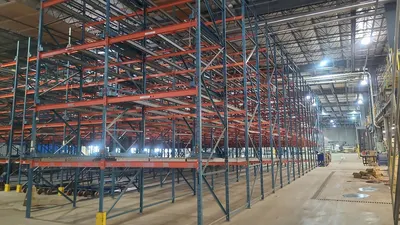

Gravity Flow Rack, 2018, 4 Levels, 2 Lanes, Pallet Centralizers, Brake Rollers

Description

Overview
1. Poly area: foam line
2. Gravity flow rack 1
3. Year: 2018
4. Power: N/A
5. Air: N/A
6. Dimension: 16 ft x 100 ft x 18 ft (2 lanes, 4 levels) + 16 ft x 90 ft x 18 ft (2 lanes, 4 levels)
7. Used
100 Ft Lanes
1. Frame depth: 60 in
2. Frame height: 264 in
3. Spacer depth: 60 in
4. Front beam heights: 9.5, 67.5, 125.5, 183.5 in
5. Back beam heights: 58, 116, 174, 232 in
6. Openings (w x h): 95 in x 50 in
90 Ft Lanes
1. Frame depth: 60 in
2. Frame height: 264 in
3. Spacer depth: 60 in
4. Front beam heights: 9.5, 67.5, 125.5, 183.5 in
5. Back beam heights: 52, 110, 168, 226 in
6. Openings (w x h): 95 in x 50 in
80 Ft Lanes
1. Frame depth: 60 in
2. Frame height: 264 in
3. Spacer depth: 60 in
4. Front beam heights: 9.5, 67.5, 125.5, 183.5 in
5. Back beam heights: 47, 105, 163, 221 in
6. Openings (w x h): 95 in x 50 in
Additional Features

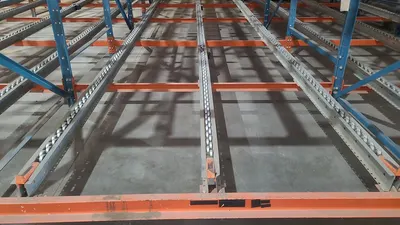

1. All lanes have pallet centralizers, brake rollers, and ramp stops.
