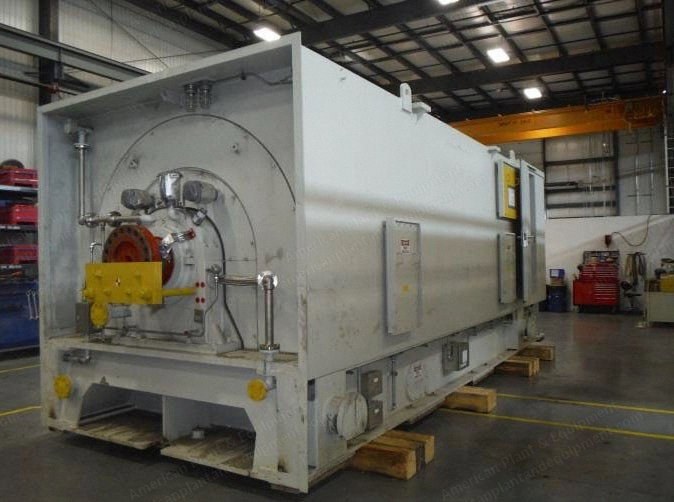

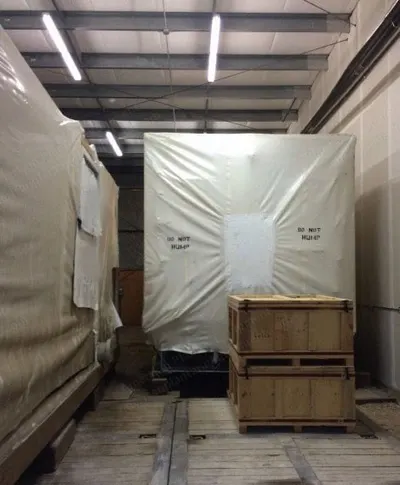

Description Overview Manufacturer: General Electric Year: 2014 Availability: Disconnected / immediate Currently in packaged condition Stored in accordance with GE's storage/preservation requirements Designed for the Canadian market Gas Turbine Frame 7EA gas turbine model PG7001EA (7E.03) Dry low NOx, specified for the DLN 1.0 combustion system* Natural gas single fuel supply Design site output/heat rate: 84.6 MW at 1916 ft and 32°F; 91 MW at 0 ft and 32°F GE PIP package included (minus STG 3 aero); firing temp 2055°F Inlet/exhaust pressure drop: 3.5/5.5 inches of H2O Hours: factory test fire only; the unit is new Control system: MKVIe Speedtronic TMR Generator Manufacturer: GE / Andritz Frame: BDAX (brushless) Excitation: GE EX2100 Frequency / power factor: 60 Hz / 0.85 PF Rated output: 101.8 MVA Cooling: Air-cooled Terminal voltage: 13.8 kV (2 pole, 3-phase, wye connection) Driver Model: GE 7E.03 Max HP: 122,000 HP Rated RPM: 3600 RPM Generator Info Model: GE 7A6 Capacity: 86.5 MW Hertz: 60 Hz Included Auxiliary Equipment Air cooled glycol heat exchangers with VFDs, filters, glycol pumps GSU transformer Glycol expansion vessel 52G synchronizing breaker compartment included at 13.8 kV including all protection relays Heat recovery steam generator (HRSG – not complete) Condition Notes Combustion system not included or installed – refurbished combustor components
