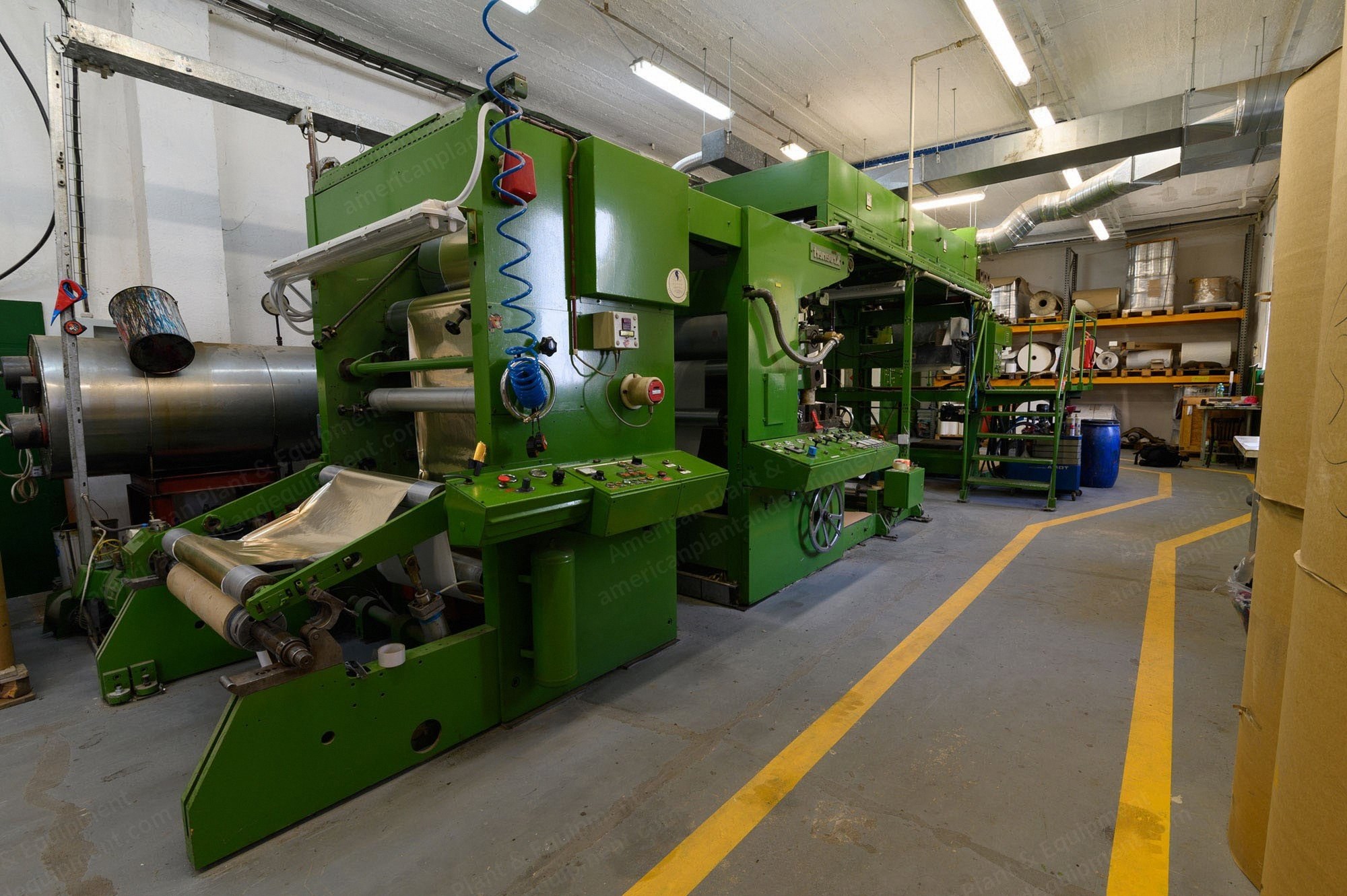

Kroenert, PAK 600, 1980, Waxer / Laminator / Coater, Working Width 500 to 1050mm, Speed 300 m/min

Kroenert, PAK 600, 1980, Waxer / Laminator / Coater, Working Width 500 to 1050mm, Speed 300 m/min

Description

  1. Item 001: Kroenert Type Pak 600 Waxer / Laminator / Coater
    1. Started production in 1980.
    2. Roll to roll configuration.
    3. Suitable for paraffin, wax, hotmelt, and coating applications.
    4. Working width: 500 to 1050 mm.
    5. Reel diameter: 600 to 1000 mm.
    6. Speed: approximately 300 m/min.
    7. Working temperature: up to 180 °C.
    8. Viscosity: up to 3000 mPas.
    9. Minimum coating weight: approximately 3-12 g/m².
    10. Maximum coating weight: approximately 50 g/m².
    11. Hotmelt coating weight: 8-25 g/m².
    12. Thickness of material: 20-120 g/m².
    13. Single- and double-sided application.
    14. Two reservoirs: one for wax, the other for varnish.
    15. Cooling cylinders with flow cooling.
    16. Unwinding paper diameter: 1000 mm, sleeves: 70, 76, 150 mm.
    17. Rewind tube: 150 mm.
    18. Space required: 4500 x 10000 x 4500 mm high.
    19. Possible substrates: PVC, alu, paper, cardboard.
    20. For paraffin, wax, and hotmelt coating.
    21. Heated by thermal oil.
    22. Pak melt tank and thermal oil heaters.
    23. Accessories: 24 pcs laminating roller, 9 pcs painting roller.
    24. Plus all spare parts, engines, gearboxes spare parts we have, are like almost a whole new machine.
    25. Lot of spare parts, especially cylinders.
    26. Nearly a second machine to be exchanged.
    27. Electro dryer – bridge over the machine.
    28. Test possible – immediately free for sale.
  2. Item 002: Stamping And Embossing Machine Heidemann
    1. Roll to roll configuration.
    2. Unwind up to 1000 mm rolls diameter.
    3. One steel cylinder with 850 mm gravure width – 188 mm diameter – installed in the machine.
    4. One paper roll with 850 mm effective width – 380 mm diameter – installed in the machine.
    5. Steel drum in reserve.
    6. Two paper rolls as a reserve.
    7. Cutting unit with squeezing for longitudinal cutting.
    8. Rewind up to 600 mm diameter.
    9. The machine is in top condition.
  3. Item 003: Wax-Laminator Kroenert-Pack 850
    1. The machine can be dismantled as from now.
    2. Machine is from 1970 and was used in production until 2017, but test possible on demand.
    3. The machine has 2 unwinders.
    4. Paper diameter: 1000 mm; alu diameter: 650 mm.
    5. Roll (paper/alufilm) is coated with a wax thickness.
    6. The alu foil is the one that is coated, with 7 to 11 gr wax.
    7. Rewind diameter: 1000 mm.
    8. To apply paraffin or hotmelt single-sided paraffin coating.
    9. Hotmelt is also possible.
    10. Other materials also possible – combinations: aluminum/paper, micro-perforated opp/paper, micro-perforated pet/paper, and aluminum/opp.
    11. Thickness minimum-maximum: we only worked with aluminium 7-8 µ and paper 40-60 gr.
    12. Working temperature: 120 °C.
    13. Viscosity: 25-40 cps/mPas.
    14. Minimum and maximum coating weight: not specified.
    15. No dryer.
    16. Pre melt tank: 550 mm x 660 mm x 520 mm.
    17. Electroschema-manual by the machine.
    18. Electric schemes are present, no manual.
    19. Seller did use it to laminate paper with alu foil, for butter wrapping paper.
    20. Max speed is 160 m/min, by width 850 mm.
