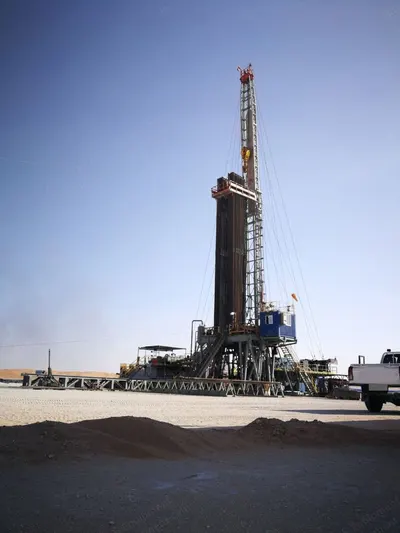

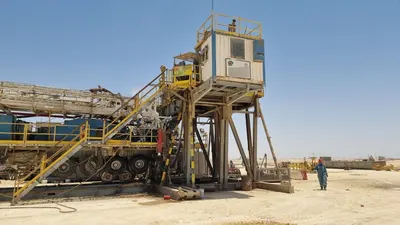

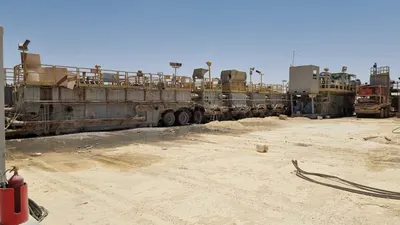

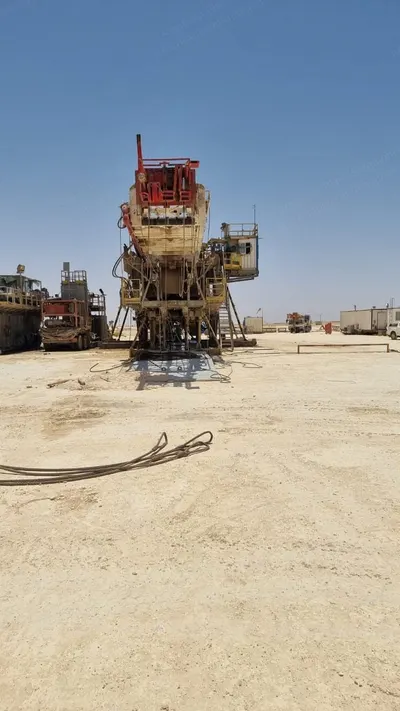

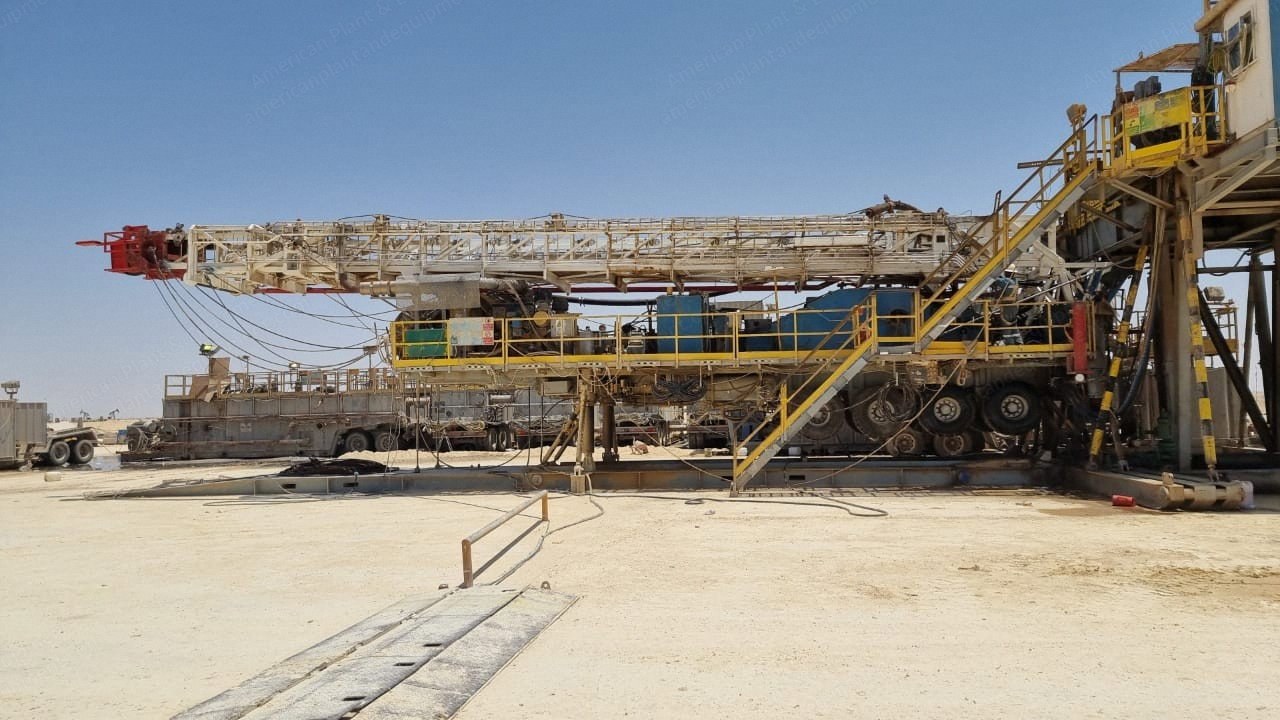

Drillmec, MR8000, 2011, 1000HP, 440000 lbs Hook Load, 10000 ft Depth

Drillmec, MR8000, 2011, 1000HP, 440000 lbs Hook Load, 10000 ft Depth

Description

  1. Overview
    1. Rig name/number: Gd Rig 109
    2. Rig type or model: Drillmec MR8000
    3. Rig owner: Gulf Drilling LLC (GD)
    4. Year built/re-built: 2011
    5. Constructed by: Drillmec
    6. Current status: Idle / hot stacked
    7. Number of loads: Rig approx. 38, camp approx. 18
    8. Estimated time: Rig down approx. 10 hours, rig up approx. 12 hours, rig move for 15 miles approx. 4 hours
    9. Fuel consumption: 1,100 gal x day
    10. Date of last survey including survey company: Cat IV inspection in Feb-2020
  2. Operating Capabilities
    1. Nominal vertical depth: 10,000 ft
    2. Maximum static hook load: 440,000 lbs
    3. Maximum setback load: 250,000 lbs
    4. Maximum rotary load: 440,000 lbs
    5. Maximum top drive load: N/A - top drive system is not available
    6. Maximum wind speed with no setback: 75 knots
    7. Maximum wind speed with maximum setback: 60 knots
  3. Storage Facilities
    1. Fuel: Approx. 240 bbl
    2. Drill water: Approx. 940 bbl
    3. Potable water: TBA
    4. Active drilling fluid: Approx. 1300 bbl
    5. Reserve drilling fluid: Approx. 1000 bbl
    6. Water for fire fighting: TBA
  4. Mast and Substructure
    1. Mast
      1. Make/type: Drillmec / doubles / telescopic mast
      2. Height: 115 ft / 35 m (from R.T. to crown)
      3. Width of base: 19.67 x 22.96 ft
      4. Static hook load with 10 lines: 440,000 lbs
      5. Explosion proof lights: Yes
      6. Ladders with cages: Yes
      7. Derrick cameras, locations: Yes (rig floor / shale shakers / BOP / driller console)
      8. Inertia reel (climbing assistant): Yes
    2. Racking Platform (Monkey Board)
      1. Make/type: Drillmec
      2. Racking platform capacity of drill pipe size/no.: 5” DP / 9,360 ft (2,650 m) - 140 stands
      3. Racking platform capacity of drill collar size/no.: 8-1/4” x 6 stands + 6 ½” x 10 stands
    3. Casing Stabbing Platform
      1. Make/type: Drillmec
      2. Adjustable range: Casing stabbing board with adjustable height from floor, it’s equipped personnel platform and one hydraulic cylinder for height adjustment complete with control.
    4. Travelling Block Guide System
      1. TBA
    5. Substructure
      1. Make/type: Drillmec
      2. Height: 20.0 ft / 6000mm (clear height = 16.7 ft)
      3. Static setback capacity: 250,000 lbs
      4. Casing load capacity: 440,000 lbs
      5. Setback and rotary simultaneous maximum capacity: 690,000 lbs
      6. Clear height below rotary table beams: 16.7 ft / 5000mm
      7. Catwalk: Approx. 45 ft
      8. Skidding capability: No
      9. Matting/type: TBA
    6. Rig Floor Winches
      1. Make: Juling
      2. Type: Neumatic
      3. Capacity and S.W.L.: 6600 lbs
      4. Wire diameter: 5/8 in
      5. Automatic brakes: Manual
      6. Automatic spooling: No
    7. Monkey Board Work Winch
      1. Make: Drillmec
      2. Type: Hydraulic
      3. Capacity and S.W.L.: 2640 lbs
      4. Wire diameter: 5/8 in
      5. Automatic brakes: Manual
      6. Automatic spooling: No
    8. Rig Floor 'Man-Riding' Winch
      1. Make: Ingersoll Rand
      2. Type: Neumatic
      3. Capacity and S.W.L.: 330 lbs
      4. Automatic brakes: Manual
      5. Automatic spooling: No
      6. Dedicated for only man-riding: Yes
    9. Utility Winch (Ie. Catwalk, Sub-Base Winch)
      1. N/A
    10. BOP Hoist and Trolley
      1. Make: Drillmec
      2. Type: The BOP handling system is composed by a dolly that support the BOP, lifting is by using traveling block.
  5. Drawworks and Associated Equipment
    1. Drawworks
      1. Make/type: Drillmec
      2. Rated capacity: 1000 HP
      3. Input power continuous: 1000 HP
      4. Drum type: Lebus groove for 1-1/8”
      5. Drum diameter: 26” (660 mm) x 42 ½“ (1080mm)
      6. Groove Lebus for line size: 1-1/8”
      7. Line guide make/type: TBA
      8. Spinning cathead make/type: 13,200 lb - (6000 kg)
      9. Breakout cathead make/type: 26,400 lbs -(12.000 kg)
      10. Blocks safety device type/model: Crown-O-Matic
      11. Additional block safety device (ie. Kems): N/A
      12. Brake type/size: Equalized band brakes
      13. Maximum line pull 10 lines: 440,000 lbs
    2. Drawworks Power
      1. Number of electric motors: Two (2) diesel engines
      2. Electric motor make: Caterpillar engines C15 – ACERT (540 HP each engine)
      3. Electric motor model: N/A
      4. Maximum input power continuous: 1000 HP
    3. Drawworks Transmission
      1. Make/type: Caterpillar
      2. Number of speeds: Right angle gear box in oil bath gear case for draw work transmission
    4. Auxiliary Brake
      1. Make/type: Parmac
      2. Model: V-80 hydromatic brake
    5. Automatic Drilling System
      1. Not available
    6. Catheads
      1. Make/type: Drillmec
      2. Break out (ft/lbs): Max. pull = 26,400 lbs -(12.000 kg) / stroke = 1300mm
      3. Make up (ft/lbs): Max. pull = 13,200 lb - (6000 kg) / stroke = 4600mm
    7. Drilling Line Spooling Device (Drilling Line Guide)
      1. Make/type: Drillmec
      2. Deadline stabilizer: TBC
  6. Hoisting Equipment
    1. Crown Block
      1. Make/type: Drillmec
      2. Rated capacity: 440,000 lbs
      3. No. of sheaves: Five (5) + fastline
      4. Diameter: 36 in
      5. Groove size(s): 1-1/8 in
      6. Crown block safety device: Crown-O-Matic
      7. Bumper at crown-block with safety slings
    2. Travelling Block
      1. Make/type: American block or equivalent
      2. Rated capacity: 500,000 lbs
      3. No. of sheaves: Five (5)
      4. Diameter of sheaves: 36 in
      5. Groove size(s): 1-1/8 in
    3. Hook
      1. N/A / unitized travelling block - hook
    4. Swivel
      1. Make/type: King Oil Tool or equivalent
      2. API rated bearing capacity: 270,000 lbs @ 100 RPM
      3. Comparative dead load: 440,000 lbs
      4. Test/working pressure: 5,000 PSI
      5. Connection: Pin 6 5/8” reg. L.H
    5. Kelly Spinner
      1. Provided
      2. Make/type: TBC
    6. Elevator Links
      1. Provided
      2. Make/type: TBC
    7. Drilling Line
      1. Size: 1-1/8” in
      2. Make/type: IWRC, EIPS, 6X19
      3. Breaking strength: 130,000 lbs
      4. Length: 5000 ft
      5. Spare reel: No
    8. Dead Line Anchor
      1. Make/type: Hercules, model HA-131T
      2. Load rating: 50,000 lbs
      3. Weight sensor make/type: E80
    9. Tension Load Sensor
      1. Make/type: Provided
      2. Calibration: TBC
  7. Rotary System
    1. Rotary Table
      1. Make/type: Drillmec
      2. Drive: Driven from drawworks
      3. Motor HP (if independent): 2 x Caterpillar engines C15 – ACERT (540 HP each engine)
      4. Maximum opening: 27-1/2” in
      5. Static load rating: 770,000 lbs
      6. Rotating load rating: 770,000 lbs
      7. Rated power: 1000 HP
      8. Maximum continuous torque: 17,635 ft-lbs / 2391 dan.m
      9. Soft torque rotary system: N/A
      10. Maximum rotary speed: 200 RPM
    2. Master Bushings
      1. Make/type: Drillmec
      2. Solid or hinged/split type with locking device: Solid steel split type
      3. Accessories (insert bowls): 2-3/8” – 13-3/8”
    3. Kelly Drive Bushing
      1. Provided
    4. Kelly Bushing Safety Guard
      1. Provided
    5. Casing Bushing and Bowls
      1. Make/type: Drillmec
      2. Accessories: Insert bowl n°32 for 10.3/4 -9.5/8 (Drillmec code: 4041 4756), quantity: one (1); insert bowl n°31 for 13.3/8 -11.3/4 (Dr
