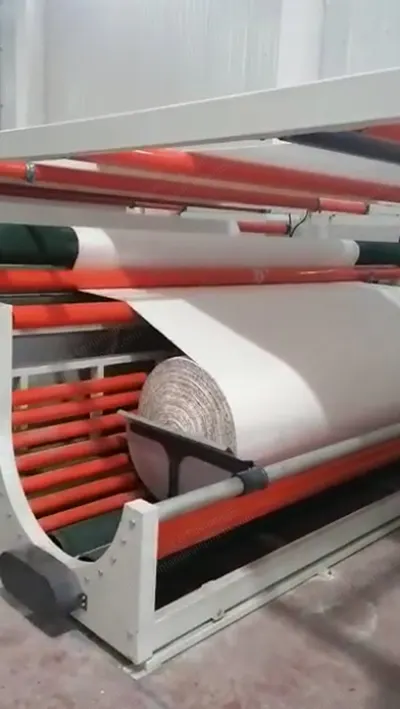

First felt is laminated on the back from the carpet

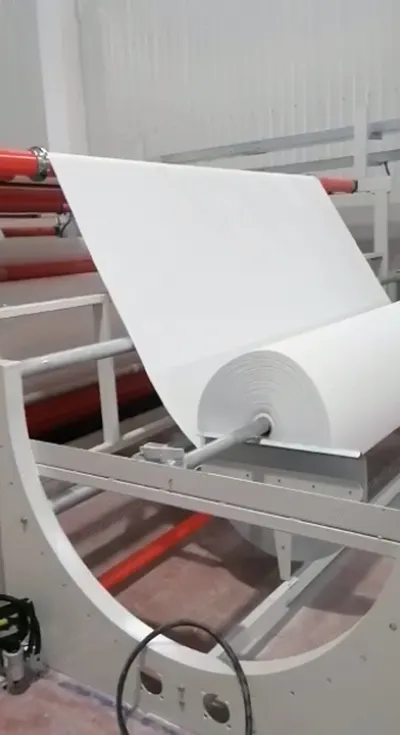

Second dotting flexible PVC backing carpet felt
Plant is brand new 2022
Laminating And Pvc Back-Coating Line
Working width: minimum 1200 mm, maximum 4000 mm
Working speed: 7 meters per minute
Primary goods: rug and blanket and fabric
Coating type: PVC
Secondary back goods: one side ironed felt and non woven
Coating screen roller: as produce as customer design
Inlet: primary goods and also secondary back goods are up to 1000 mm diameter roll
Lamination unit: fabric and felt are adhered with special PVC mixture; PVC application is applied with a rotation printing system, then it is pressed and glued with compression rollers
Coating unit: designed as 64 reports, template mounting kits suitable for Storks head, height adjustable according to product thickness

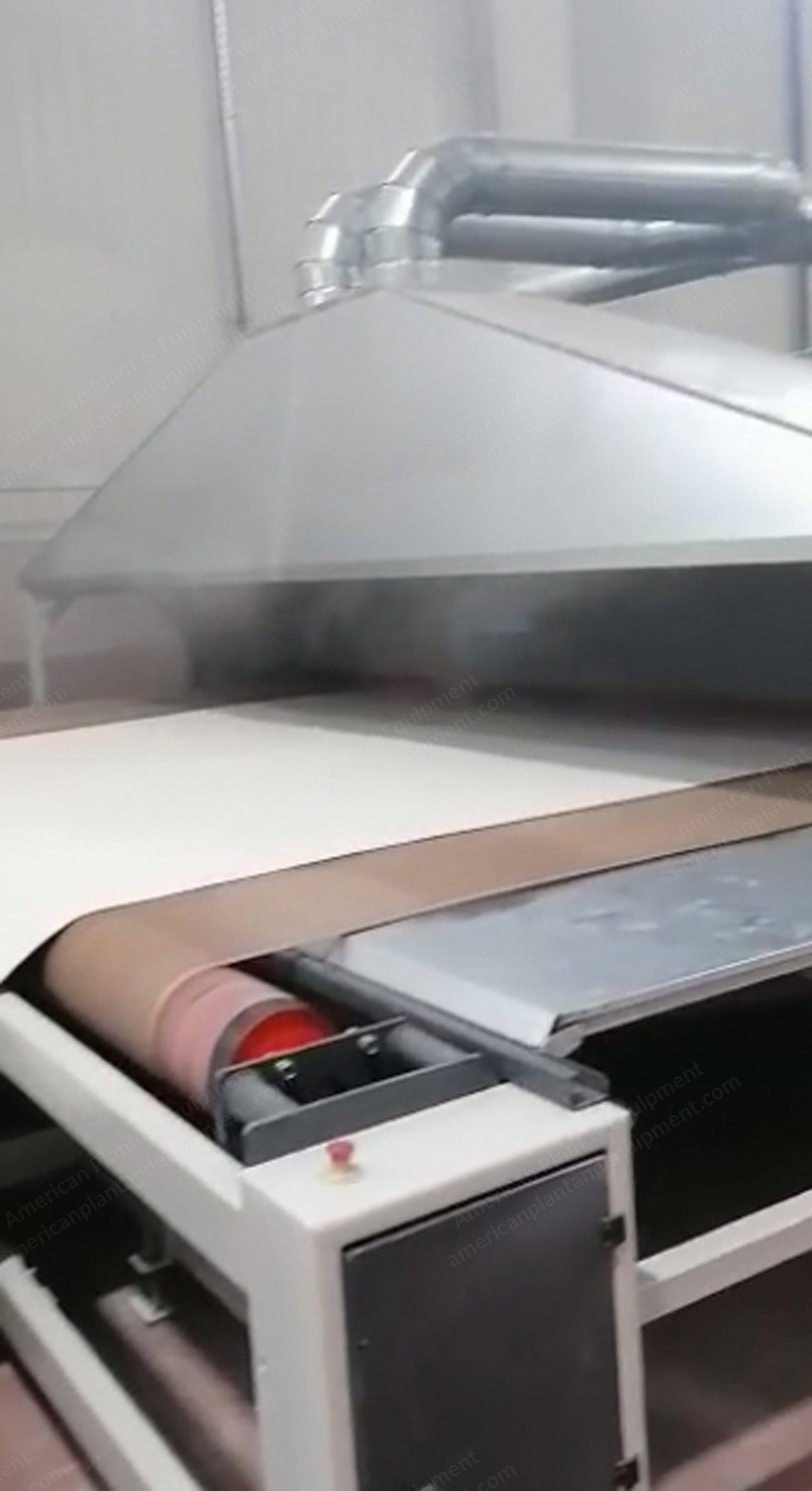

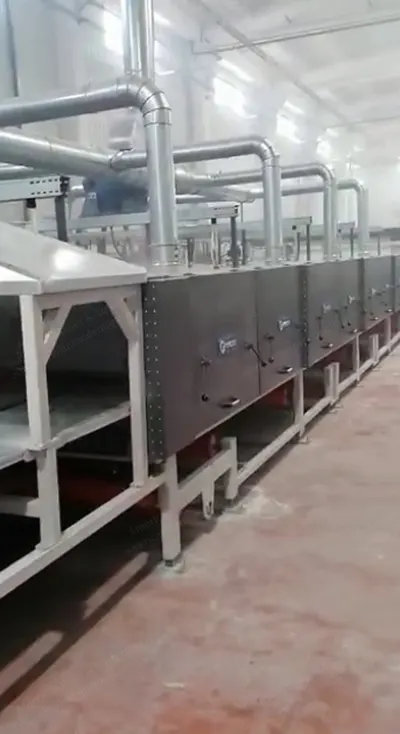

Drying oven: 12 meters length with 4 chambers and heated by infrared tube, each chamber has 36 kW power and temperature control can be made, the oven is covered with 50 mm thick isolation panels, there are 12 fans that provide hot air circulation in the oven, there is an exhaust fan on the furnace that transfers the vapor and smoke generated to the chimney (chimney roof connection not included)
Cooling unit: while the hot product coming out of the oven is on the belt, it is cooled by cooling fans
PVC preparing mixer: volume 450 liters and blender power 30 kW and stainless steel tank
Outlet: folded width 1000 mm to the transport trolley
Synchronization: synchronization between rollers is provided by dancer rolls
General descriptions: electrostatic powder coating, all motors with gearbox by Yilmaz Redüktör, all electrical equipment and PLC and touch screen by Schneider, all sensors by Sick
Length Cutting Machine
Working width: 4000 mm
Working speed: 6 meters per minute
Product: coating PVC
Cutting unit: total 5 cutting units each one with 350 mm diameter cutting blade driven by AC motor
Entrance: folded product is transported with gearbox; before entrance cutting unit centering with guiding unit
Exit: all cutting product is folding to trolley 1000 mm width
Synchronization: all transport roll with gearbox is covered by belt wear resistant and high adhesion; the synchronization inside the transport roll arrange with dancer roll
General details: electrostatic printed, all electric and electronic part is Schneider Electric, pneumatic parts is Festo, gearbox and motors is Yilmaz mark
Overedging Line
Working width: 4000 mm
Working speed: 6 meters per minute
Product: coating PVC
Entrance: folded product is transported with gearbox inside to J-box; machine designed for non-stop working
Side overedging unit: the main head of overedging is not included in offer; electronic photocell system moves by the coming side of the carpet; using puller system in the exit of overedging head for regular transport
Rolling unit: automatic wall to wall rolling machine located in exit of line and possible to roll how many meters if desired; electronic settings for hardness detail
Synchronization: all transport roll with gearbox is covered by belt wear resistant and high adhesion; the synchronization inside the transport roll arrange with dancer roll
General details: electrostatic printed, all electrics and electronics part is Schneider Electric, gearbox and motors is Yilmaz mark
Wall To Wall Rolling Machine (For 4000 Mm Carpet)
Working width 600 mm to 4000 mm carpet edge follow system with sensor
Movement side support with linear and pneumatic system (2 fix 2 movement edge restraint)
Regular roll, through total body moving according to upcoming rug; ability to adjust roll tightness by means of both 2 motor speed controlled
PIC system
Tension for rolling (changeable hardness)
Length counter
Electric panel
Electrostatic powder coat for chassis
Included Components
Laminating and PVC back-coating line
PVC preparing mixer
Length cutting machine
Extra optional cutting head
Overedging line
Wall to wall rolling machine
