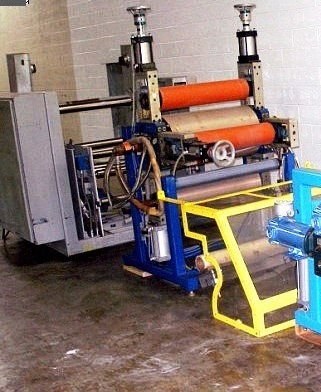

Laminating Line Components, 28 inch Working Width, with Nip Stand and Turret Winder

Laminating Line Components, 28 inch Working Width, with Nip Stand and Turret Winder

Description

  1. Overview
    1. Laminating line components
    2. Working width 28 in
  2. Laminating Nip Stand
    1. 30 in wide
    2. One 15.5 in diameter chrome hot/cold roll
    3. Two 6.5 in diameter rubber nip rolls mounted above and to the side of main chrome roll with manual pressure adjustment
    4. One 11.5 in diameter bottom roll with pneumatic pressure
    5. Two 3.5 in diameter idler rolls
    6. Missing one valve to tighten pressure on one side
  3. Turret Winder
    1. Innovative Equipment Innowind turret winder, model 2626
    2. Approximately 32 in wide x 26 in diameter rolls
  4. Condition
    1. Above equipment appears in very good condition
  5. Specifications
    1. Working width: 28 inches
    2. Bottom roll diameter: 11.5 inches
    3. Chrome roll diameter: 15.5 inches
    4. Laminating nip stand width: 30 inches
