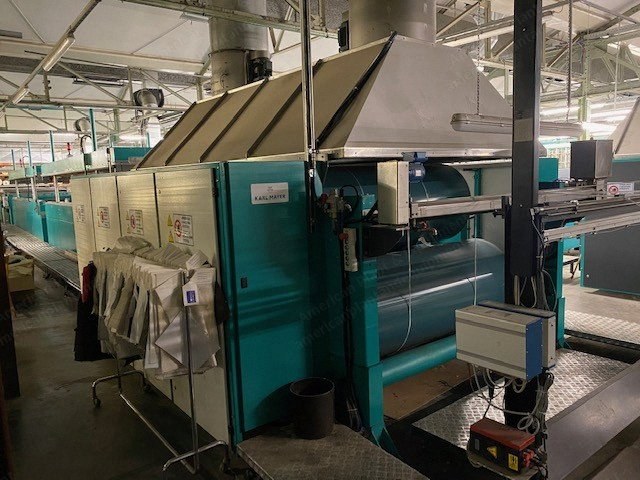

Karl Mayer, Filsize-S-F-1800, 2018, Working Width 1800mm, Speed 500m/min, Heating 220kW

Karl Mayer, Filsize-S-F-1800, 2018, Working Width 1800mm, Speed 500m/min, Heating 220kW

Description

  1. Overview
    1. Single-end sizing unit Karl Mayer Rotal type Filsize-S-F-1800
    2. Year 2018
    3. Working width 1800 mm
  2. Unwind and Tension Control
    1. Single warp beam unroll device
    2. The beam is driven by a motor and the tension is continuously controlled by a drum with a pressure cell
    3. Tension 600 N
    4. Min./max. diameter 300/1040 mm
  3. Beam Handling
    1. Automatic diameter detection, motorised adjustable beam supports
    2. Hydraulic beam insertion and lift out system
  4. Sizing and Drying
    1. Sizing bath type MPF for filament, cooling device for the water-cooled sections
    2. 2 air dryers type FA 6M (hot air convection dryer)
    3. Separation of humid air by means of electric air aspiration
    4. Dryer type CD-F-7 with 7 dry cylinders all teflon coated
    5. Waxing unit
  5. Technical Specifications
    1. Heating 220 kW
    2. Air temperature 180 °C (12 bar)
    3. Water consumption 370 kg/h
    4. Air circulation 8000 m³/h @ 180 °C
    5. Additional heater Laserstop for yarn rupture
    6. Speed 500 m/min
  6. Beaming and Control
    1. Beaming type BD
    2. Beaming head, command by Kamcos Karl Mayer system
    3. Length measurement
