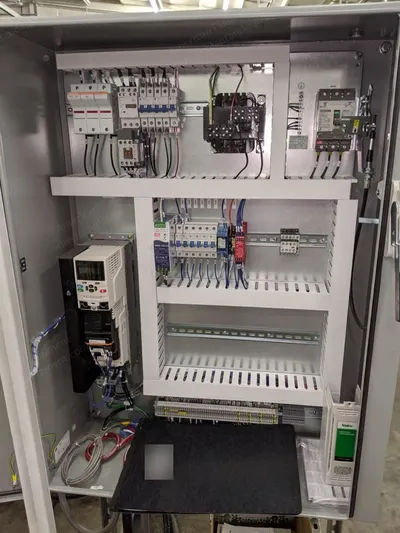

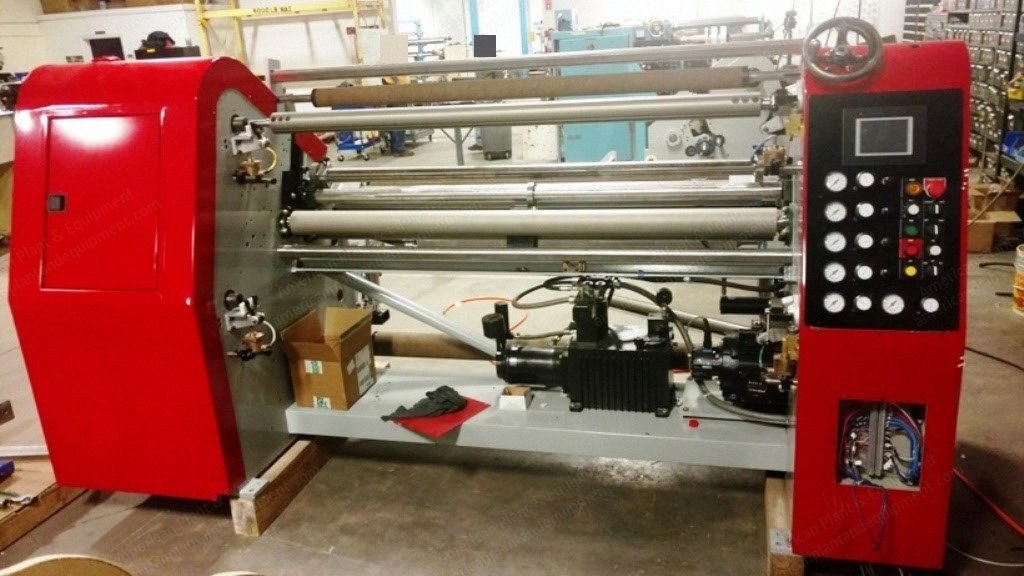

Description Overview Dusenbery Model 635 BL Width 62” Rebuilt to our level 4 option Duplex rewind with core spacer differential rewind tension control Maximum speed is 500 fpm Rewind Specifications Maximum rewind diameter of 24” without top riding rolls With top riding rolls is 21” 3” aluminum rewind mandrels Cork covered pull rolls Slitting can be either razor or shear cut Unwind Specifications Equipped with a 32” diameter integral unwind with automatic edge guide control for edge guiding Standard pneumatic air cooled brake Also a 3” unwind shaft Drive and Controls Equipped with a new 7.5 HP AC vector drive (480 V) and controls to operate as a standard Dusenbery 635 A HMI will be provided for entering footage, line speed and actual footage A speed potentiometer will be used for setting the line speed The drive control enclosure houses the main drive and all associated controls, relays and associated wiring The drive cabinet is a NEMA 12 class enclosure The control logic is performed using a PLC A system wiring schematic and drive manual is provided Included Items Price is not including special parts like slitting knives and holders Image
