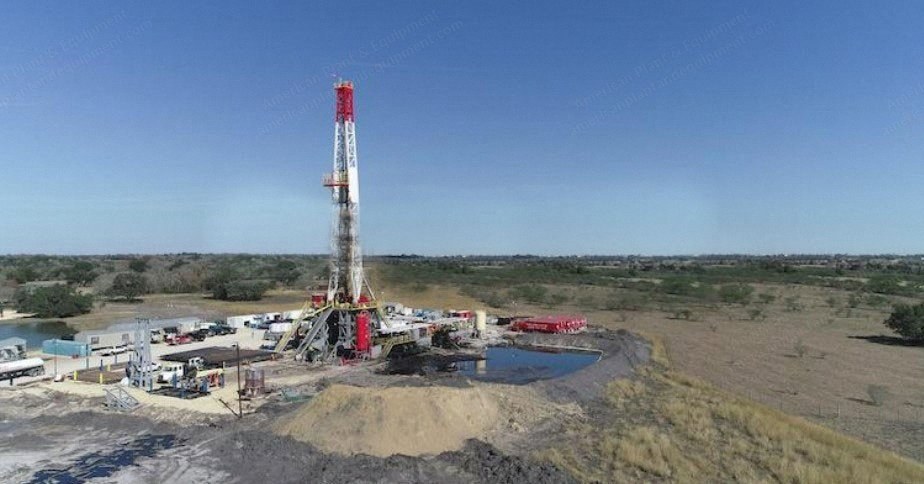

Description Overview 2000 hp electric complete working rig Drilling rig 2000 hp Year 2016 Type: used Condition: good Drawworks Oime 2000 with 2 - GE 752 DC motors Grooved for 1 -3/8 in drill line Wichita 336 water cooled auxiliary brake Derrick DSI 150 ft high, cantilever mast 1,000,000# static hook load capacity Substructure DSI with 1,000,000# casing capacity and 600,000# setback capacity 26 ft rotary beam clearance 30 ft high box on box type Pumps 3-Weatherford MP-16 type 7 1/2 in x 12 in triplex powered by 2-752 DC motors each - 7500 psi working system Low pressure mud mixing system with two 8 in x 6 in centrifugal pumps with 75 hp electric motors Drill String Drill pipe - 5 in 19.5# S-135 NC50 with 4 1/2 in IF connection Drill collars - 6 in - 6 1/2 in OD NC44 with hardband 8 in - 8 in OD 5 in H90 Pipe spinner: J29 Varco chain type Preventers 1- 13 5/8 in Hydril type annular WP 5000 psi 1- Schaffer style 13 -5/8 in 10,000 psi double rams 1-Shaffer style 13 -5/8 in 10,000 psi single ram 1- 4 in manual valve, 1- 4 in HCR valve, 2- 2-1/16 in valves and 1- 2-1/16 in check valve all 10,000 psi 1- CAD type M series, 5 station closing unit with 220 gallon capacity with remote Choke manifold-10,000 psi 4 in x 3 in with two adjustable 3 in choke (1 manual and 1 remote) Other Equipment NOV TDS-11 500 ton top drive with AC VFD house and 7500 psi working pressure Walking system with HPU Crown block - (7) 60 in sheaves Traveling block - Oilwell 500 ton Weight indicator - type D Rotary - 37 1/2 in x 500 ton Fuel tank with lubester - trip tank Wireline unit -.092 line Mud tanks - two tank system, round bottom, 1000 bbl with electric agitators plus slugging tank Shakers - 3 x Derrick 504 type linear motion Desander - Swaco, (2) 12 in cones with Mission Magnum 5 in x 6 in centrifugal pump with 40 hp electric motor Desilter - Swaco, (12) 4 in cones with Mission Magnum 5 in x 6 in centrifugal pump with 40 hp electric motor Degasser - Swaco OFI - automatic driller and monitoring equipment Drill water tank
