This offer comprises one of two Siemens SGT-800 turbine generator sets for sale

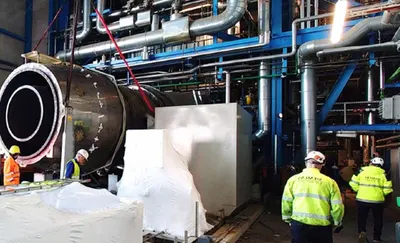

Both sets have been used for energy generation and were dismantled and packed professionally by Siemens in March 2022
Both sets are in excellent condition and ready for immediate transport, as being mounted on steel frames and stored in containers
This 45 MWe GT-gen was regularly maintained according to Siemens standards
Last recorded operating hour was approximately 112,000 EOH
Documents of the full maintenance history are available; no major incidents were reported

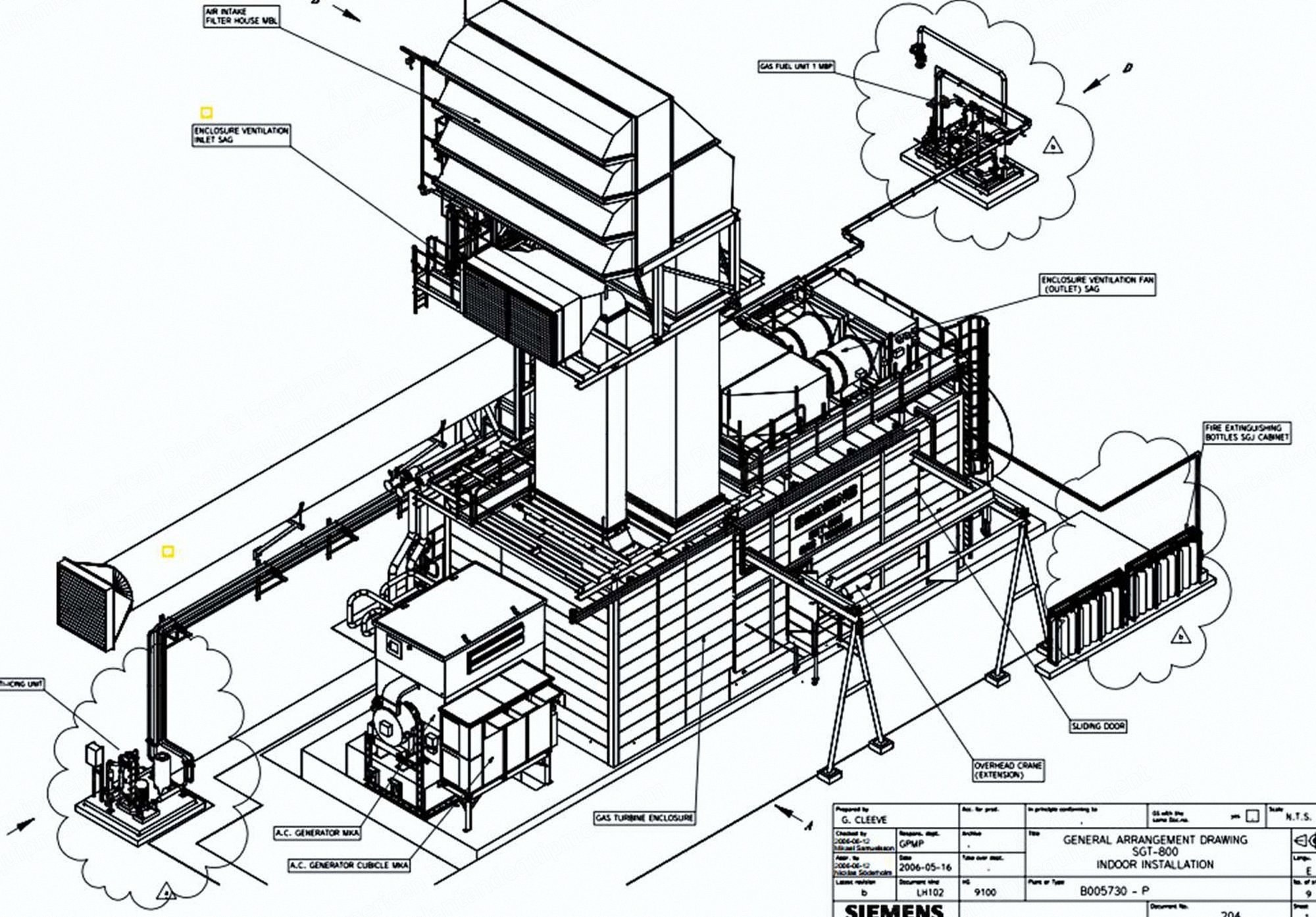

This offer is SGT-800 classic package, i.e. the GT and gearbox are placed on a single base frame

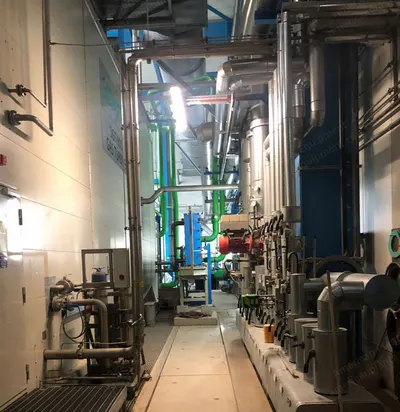

The mechanical auxiliary systems are mounted on a separate skid placed close to the gas turbine inside the enclosure
This way, the set can be easily transported and installed at a new site
Item / Type / Layout
Gas turbine generator set with Siemens SGT-800
Typical usage: flexible loads possible including base load operation in a CCGT
Special features: big spare parts storage, main parts all by OEM Siemens
Status: decommissioned in March/April 2022, 112,000 EOH
Availability for relocation: immediately ready for transport; unit has been professionally dismantled by Siemens and is well stored indoor in a warehouse
Key Figures
Main fuel type: unit was operated with natural gas (conversion to dual fuel possible: liquid and gas fuels)
Grid connection: 50 Hz, variable voltage levels possible (subject to step-up power transformer; not included)
Unit size: 550 m² (approx., indoor space required)
Year of commissioning / year of last retrofit: 2008
Last overhaul: level B inspection at 100,000 EOH (full track record of maintenance reports available)
Major upgrades / events: none / no major incidents reported
Operating Figures
Max. generation capacity: 45 MWe (approx., at full load)
Fuel quality: natural gas (calorific value is usually 12 kilowatt hours per cubic meter)
Fuel consumption at full load heat rate 9,147 kJ/kWh (8,670 BTU/kWh)
Type of cooling: air cooling
Technical Figures of Main Components
This power unit for sale comprises a 50 MW gas turbine, an approximately 50 MVA generator with a gear box, the original control system and many spare parts
Control and communication system: Siemens PCS-7 for main system
ABB for generator exciter
Additional Information

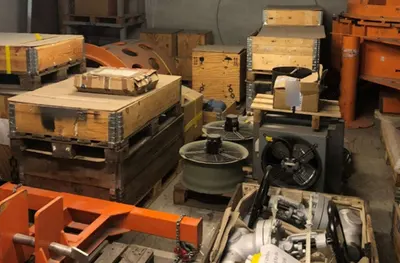

Spare parts: all spare parts available as kept by the former operator
Some spare parts are included in this offer
Other main spare parts such as hot-pass blades and vanes of stages 1, 2, 3 (used), new combustion chamber, new bearing set for gearbox, new bearing set for generator and special large tools for opening of turbine can be bought separately
Documentation
All equipment documentation
All operating instructions
All maintenance reports
Condition
Marketing service fee: will be paid by the seller
Dismantling of unit: ready for immediate transport - entire unit is already dismantled and packed
