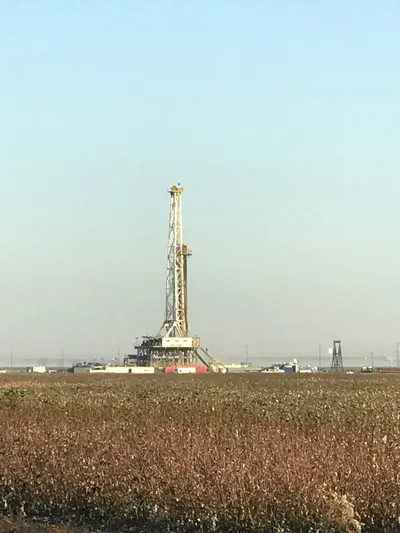

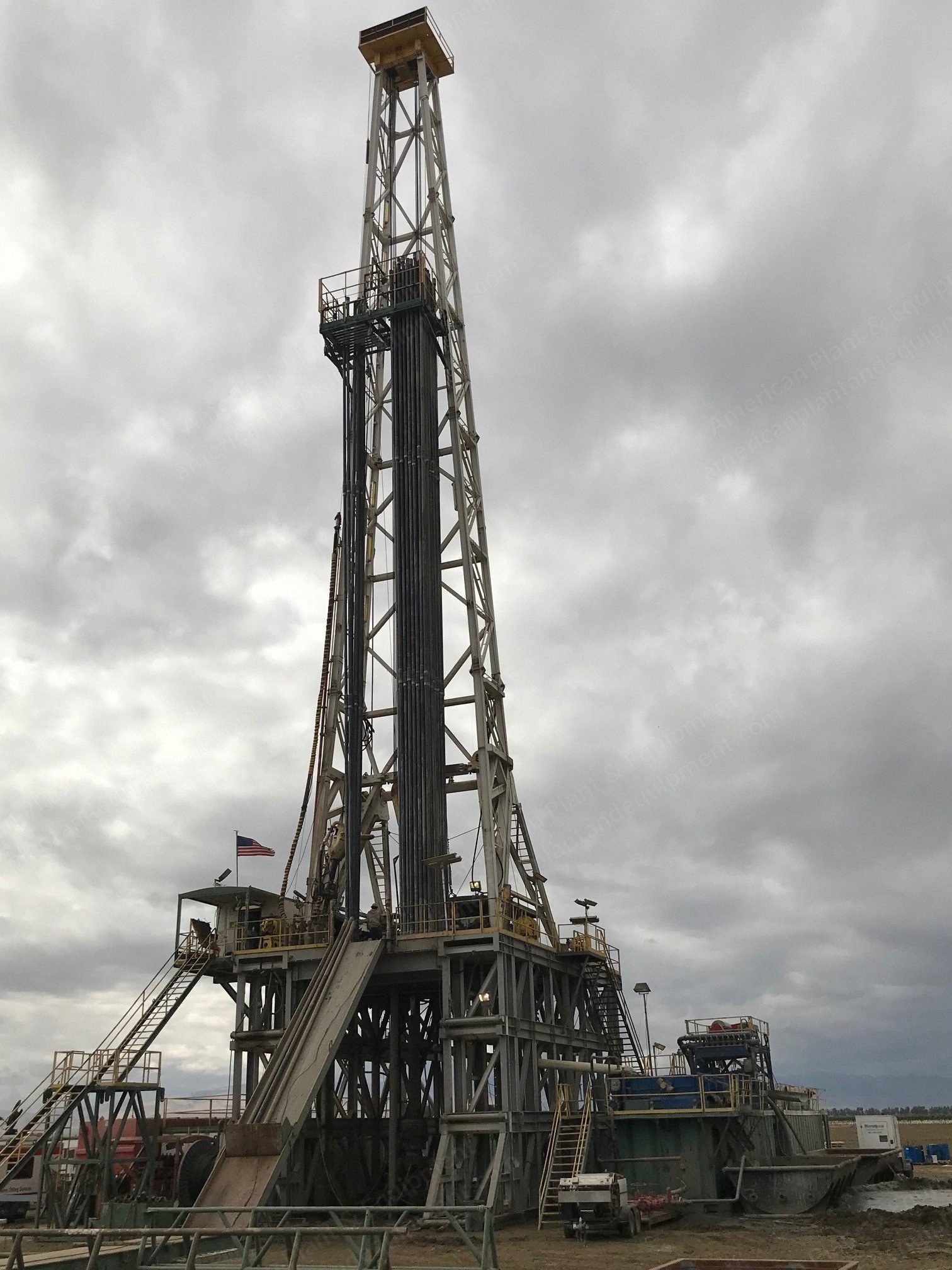

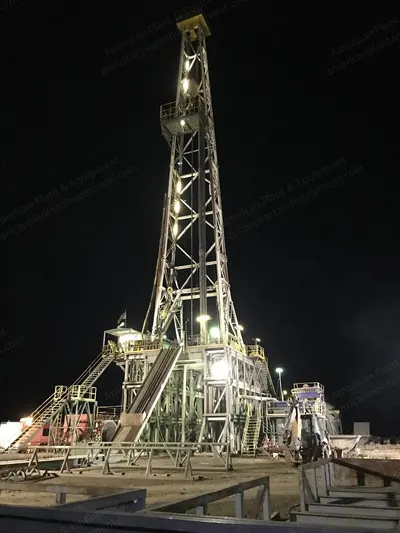

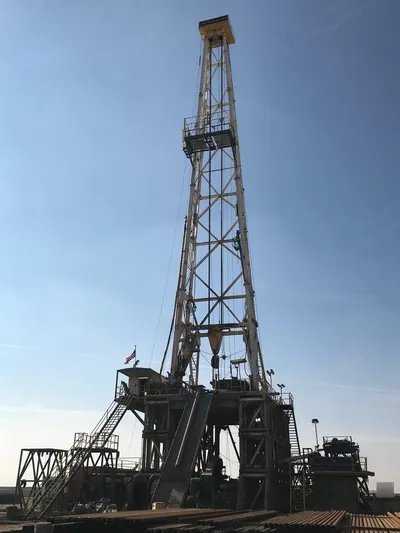

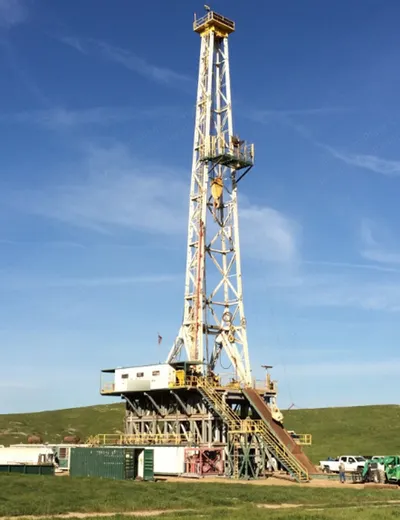

Gardner Denver, 800M, Oil Drilling Rig, 1000HP, 142 ft Mast, 850000 lbs Hook Load

Gardner Denver, 800M, Oil Drilling Rig, 1000HP, 142 ft Mast, 850000 lbs Hook Load Sold

Description

  1. Overview
    1. One single machine
  2. Drawworks
    1. Gardner Denver 800m single drum with 1 3/8” grooving rated for 1000 input horsepower
    2. With two engine compound
    3. Powered by (2) car c-18 acert, epa tier 3 engines with 195-100 owi torque converter
    4. Hydromatic brake

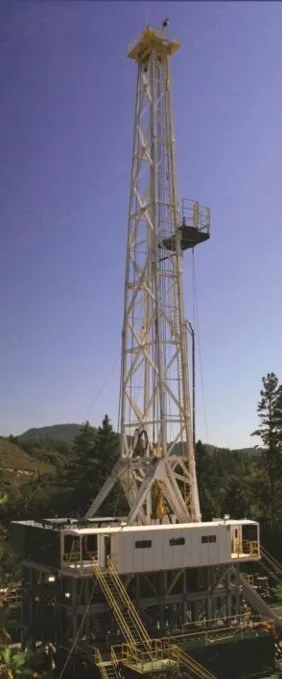

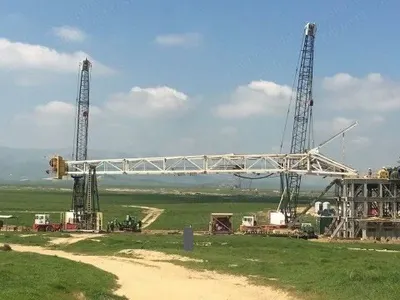

  3. Mast
    1. Osi 142’ x 25’ beam leg mast with 850,000 static hook load capacity
    2. Mast certified by ids

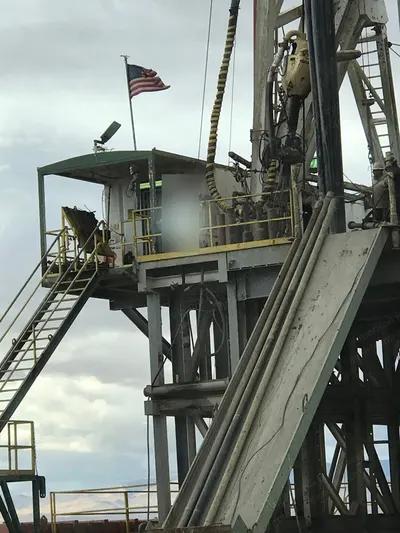

  4. Sub-Structure
    1. 27’ tall box consisting of 3 x 9’ subs, with clear height under rotary beams of 25’
    2. Rated maximum rotary load 750,000 simultaneously with 400,000 dp setback
  5. Mud Pumps
    1. (2) weatherford mp-13 triplex mud pumps (emsco type) rated for 1300 hp
    2. Powered by (2) caterpillar 3512 acert epa tier 2 engines, rated at 1435 hp with owi torque converters

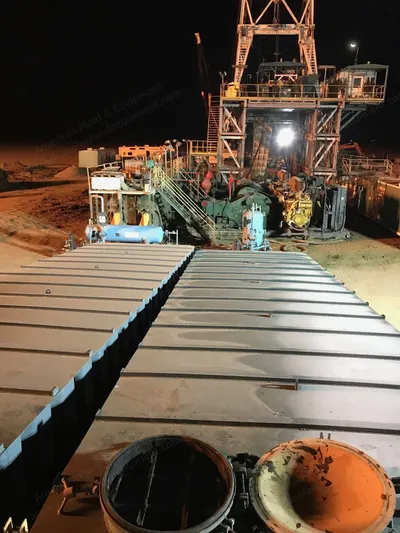

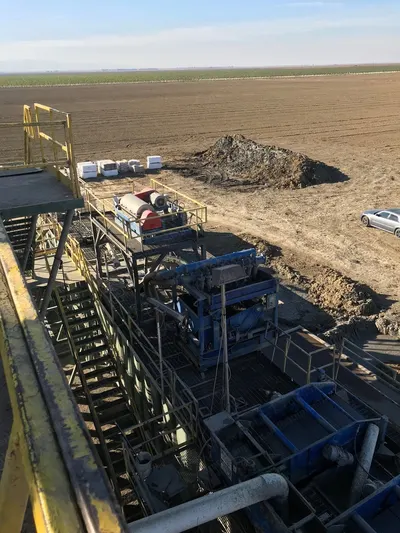

  6. Mud System
    1. (2) pits with 1000 bbls total capacity
    2. Suction pit with 500 bbls capacity 10’ wide x 8’ high x 40’ long
    3. Complete with (2) 6” x 8” mission centrifugal pumps driven by 100 hp electric motors, mud hopper, (6) 10 hp mud agitators, gun lines, completely covered in grating with hand rails
    4. (1) shaker pit with 500 bbls capacity, 10’ x 8’ high x 10’ long with sand trap, completely covered in grating with hand rails
    5. (2) derrick linear motion shaker
  7. Rotary Table
    1. (1) sj-petro 37 ½” rotary table, complete with master bushings and locks
    2. Rotary table is chain driven from draw works
  8. Traveling Blocks
    1. (1) ideco 480 ton big shorty hook/block combination rated at 480 tons ap with 6 x 50 sheaves grooved for 1 3/8” wire line
  9. Drilling Line
    1. (1) 1 3/8” x 5000’ eips 6 x 9 iwrc, usa manufacture
  10. Swivel
    1. (1) emsco lb-500 rotary swivel rated at 500 tons api with quick change packing assembly
  11. Kelly & Bushings
    1. (1) 5 1/4” x 45’ hex complete with pin drive bushings and hex rollers, with 6 5/8” reg lh box and 4 1/2” if pin
    2. Upper and lower kelly safety valves
    3. (1) owl 1500 kelly spinner, pneumatically powered
  12. Air Winches
    1. (1) ir k6ul rated at 10,000 lbs, complete with muffler
    2. (1) ir k5ul rated at 5,000 lbs, complete with muffler
  13. Accumulator
    1. (1) type-80 (koomey style) 5 station 176 gallon accumulator, complete with (1) triplex and (2) air operated pumps
    2. Us manufactured complete with all valves, gauges and annual regulator and (6) nitrogen back-up
  14. Air Compressors
    1. (2) sullivan-palatec 250 rotary screw air compressor with 25 hp electric motor and tank
  15. Generators
    1. (2) caterpillar c-15 acert epa tier 3, 455 kw, 480 volt ac generators mounted in (1) 10’ wide x 8’ wide 40’ long generator house complete with all control panels and plugs
  16. Water Tank
    1. (1) 500 bbls open top tank with 3” x 4” x 11” centrifugal pumps with 20 hp electric motors

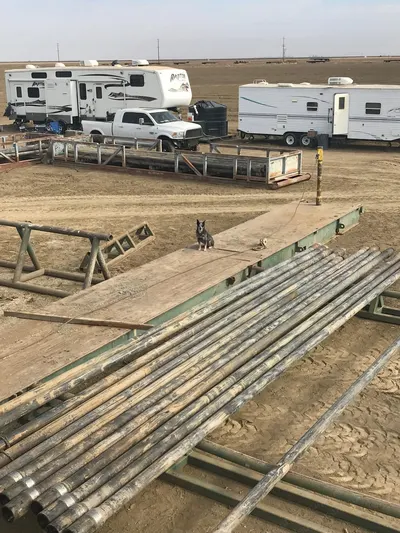

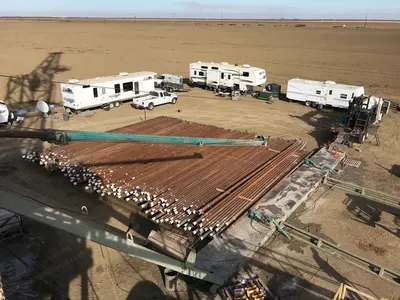

  17. Tubulars
    1. 4-1/2” or 5” drill pipe
    2. 6-1/2”, 8” & 9” collars are available as required by the operator
