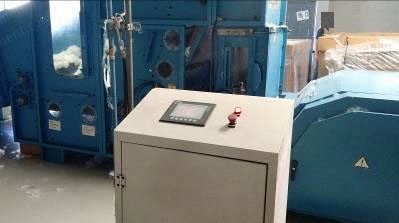

Machine is controlled by PLC with touch screen interface.
Designed for quantitative filling of pillows, cushions, and similar products.

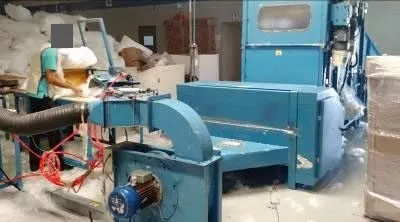

Automatic bagging fixture saves labor costs; one operator can handle two filling slots.

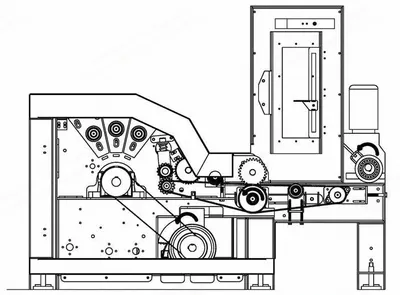

Opening section uses multiple rollers, self-lock wire wrapping, small anti-wrap roller, and metal alarm function.
Filling blower uses frequency control for smooth, full, high-resilience filling.
Production management system automatically counts daily and monthly output.
Specifications
Product name: Computerized pillow machine.
Capacity: 180 to 300 kg/h.
Dimensions: 8750 x 3600 x 2200 mm.
Voltage: 220 V / 60 Hz / 3 phase.
Air pressure: 0.6 to 0.8 MPa.
Power: 16.7 kW.
Weight: 4800 kg.
Condition and Documentation
Operation manual included; covers installation, debugging, operating precautions, and troubleshooting.
Manual must be read thoroughly before installation and preserved for users.
Manual may change without notice; copying without permission is not allowed.
Safety instructions provided: do not open outer cover while machine is running or powered; keep hands and body clear; do not operate with wet hands; only qualified personnel should repair; turn off power and air supply when not in use; machine must be grounded; daily cleaning requires main power and gas supply cut off and machine completely stopped.
Suitable for siliconised polyester staple fiber with length shorter than 100 mm.
Iron nails, small stones, and other small pieces must not be put into the machine.
Included Components
Blower.
Two nozzles.
Operation manual.
Storage box for bale opener.
Sloping nails belt.
Fiber opening machine.
Material outlet box.
PVC tube (diameter: 150 mm) for connecting material outlet box to filling blower.
Clamping operation table.
3-way device.
PVC tube (diameter: 125 mm) for connecting 3-way device to filling fixture.
Operation Modes
Auto mode: for quantitative filling; exchange short filling pipe of 250 mm length; press F1 to enter auto mode page; set parameters in production formula page (A filling time, B filling time, etc.).
Manual mode: for special products such as very sturdy or sub-grid filled products.
Test mode: for installation, debugging, and maintenance; allows separate starting of various functional parts.
Troubleshooting page guides exclusion of common faults.
Production management automatically counts daily and monthly output.
Touch Screen Pages
Head page and feature key settings.
Auto mode page.
Manual mode page.
Troubleshooting page.
Production recipe management page.
Production statistics page.
Photo switch delay time page.
Test mode page.
