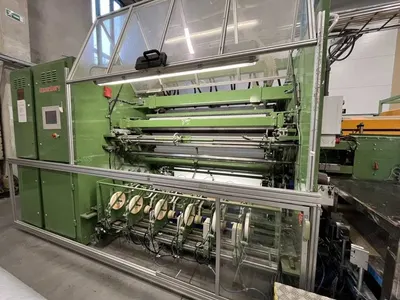

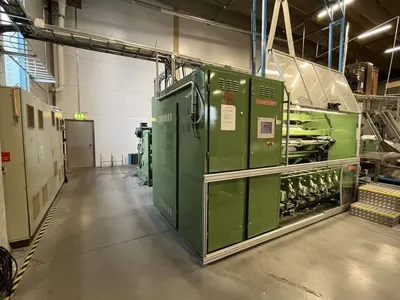

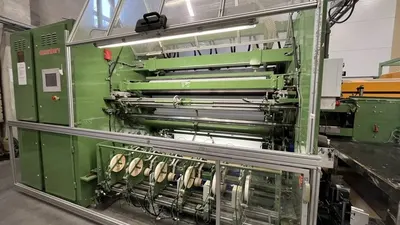

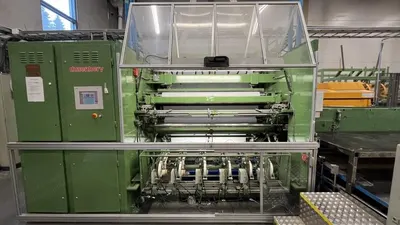

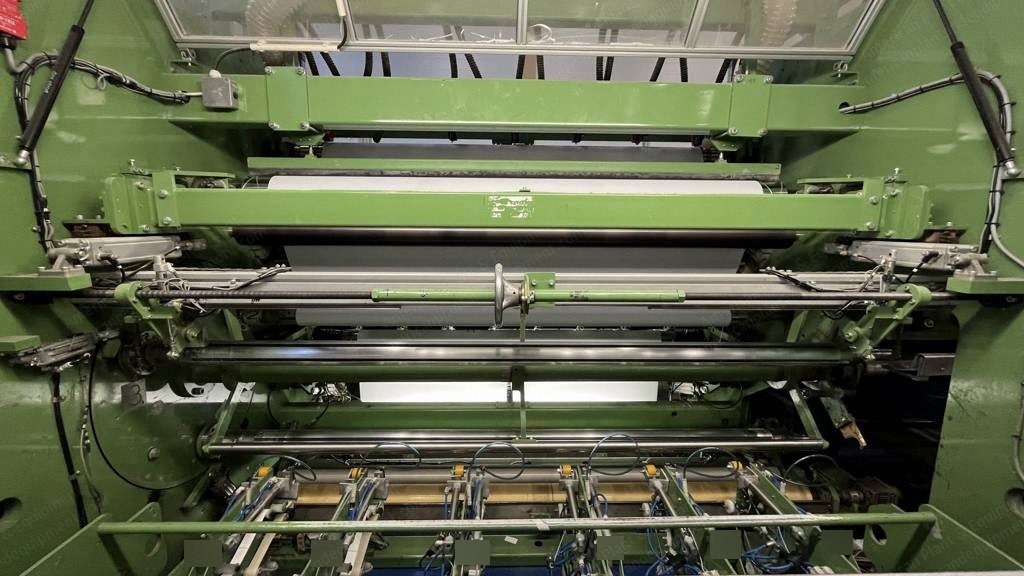

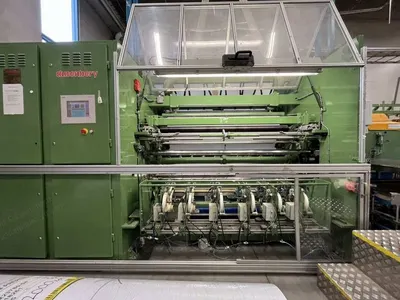

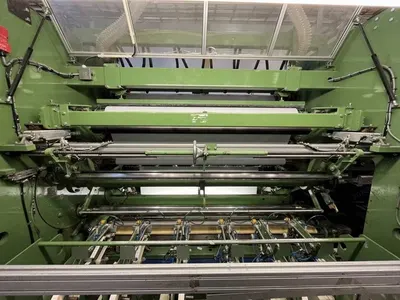

Dusenbery, Model 375, 2000, 1920mm Max Web Width, 600 MPM, Paper Converting

Dusenbery, Model 375, 2000, 1920mm Max Web Width, 600 MPM, Paper Converting

Description

  1. Overview
    1. Machine is produced by Dusenbery Europe Ltd.
    2. Year 2000

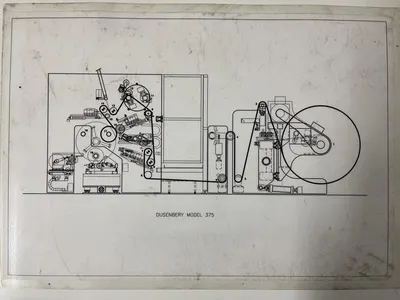

    3. Specification for model 375
    4. Machine is only for paper converting
    5. Converts from 60 to 180 gsm paper
    6. For machine loading needs 20 and 40 foot containers

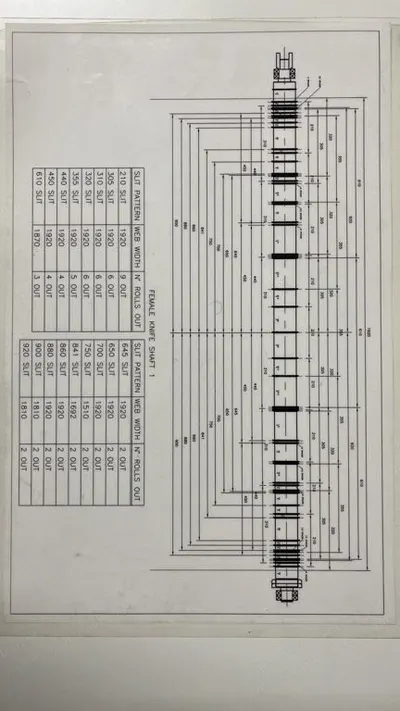

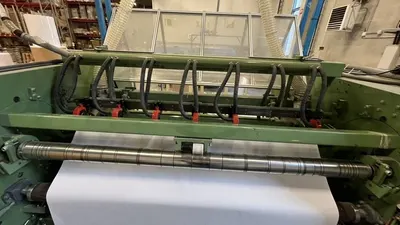

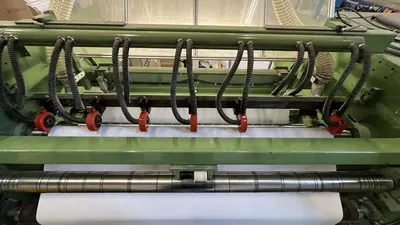

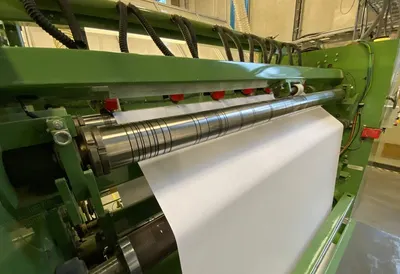

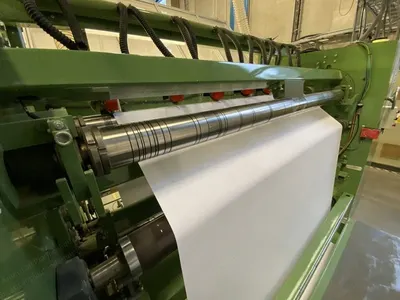

    7. There are 7 upper knives on the machine
  2. Machine Parameters
    1. Minimum web width: 900 mm
    2. Maximum web width: 1920 mm
    3. Maximum rewind diameter: 300 mm
    4. Rewind core diameter: 50 / 76 mm
    5. Minimum core length: 210 mm
    6. Maximum core length: 920 mm
    7. Maximum machine speed: 600 mpm

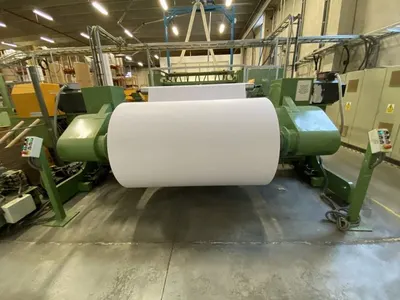

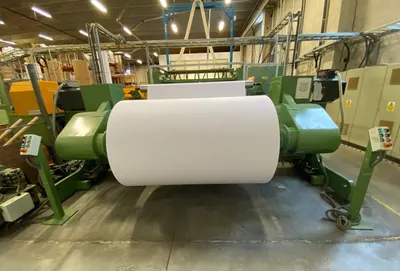

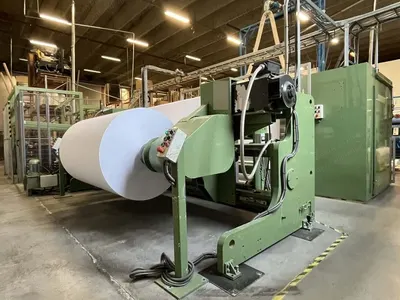

    8. Maximum unwind diameter: 1500 mm
    9. Minimum unwind core length: 900 mm
    10. Maximum unwind core length: 1920 mm
    11. Unwind core diameter: 152 mm
    12. Maximum mill roll weight: 2500 kg
    13. Maximum edge guide movement: +/- 50 mm
  3. Machine Supplies
    1. Electrical supply: 380/415 ~ 3ph ~ 50 Hz
    2. Control voltage: 24 VDC
    3. Signal voltage: 24 VDC
    4. Pneumatic supply (pressure): 6.5 bar

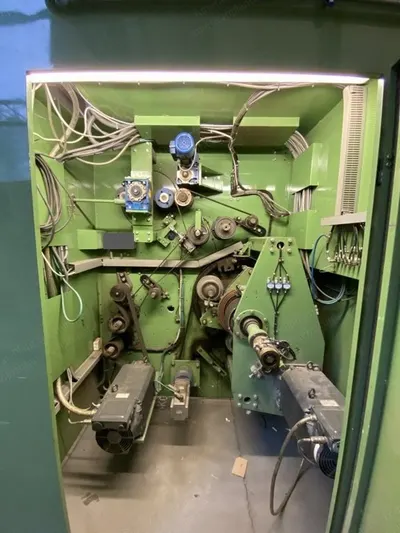

  4. Main Drive Specification
    1. Motor: Siemens
    2. Type: YF-MD10-3798-01
    3. Kilowatt rating: 25 kW
    4. RPM: 1750 rpm
    5. Volts: 357 V
    6. Amps: 56 A

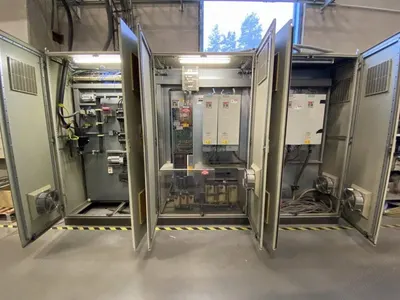

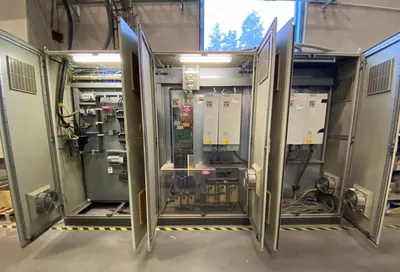

    7. Drive control type: Siemens 6SE7026-OTD61-G11
  5. Rewind Drive Specification
    1. Kilowatt rating: 13.5 kW
    2. Volts: 400 V
    3. Amps: 29 A
    4. Drive control type: Siemens 6SE7023-4TO61-G11
  6. Unwind Drive Specification
    1. Motor: Siemens
    2. Kilowatt rating: 21.2 kW
    3. Volts: 400 V
    4. Amps: 68 A
    5. Drive control type: Siemens 6SE7027-2TD61-G11-K11
  7. Turret Drive Servo
    1. Motor: Siemens
    2. Type: 1FK 6063-6AF71-1
    3. RPM with resolver: 3000
    4. Volts: AC
    5. Amps: 10.2 A
    6. Drive control type: Siemens 6SE7021-OEP50-Z
  8. Unear Wrap Servo
    1. Motor: Siemens
    2. Type: 1FK6042-6AK71-1
    3. KPM with resolver: 3000
    4. Volts: DC
    5. Amps: 4 A
    6. Drive control type: Siemens 6SE7014-OTP50-Z
  9. Rotary Wrap Servo
    1. Motor: Siemens
    2. Type: 1FK6032-6AK7I-I
    3. RPM with resolver: 6000
    4. Volts: DC
    5. Amps: 2 A
    6. Drive control type: Siemens 6SE7021-OTP50-Z
  10. Unload Servo
    1. Drive control type: Siemens 6SE7021-OTP50-Z
  11. Ancillary Equipment Ratings
    1. Main motor fan: 400 V ~ 0.25 A
    2. Rewind motor fan: 400 V - 0.25 A
    3. Unwind chucking motor: N/A
    4. Unwind lift motor: N/A
    5. Brake cooling fan: N/A
    6. Hydraulic power pack: 2.2 kW ~ 4.9 A
    7. Edge guide power pack: 0.37 kW - 0.84 A
    8. Knife trunnion motor: 0.18 kW ~ 0.73 A
    9. Left hand unwind motor fan: 1.4 A
    10. Right hand unwind motor fan: 1.4 A
    11. Trim extractor: N/A
    12. Conveyor drive: N/A
    13. Tail wind motor: 0.18 kW
  12. Specifications
    1. Serial number: 81633
