Take up tubes: cylindrical, max. length 290mm, min. basic dia. 43mm
Type of application: air covering / intermingling
5 winding units per section

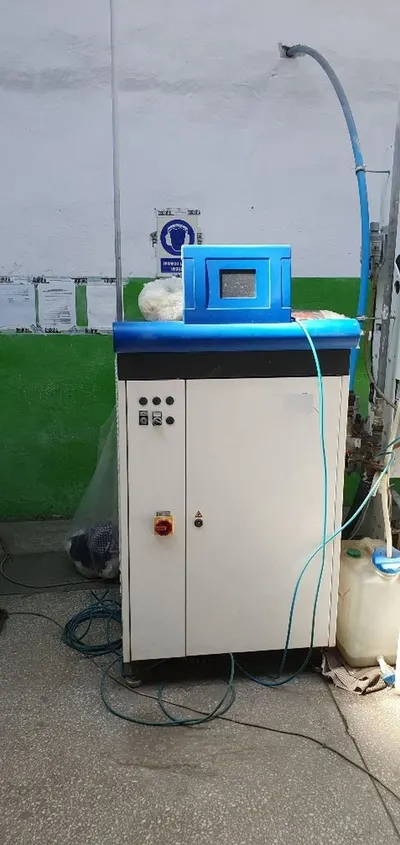

Head stock with machine terminal with touch screen
Individual control and drive of take-up speed by frequency inverter
Max mechanical speed 1200 m/min.
Digicone preciflex thread laying system by means of servo motor
Precision or digicone winding
Pneumatically controlled back pressure system for tailor-made packages
Tube holder for specific type of tube
Pneumatic winding bracket opener
Electronic length measuring system per spindle
Full package diameter stop per spindle
Internal creel for 1-ply, including yarn sensor per end
1 freely programmable overfeeding device positioned in front of the air jet for optimal control of yarn tension in the air covering / intermingling process
1 freely programmable overfeeding device positioned after the air jet for optimal control of take-up tension
Condition
Status: complete, in working condition
Available immediately. We can arrange inspection at any time.
