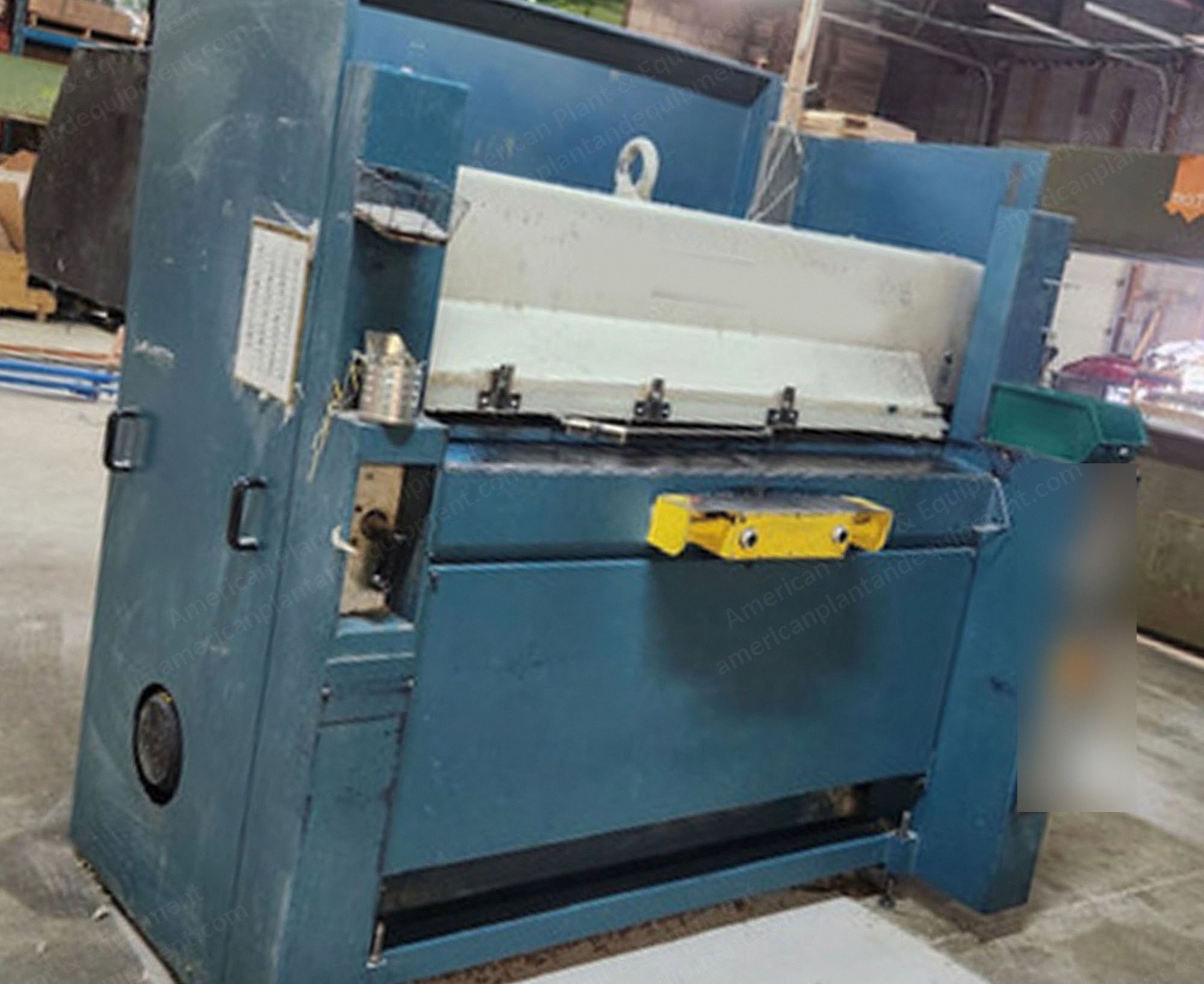

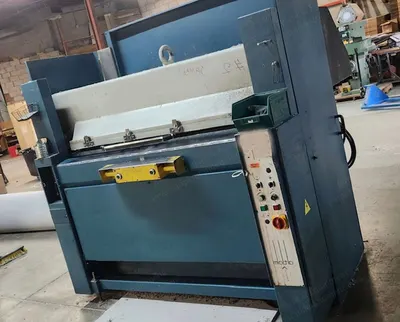

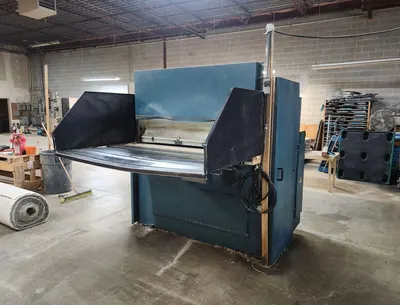

Atom, S358, Hydraulic Die Cutting Press, 50 Ton, 63x31 Inch Bed

Atom, S358, Hydraulic Die Cutting Press, 50 Ton, 63x31 Inch Bed

Description

  1. Overview
    1. Atom S358
    2. Used - good condition
    3. Floor standing
  2. Specifications
    1. Tonnage: 50 t
    2. Distance between guides: 65 in left-right
    3. Table area: 63 in left-right x 31 in front-back
    4. Cutting head area: 63 in left-right x 31 in front-back
    5. Stroke: approximately 0-10.5 in maximum
    6. Daylight opening (total): 12.5 in maximum
    7. Floor to top of bed: 47 in
    8. Power unit: hydraulic pump, driven by 5 hp motor
    9. Controls: pushbutton operation with stroke and pressure control
    10. Weight: approximately 9,000 lbs
    11. Overall dimensions: approximately 84 in left-right x 50 in front-back x 76 in height
    12. Weight: 4082
    13. Dimensions: 84x50x76 inches
    14. Stroke: 10.5 inches
    15. Daylight: 12.5 inches
    16. Table area: 63x31 inches
    17. Cutting head area: 63x31 inches
  3. Condition
    1. Used - good
  4. Included
    1. Hydraulic pump with 5 hp motor
    2. Pushbutton controls with stroke and pressure control
    1. Floor standing
