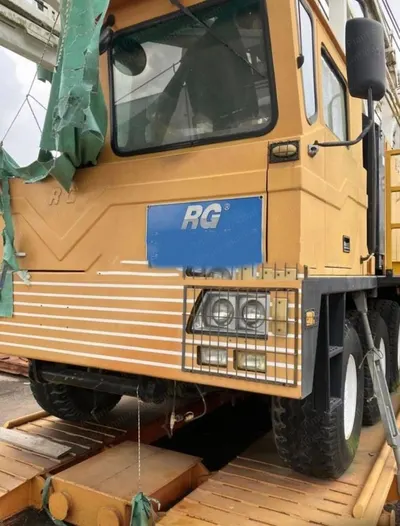

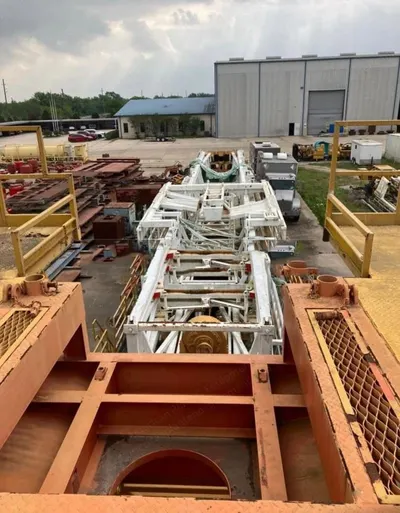

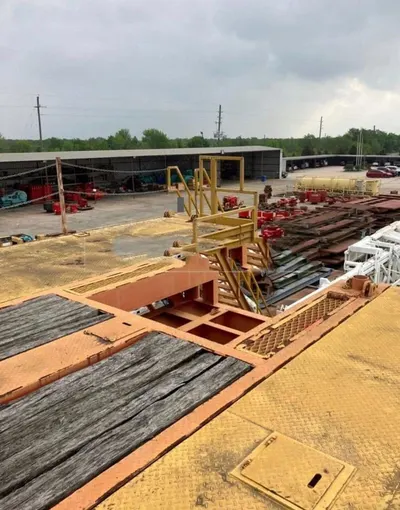

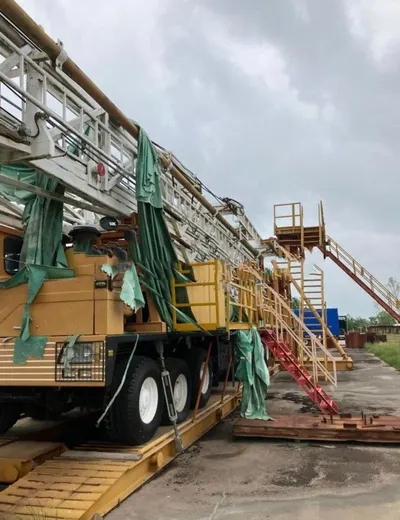

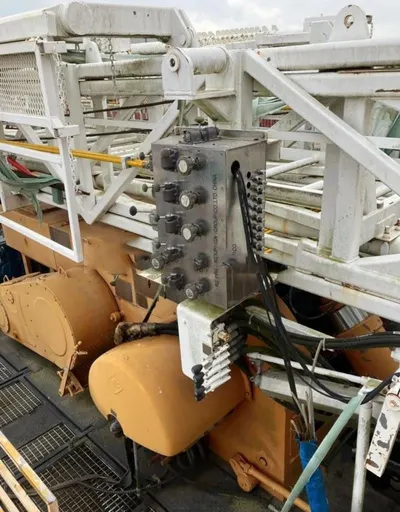

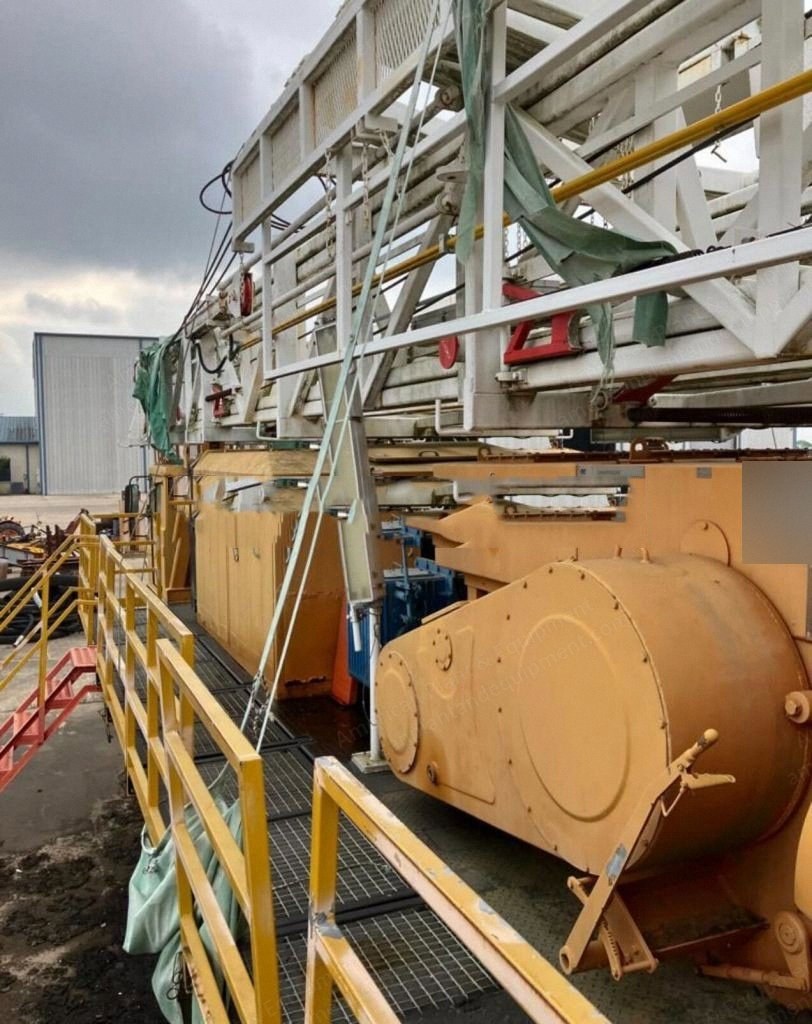

RG Petro, Carrier Mounted Drilling Rig, 2012

RG Petro, Carrier Mounted Drilling Rig, 2012

Description

  1. Overview
    1. Surplus rg-petro carrier mounted drilling rig
    2. Type: standard
    3. Brand: rg petro
    4. Category: rigs
    5. Subcategory: onshore rigs
    6. In stock: yes
    7. Type: unused
    8. Condition: excellent
    9. 2012 surplus unused 1000 hp rg-petro carrier mounted drilling rig
    10. 7-axle carrier mounted drilling rig
    11. All wheel drive
  2. Specifications
    1. Rated for 3000 meters with 4 1/2 in drill pipe
    2. Powered by 2 c-15 540 hp each caterpillar engines with allison transmissions
    3. Mast 125 ft x 400k hook load
    4. Sub height 9.6 ft
    5. Double drum, could be used for ultra heavy duty workover and side tracks
    6. Conventional braking system - no disc brakes
    7. Sub rotary table, block hook
  3. Features
    1. Truck-mounted drilling rig driven by diesel engine with reasonable power matching, high transmission efficiency, high reliability, compact structure, high degree of assembly and small footprint
    2. Self-made heavy-duty chassis, equipped with hydraulic power steering system, with good mobility, off-road and transverse stability
    3. Main brake adopts band brake or hydraulic disc brake, and auxiliary brake adopts pneumatic push-disc brake, pneumatic clamp disc brake or water brake
    4. Mast set with two sections at the front opening, tilting forward or standing upright, lifting and stretching of the hydraulic cylinder, and is equipped with wind guideline and anti-overturn guideline
    5. Rotary table drive system can realize the positive rotation, reverse rotation, suspension and disconnection of the rotary table, and is equipped with the reverse torque release device to ensure the safe release of the rotary table drilling string torque
    6. Drilling floor adopts the telescopic or spiral lifting structure, the floating platforms on both sides can be turned over, and the sledding can be hoisted and transported
    7. Table height, size, layout can be customized
    8. Perfect peripheral equipment of solid control, well control, high-pressure manifold, mud pump unit, oil and water tank, etc
    9. Can be matched arbitrarily or customized as required
