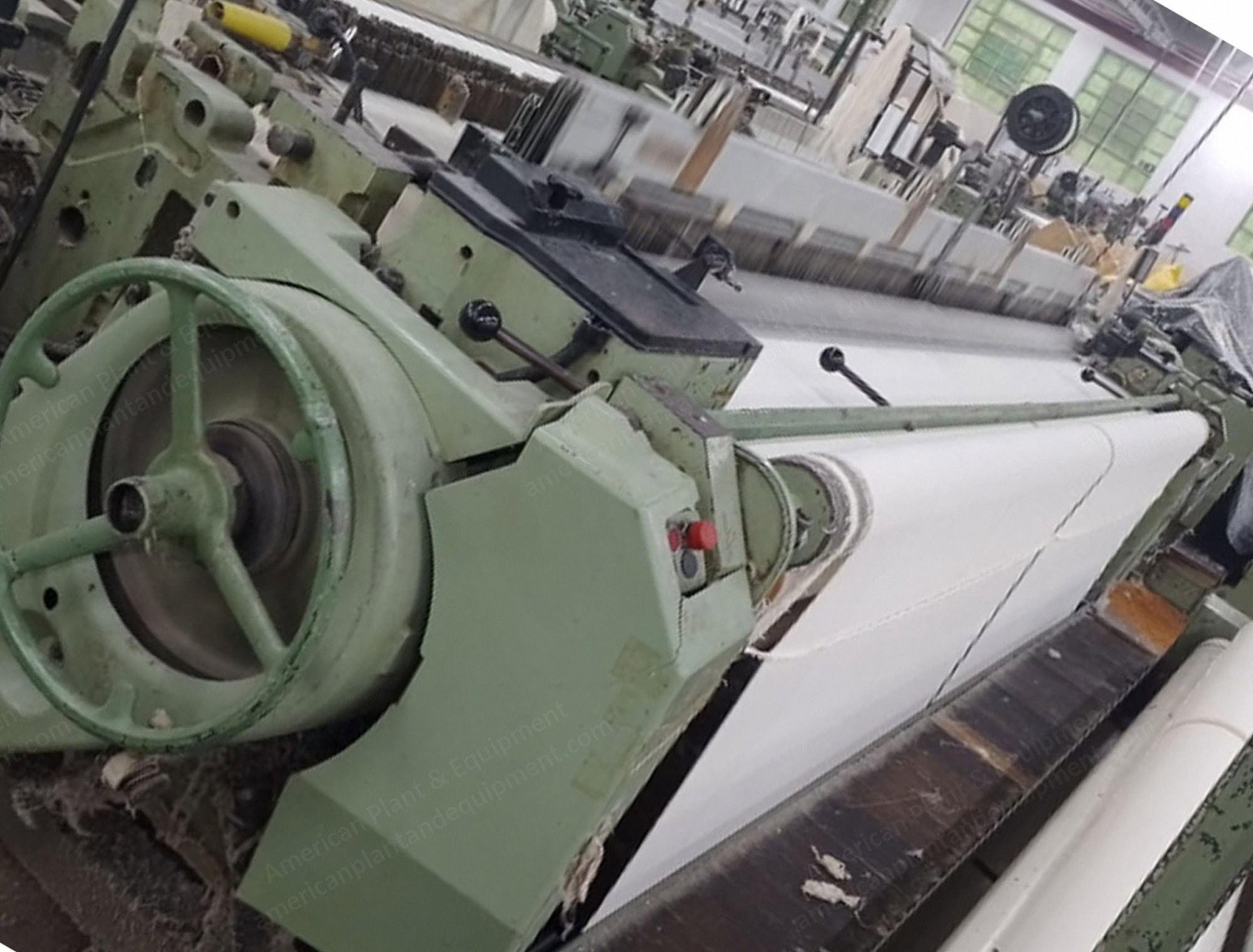

Sulzer Ruti, P7100 EP R D1, Projectile Loom, Working Width 3600mm, Cam Motion

Sulzer Ruti, P7100 EP R D1, Projectile Loom, Working Width 3600mm, Cam Motion

Description

  1. Overview
    1. Sulzer Ruti projectile P7100 EP R D1 loom
    2. Year: 1986 to 1991
    3. Weft insertion by projectile
  2. Specifications
    1. Working width: 3600 mm
    2. Working rpm: 260/280
    3. Split roller system
    4. Cam box for taffeta (1x1) and twill (3x1)
    5. 4/6 frames
  3. Winding System
    1. Tangential fabric winder: 6 looms
    2. Conventional fabric winder: 4 teares
    3. 3 rolls per loom with diameter 1000 mm
  4. Weft Accumulator
    1. 1 weft accumulator per loom
