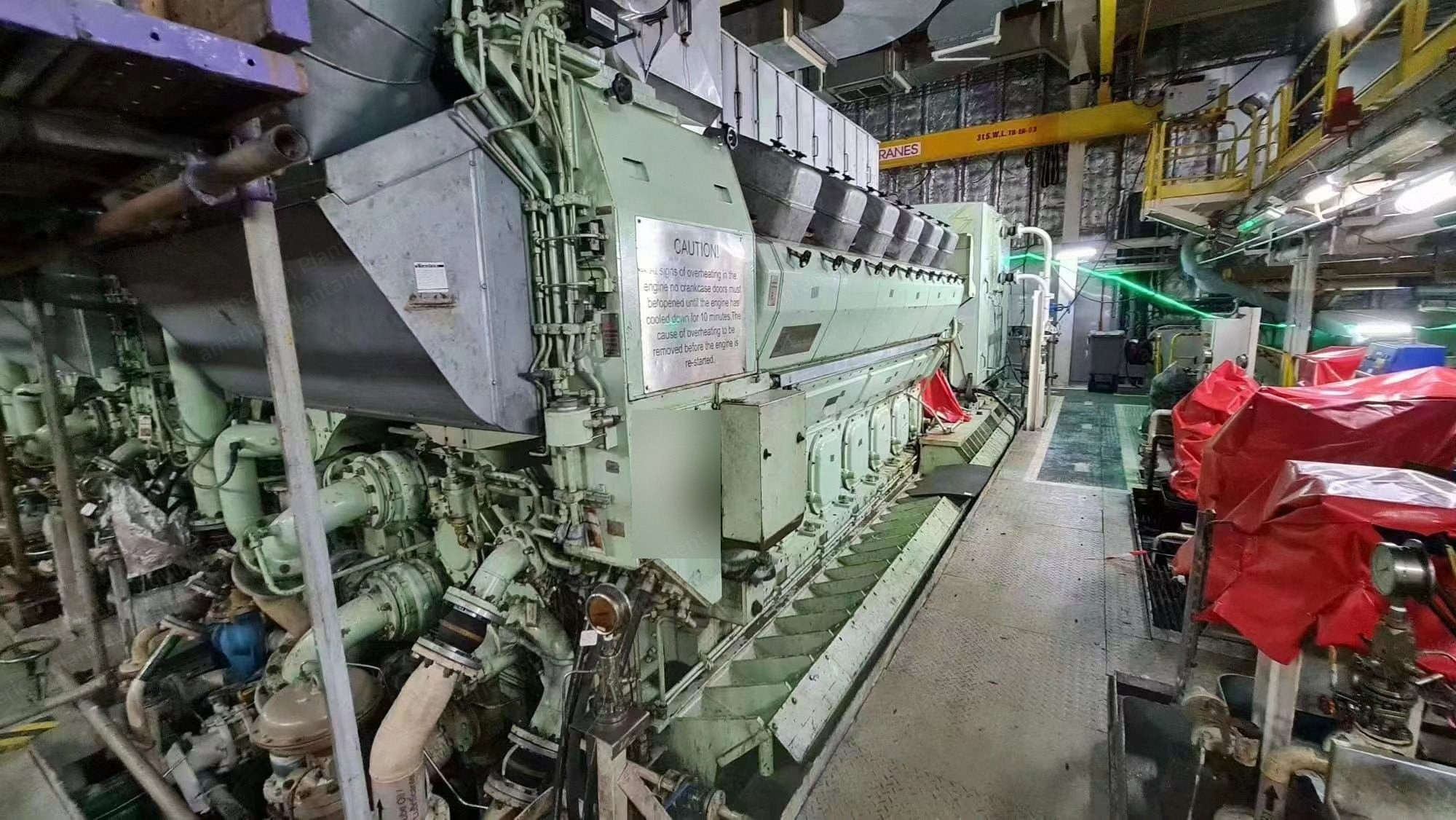

Rolls Royce, B32-40V12A, 2009, 5500kW, 60Hz, 11000V, Diesel Generator

Rolls Royce, B32-40V12A, 2009, 5500kW, 60Hz, 11000V, Diesel Generator

Description

  1. Overview
    1. Rolls Royce B32-40V12A
    2. Year 2009
    3. 10000 hours
    4. Fuel: diesel currently but can convert to HFO by adding HFO treatment module (not included)
    5. Quantity: 2
  2. Engine Specifications
    1. Number of cylinders: 12
    2. Cylinder bore: 320 mm
    3. Piston stroke: 400 mm
    4. Rated power (MCR), engine: 5765 kW
    5. Rated active power, generator: 5535 kW
    6. Generator efficiency: 0.96
    7. Rated output, electric with cos (phi) = 0.8: 6920 kVA
    8. Mean effective pressure: 24.9 bar
    9. Rated speed: 720 rpm
    10. Mean piston speed: 10 m/s
    11. Displacement: 386 L
  3. Fuel Oil Data
    1. Specific fuel consumption: 183 g/kWh
    2. Fuel consumption at MCR: 1275 L/h
    3. Fuel feed pump capacity: 4960 L/h
    4. Daytank, 24 hrs operation: 31 m³
  4. Nozzle Oil Data
    1. Nozzle oil: SAE 40
    2. Pressure normal (± 0.2): 2 barg
    3. Alarm, pressure low: 1 barg
    4. Temperature normal (± 5): 90 °C
  5. Start Air Data
    1. Start air pressure max/min: 30/20 barg
  6. Condition
    1. The unit is in place, the equipment is complete and can be started for testing.
  7. Included Electrical Equipment
    1. Gas turbine: T130, 2 sets, full set of configuration
    2. Boiler: medium pressure 3.82/low pressure 0.6, 2 sets, including out-of-stock equipment
    3. Compressor: 1700 kW, 2 units, including soft start cabinet, bypass cabinet, excitation cabinet, electric control cabinet, DCS cabinet
    4. Feedwater pump: 132 kW, 1 unit, including 1 inverter, model 6SE7032 132 kW
    5. Circulation pump: 37 kW, 2 units
    6. Spray pump + 2 fans: 5.5 + 2 × 5.5 kW, 2 sets
    7. Boiler power cabinet: 2 units
    8. Denitrification fan: 11 + 7.5 kW, 2 sets, one set contains 2 fans, power 11 + 7.5 kW
    9. Air compressor: 37 kW, 1 unit
    10. Nitrogen compressor: 15 kW, 1 unit
  8. Specifications
    1. Voltage: 11000 V
    2. Capacity: 5500 kW
