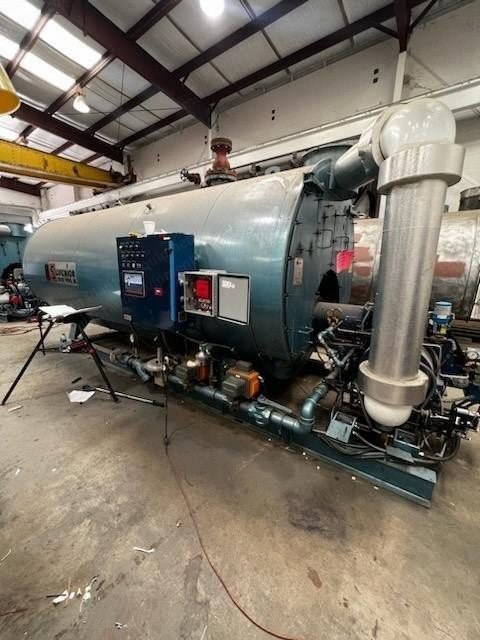

Superior, 250 HP, 2008, 8625 lbs/hr, 150 psi, Natural Gas and #2 Fuel Oil
Scroll to zoom
100%
Description
Overview
Superior packaged 250 hp 3-pass wet boiler
Year built: 2008
Design pressure: 150 psig/steam
Operating pressure: 135 psig or less
Capacity: 8,625 lbs per hour steam (from and at 212 degrees f.)
Fuel: natural gas and #2 fuel oil
Electrical: 460 volts
Trim Included
Combination water column with low water cutoff, feed pump control switches, water gauge glass and drain valve
Auxiliary low cutoff warrick probe in shell
Electric modulating feedwater controls with valve
Pressure gauge 8 ½” diameter 0 to 300 psig
Stack thermometer
Safety relief valves
Blow down valves (2) quick opening
Blow down valves (1) slow opening
Operating pressuretrol (1)
High limit pressuretrol (1)
Low fire hold pressuretrol (1)

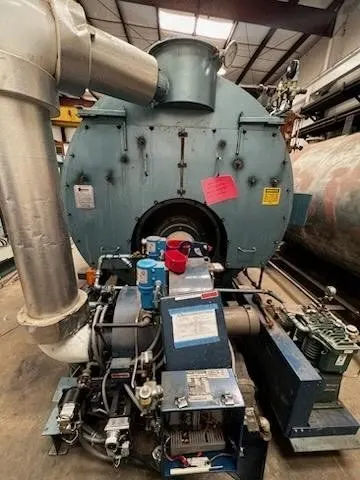

Burner
This superior boiler is quoted with the following low nox (30ppm) industrial combustion burner which has been cleaned, checked and has a new control system
Burner set up to burn natural gas and #2 fuel oil
Fm and csd-1 insurance requirements
Fireye ppc 4000 flame safeguard control system
Burner mounted control panel
Refractory combustion cone
Pilot regulator
Alarm horn with silencing switch
Condition
This unit has been completely checked out with any bad, questionable or obsolete parts replaced and has been painted
The fireye nexus ppc 4000 control system is new
