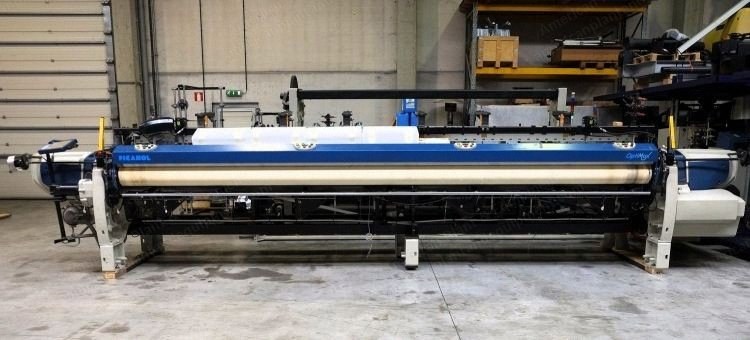

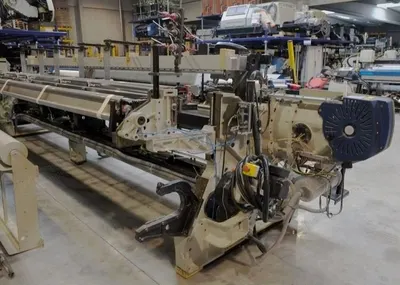

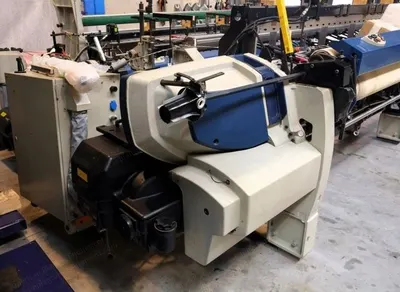

Picanol, Optimax-4-R-540, 2012, Working Width 5400mm, 4 Colors, Staubli 2622B Dobby

Picanol, Optimax-4-R-540, 2012, Working Width 5400mm, 4 Colors, Staubli 2622B Dobby

Description

  1. Overview
    1. Brand: Picanol
    2. Type: Optimax-4-R-540
    3. Year of construction: 2012
    4. Working width: 5400 mm
    5. 4 colors
  2. Dobby And Rapier System
    1. Electronic dobby Staubli type 2622B with 12 levers installed
    2. Controlled positive rapier GPG
  3. Standard Equipment
    1. Sumo
    2. Elo RHS + LHS (prepared for split beam but without gear LHS and without mid support)
    3. Etu
    4. 4 QS colors
  4. Creel And Feeders
    1. Creel with bobbin switch sensor for 4 bobbins
    2. Feeder support
    3. 4 feeders Iro type XD X3 with PFL
  5. Heald Frames And Warp Stop Motion

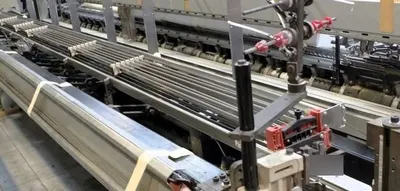

    1. 10 heald frames XLF extra light 152 DRC30 13”
    2. Grob detection with 6 warp stop motion bars
  6. Warp Beam And Backrest
    1. Single warp beam Q4 Ø 800 mm (warp tube diameter 270 mm)
    2. Direct warp control type backrest
    3. Warp beam position 14
  7. Pressure Rolls And Selvedge
    1. 1 heavy and 1 standard pressure roll
    2. Elsy L and R
  8. Control And Operation
    1. Touchscreen ID3-3
    2. 3 steps
  9. Waste System And Batching
    1. Waste system RHS and LHS with 2 aspiration motors

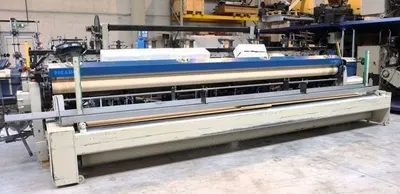

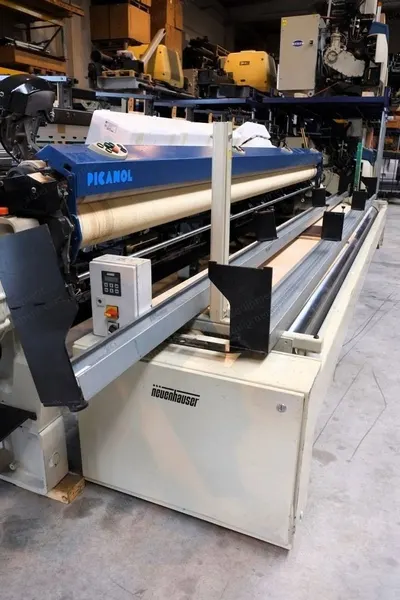

    2. External batching motion Neuenhauser type DW 3133 LXT (WOB 5500)
  10. Specifications
    1. Serial number: 312716
