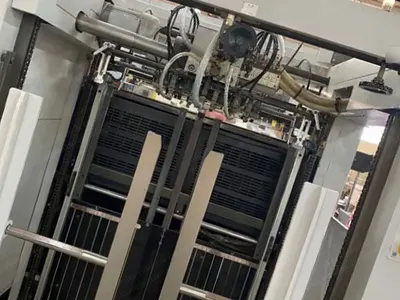

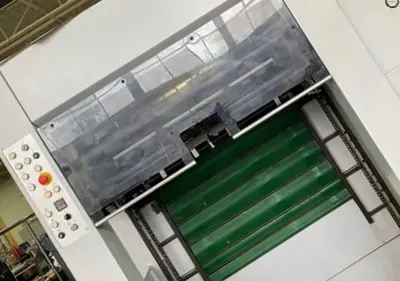

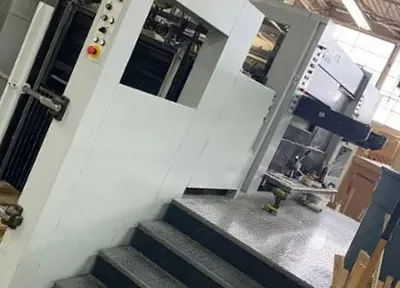

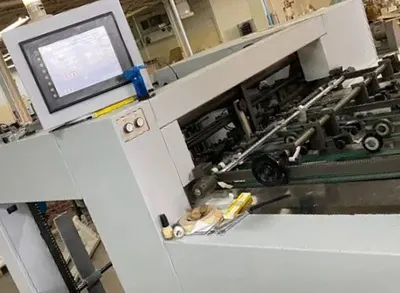

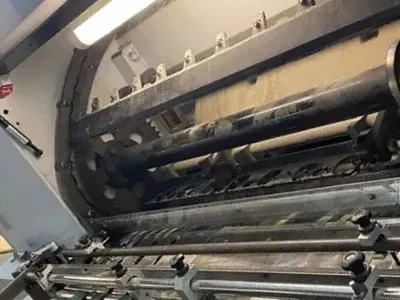

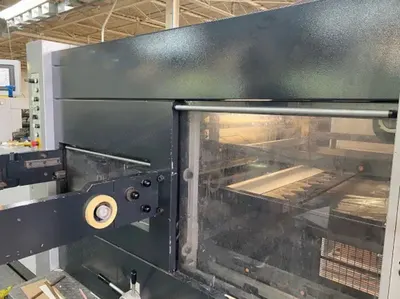

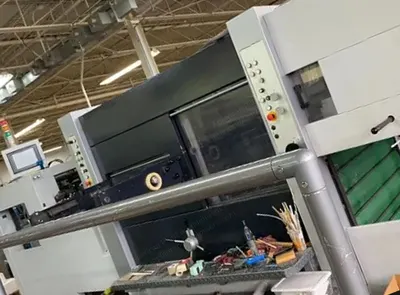

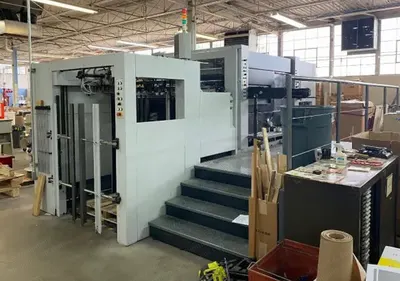

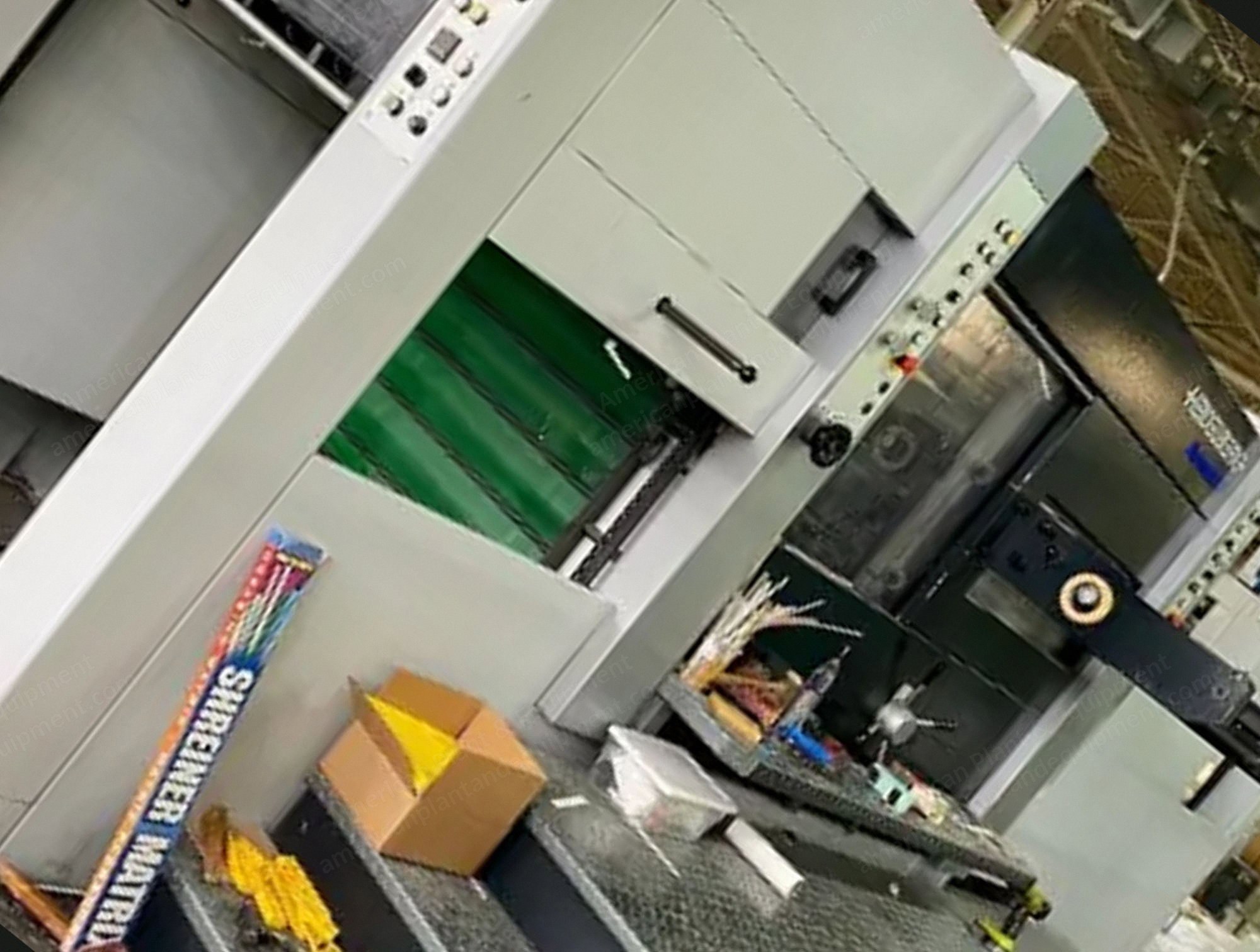

Heidelberg, Varimatrix 105 CS, 2011, Autoplaten Die Cutter, 750x1050mm Max Sheet Format, 300 Ton Cutting Pressure, 7500 SPH

Heidelberg, Varimatrix 105 CS, 2011, Autoplaten Die Cutter, 750x1050mm Max Sheet Format, 300 Ton Cutting Pressure, 7500 SPH

Description

  1. Overview
    1. Heidelberg Varimatrix model 105cs autoplaten die cutter
    2. Year 2011
    3. 6999 hours
    4. Stream feeder
    5. Continuous feed and delivery
    6. Centerline system
  2. Specifications
    1. Maximum sheet format: 750 x 1,050 mm (29.53 x 41.34 inches)
    2. Minimum sheet format: 370 x 400 mm (14.57 x 15.75 inches)
    3. Maximum cutting pressure: 300 t / 3.0 mn (6,613.86 pounds)
    4. Maximum machine speed: 7,500 sheets per hour
    5. Maximum cutting die dimensions: 740 x 1,060 mm (29.13 x 41.73 inches)
    6. Net cutting area: 727 x 1,050 mm (28.62 x 41.34 inches)
    7. Gripper margin, adjustable with 13 mm (0.512 inch) wood in front of the first knife: 10 to 18 mm (0.394 x 0.709 inch)
    8. Suitable for paper with a minimum weight of 80 grams per square meter
    9. Suitable for board or solid board up to a maximum weight of 1,400 grams per square meter
    10. Suitable for corrugated board up to a total thickness of four millimeters (0.16 inch)
    11. Weight: 15799
  3. Included
    1. 2 upper and lower stripping racks
    2. Make ready table
    3. Assorted stripping pins
    4. 1 chase
  4. Dimensions And Weight
    1. Length: 25.6 feet, width: 12.63 feet, height: 8.04 feet
    2. Weight: approximately 34,833 lbs
