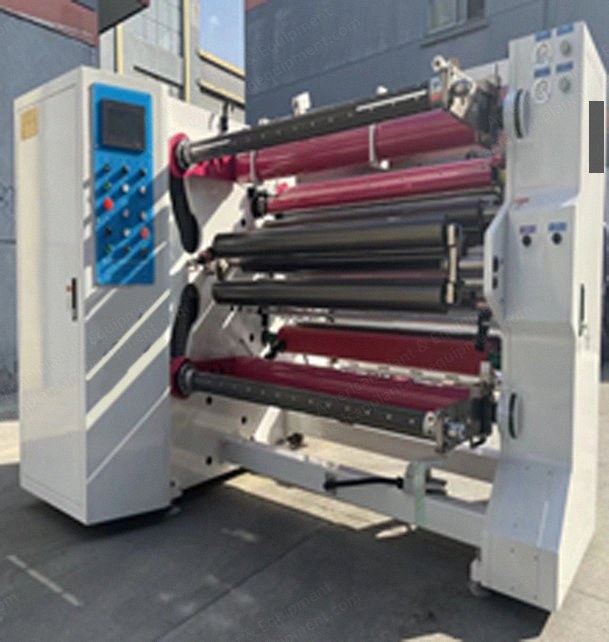

NovaStar, SR240, Double Shaft Slitter Rewinder, Width 1300mm, Speed 300m/min (New)

NovaStar, SR240, Double Shaft Slitter Rewinder, Width 1300mm, Speed 300m/min

Description

  1. Overview
    1. Double shaft slitting and rewinding machine for paper, adhesive tape, label, etc.
  2. Unwind Section
    1. Unwind base: integral shaft type movable base: 1 set
    2. Unwind shaft: pneumatic compressed shaft 3": 1 set
    3. Unwind brake: electromagnetic brake 20kg: 1 set
    4. Unwind web tension: plc controlled diameter auto calculation: 1 set
  3. Rewind Section
    1. Rewind driver system: 3 motors in a system to control tension: 1 set: Japan Mitsubishi
    2. Rewind motor: a.c. motor 5 hp control by tension inverter: 1 set: Siemens
    3. Rewind system: pneumatic air shaft 3": 2 sets
    4. Rewind gap roller: position auto activating by plc control: 1 set
    5. Trim remove device: spin rewinder: 2 sets
    6. Spread roller: adjustable bowed roller: 100mm: 1 set
    7. Maintenance kit: tools and instruction: 1 set
  4. Electrical Section
    1. Control system: plc programmable unit and Schneider inverter bus system: 1 set: Japan Mitsubishi 5u
    2. Control panel: touch screen (for setting, tension, length, etc.): 1 set: French Schneider
    3. Rewind tension control: ultra-sonic diameter detection by plc, to control e/a converter output tension: 2 sets
    4. Control panel box: connected control frame with: 1 set
  5. Slitting Knives
    1. Shear cutter: male knife stand roller: 1 set
    2. Female knife stand roller: 1 set
    3. Male knife set: male knife set 105 x 60 x 20t (movable): 20 sets
    4. Female knife: female knife sleeve o.d.105 x i.d.80 x t30 (moveable): 20 sets
  6. Specifications
    1. Voltage: Please advise voltage required
    2. Capacity: Speed 300 m/min
    3. Weight: 2200
    4. Dimensions: 3040x1900x1600mm
    5. Effective width: 1300mm
    6. Rewind diameter: 650mm
    7. Unwind diameter: 1000mm
