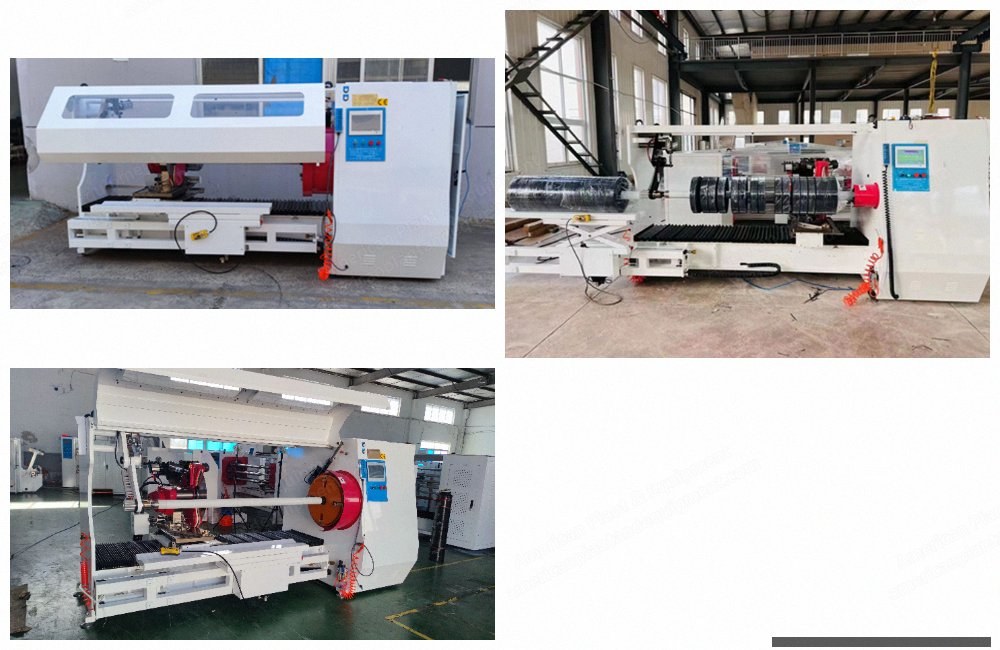

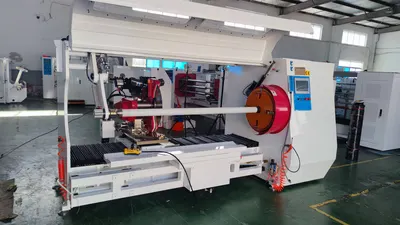

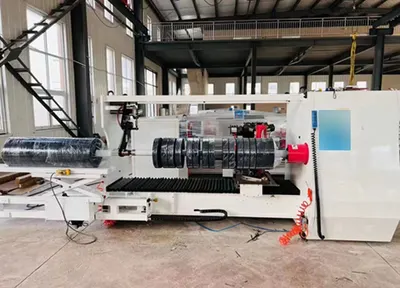

NovaStar, SR241, Baloney Slitter, 1700mm Roller Width, 3 to 1600mm Cutting Width, Single Shaft (New)

NovaStar, SR241, Baloney Slitter, 1700mm Roller Width, 3 to 1600mm Cutting Width, Single Shaft

Description

  1. Standard Accessories
    1. Main motor: AC 7.5 HP x 4P inverter control: 1 set
    2. Width setting: servo motor driven: 1 set
    3. Cutter stand: ball spline: 2 pcs
    4. Ball screw: 1 pce

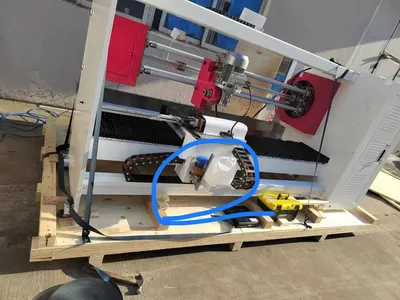

    5. Cooling system: includes a reservoir that needs to be refilled every 8 hours (silicone is added here to mix with the water), with automatic control for feeding the spray unit by mini pump: 1 set
    6. Cutting shaft: for paper core I.D. 76.2 mm: 1 pce
      1. It is possible to buy different diameter core shafts; we can also add sleeves/rings to accommodate for different diameters. Please specify what diameters you require.
    7. Shaft sleeve: PE tube (spare): 10 pcs
    8. Circular blade: 4 mm x 1” I.D. x 600 mm
    9. (C-type) maximum cutting O.D. 500": 1 pc
    10. Knife holding plate: 120/200: 1 set
    11. Knife motor: AC 7.5 HP x 4P inverter control: 1 set
    12. Knife angle adjustment: angle change by servo motor driven +/- 8 degree: 1 set
    13. Shaft ending rack: automatic control: 1 set
    14. Cutting system: servo motor driven: 1 set
    15. Maintenance kit: tools & instruction: 1 set
    16. Loading/unloading device: electric device for loading/unloading: 1 unit
  2. Electrical Section
    1. Control system: PLC - 3 servo motor system: 1 set
    2. 20 sets of width setting: 1 set
    3. Automatic error detective system: 1 set
    4. Display mode: touch panel screen: 1 set
  3. Summary
    1. Length x width x height: 3700 mm x 1850 mm x 1700 mm (12.14 ft x 6.07 ft x 5.58 ft)
    2. Weight: N.W 2000 kg (4409.25 lbs) G.W 2200 kg (4850.95 lbs)
    3. Total power: 13 kW (17.43 HP)
    4. Voltage: 220 V, 60 Hz, 3-phase (other voltages are available)
  4. Specifications
    1. Capacity: Cutting width 3 to 1600mm, Max cutting O.D. 550mm
