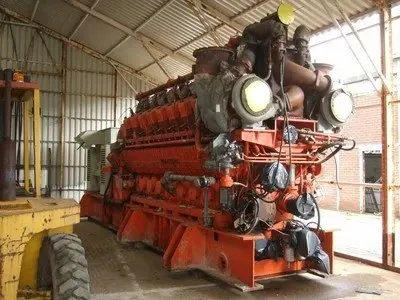

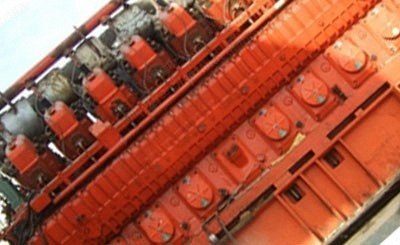

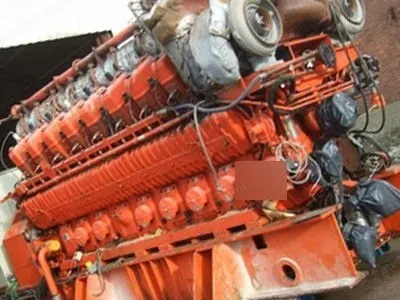

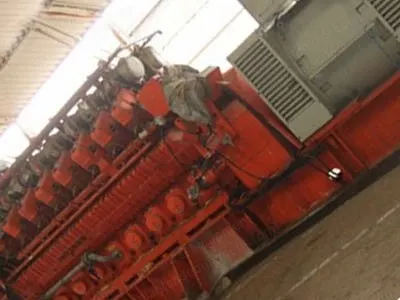

Waukesha, Leroy Somer, Gas Generator, 3360 kW, 11000V, 50 Hz

Waukesha, Leroy Somer, Gas Generator, 3360 kW, 11000V, 50 Hz

Description

  1. Overview
    1. Waukesha/LeRoy Somer gas generator
    2. Equipment category: generator
    3. Sub group: gas
    4. Gas engine driven electrical generator
    5. Natural gas fired
    6. All mounted on a carbon steel skid
  2. Specifications
    1. Capacity: 3360 kW
    2. 3360.8 kW (4201 kVA)
    3. 11000 volt
    4. 220.5 amp
    5. 3 phases
    6. 50 Hz
    7. Continuous, compression ratio 9/1
    8. Min. WKI 91
    9. Ignition timing (BTDC) 11-02
    10. Service 4650 hp (3469 kW)
    11. Altitude limit 500 feet (152 meter)
    12. Governed speed 1000 rpm, 0.80 mm valve intake and exhaust clearance
    13. Firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L
  3. Engine
    1. Engine manufactured by Waukesha (Dresser)
  4. Alternator
    1. AC generator (alternator) manufactured by LeRoy Somer
    2. Type LSA-56-BM65-6P
    3. IP 23
    4. 3360.8 kW, 4201 kVA power rating
    5. 1000 rpm, excitation AREP
  5. Condition
    1. Used industrial equipment
  6. Quantity
    1. 2 units available
