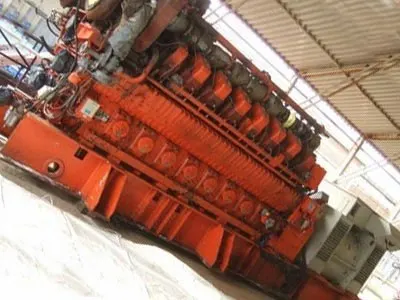

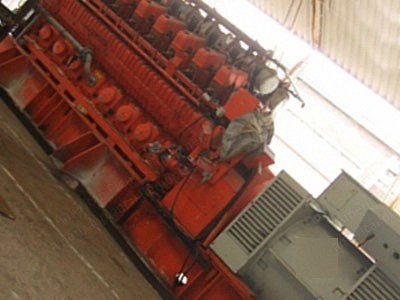

Waukesha, 16VAT27GL, 2000, 3360.8 kW, 4201 kVA, 50 Hz, Gas Generator Set

Waukesha, 16VAT27GL, 2000, 3360.8 kW, 4201 kVA, 50 Hz, Gas Generator Set

Description

  1. Overview — Item 001
    1. Waukesha gas generator
    2. Gas engine driven electrical generator
    3. 3360.8 kW (4201 kVA), 11000 Volt, 220.5 Amp, 3 Phase, 50 Hz
  2. Engine Specifications (First Unit)
    1. Engine manufactured by Waukesha (Dresser)
    2. Model #16VAT27GL
    3. Natural gas fired
    4. Continuous, comp ratio 9/1, min.WKI 91
    5. Ignition timing (BTDC) 11-02
    6. Service 4650 HP (3469 kW)
    7. Altitude limit 500 feet (152 meter)
    8. Governed speed 1000 rpm
    9. 0.80mm valve intake & exhaust clearance
    10. Firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L
  3. Alternator Specifications (First Unit)
    1. AC generator (alternator) manufactured by Leroy Somer
    2. Type LSA-56-BM65-6P
    3. IP 23
    4. 3360.8 kW, 4201 kVA power rating
    5. 11000 Volt, 220.5 Amp, 3 Phase, 50 Hz
    6. 1000 rpm, excitation AREP
  4. Mounting And Condition (First Unit)
    1. All mounted on a carbon steel skid
    2. Operated between 34,000 and 36,300 hours
    3. Year: 2000
    4. Stopped operating in early 2016
  5. Overview — Item 002
    1. Waukesha gas generator
    2. Gas engine driven electrical generator
    3. 3360.8 kW (4201 kVA), 11000 Volt, 220.5 Amp, 3 Phase, 50 Hz
  6. Engine Specifications (Second Unit)
    1. Engine manufactured by Waukesha (Dresser)
    2. Model #16VAT27GL
    3. Natural gas fired, continuous, comp ratio 9/1, min.WKI 91
    4. Ignition timing (BTDC) 11-02, service 4650 HP (3469 kW)
    5. Altitude limit 500 feet (152 meter), governed speed 1000 rpm
    6. 0.80mm valve intake & exhaust clearance
    7. Firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L
  7. Alternator Specifications (Second Unit)
    1. AC generator (alternator) manufactured by Leroy Somer
    2. Type LSA-56-BM65-6P
    3. IP 23, 3360.8 kW
    4. 4201 kVA power rating
    5. 11000 Volt, 220.5 Amp
    6. 3 Phase, 50 Hz, 1000 rpm, excitation AREP
  8. Mounting And Condition (Second Unit)
    1. All mounted on a carbon steel skid
    2. Operated between 34,000 and 36,300 hours
    3. Year: 2000
    4. Stopped operating in early 2016
