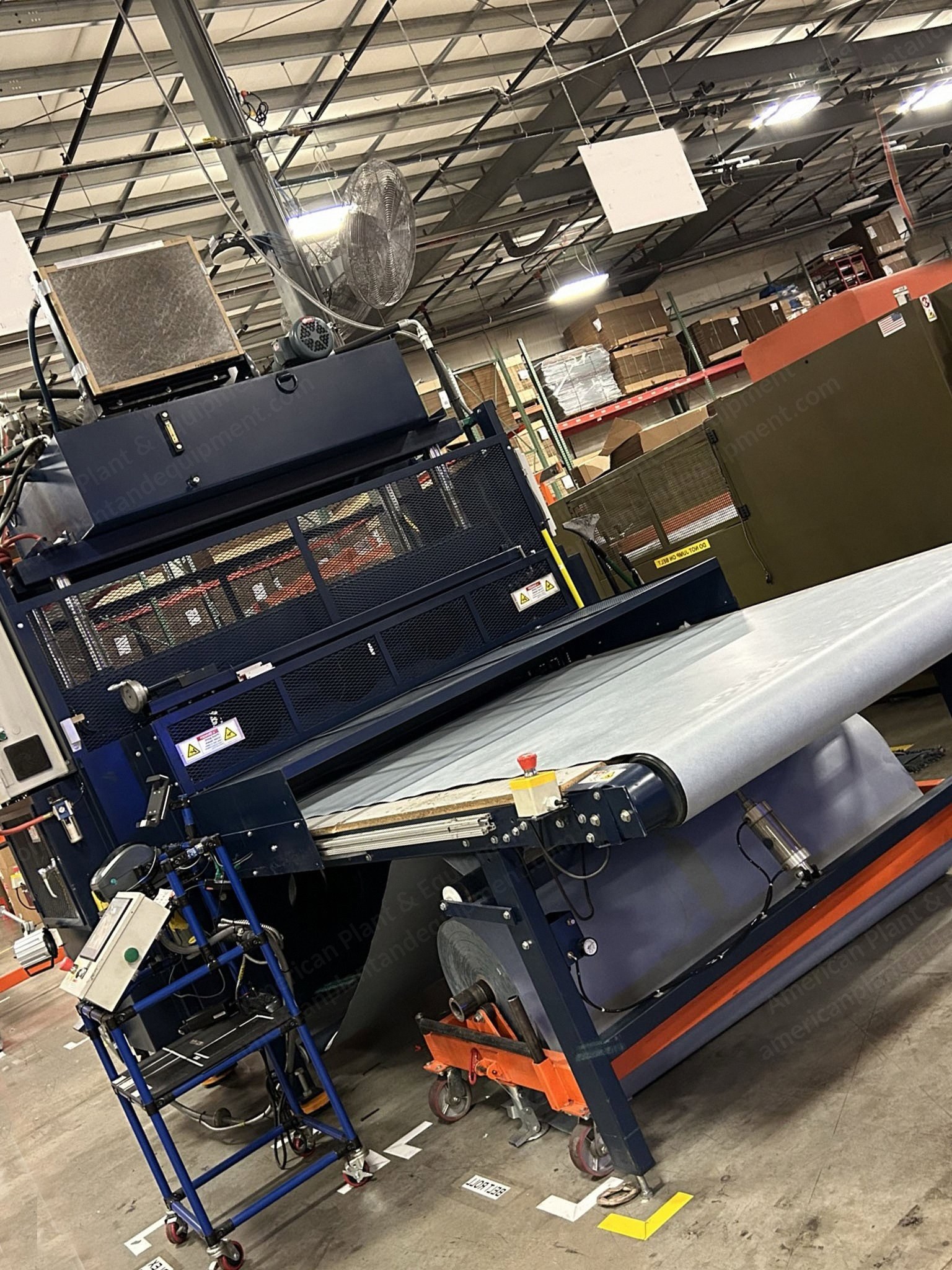

Ttarp, Automatic Die Cutting Press, 2016, 100 Ton, 60x32 inch, Belt Feed

Ttarp, Automatic Die Cutting Press, 2016, 100 Ton, 60x32 inch, Belt Feed Sold

Description

  1. Overview
    1. Belt feed
    2. 100 ton capacity
    3. 60” x 32” special automatic steel rule die cutting system
    4. Rule to rule cutting dimensions are 58” x 30”
  2. Specifications
    1. Two (2) 8” hydraulic cylinders, hydraulic piston pump
    2. Plc controlled servo motor drive for in-feed and out-feed pinch rollers and conveyor belt drive
    3. Conveyor tables: 66” wide x 7’ long with auto belt tracking
    4. Cutting belts are either ttarp polycoated paper or mylar a up to 60” wide
    5. Fully guarded, emergency stops, electrical disconnects etc.
    6. Designed per our interpretation of osha standards
    7. Moveable touchscreen control console, adjustable cutting stroke, pressure, dwell time, press and conveyor speeds
    8. Automatic or manual operation
    9. Dimensions: 60 x 32 inches
    10. Rule to rule cutting dimensions: 58 x 30 inches
  3. Included
    1. Also includes a heat sealing device
