NovaStar, FN602, 2021, 1300mm Cutting Height, 2200x2200mm Cutting Area, CNC Contour Cutting Machine (New)

NovaStar, FN602, 2021, 1300mm Cutting Height, 2200x2200mm Cutting Area, CNC Contour Cutting Machine Sold

Description

  1. Overview

    1. Horizontal CNC contour cutting machine with rotating cutting wire

    2. Used for cutting shapes and contours of harder materials such as PU flexible foam, PU rigid foam, PU rebonded foam, extruded PS, phenolic resins, calcium silicates, mineral wool and foamglas

    3. Manufacturer: NovaStar - Cut Technologies

    4. Model: FN602

    5. Year of construction: 2021

    6. Update: 23.08.2023

  2. Specifications

    1. Cutting height: 1,300 mm

    2. Cutting length: 2,200 mm (extension optional)

    3. Cutting width: 2,200 mm (extension optional)

    4. Cutting speed: 10 m/min (depends on material and contour)

    5. Positioning speed: 25 m/min

    6. Wire speed: continuous adjustable

    7. Cutting tool: cutting wire

    8. Power supply: 400 vac with 50 / 60 cycles

    9. An optional transformer may become necessary

  3. Features

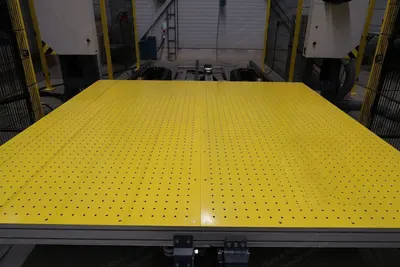

    1. Vacuum unit fixes the material on the table; the vacuum unit is externally installed for easy maintenance

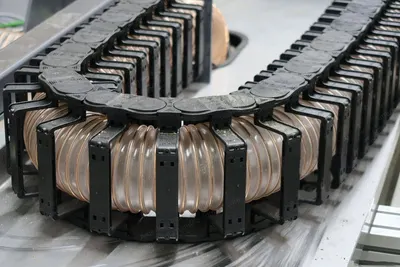

    2. Dust exhausting unit absorbs dust created by the cutting process

    3. Wire cooling device significantly rises the lifetime of the cutting wires

  4. Control System

    1. NovaStar control for CNC contour cutting machines included

    2. Producer of control unit: NovaStar - Cut Technologies

    3. State-of-the-art automation components; control installed in a Rittal switch cabinet

    4. User interface is a 13.3" touch screen monitor with a fast SSD hard drive

    5. All servo inverters of the control are new

    6. User interface designed for fast familiarisation time and is friendly to use

    7. Multivendor capability: conversion can be implemented for all cutting machines from various manufacturers

    8. Cutting programs: reads machine code of various providers; G-code and SLD programs can be used; integrated DXF converter allows fast creation of cutting programs

    9. Network connection: can be integrated to corporate network by LAN or WiFi connection

    10. Remote access: optionally integrated modem enables remote diagnoses and software updates worldwide

    11. UPS: intelligent uninterrupted power supply unit integrated; in case of sudden power loss the machine will shut down safely

    12. Cooling system: integrated in control cabinet; reduces dust pollution and results in longer lifetime of electrical components

  5. Condition

    1. Condition: new machine

    2. Warranty: 1 year for the machine

    3. Safety: manufactured according CE (European standard); operator is responsible for any required additional safety installations or certificates according to local regulations

  6. Included

    1. Manual for control in German / English; other languages available upon request

  7. Availability

    1. Short delivery times upon agreement
