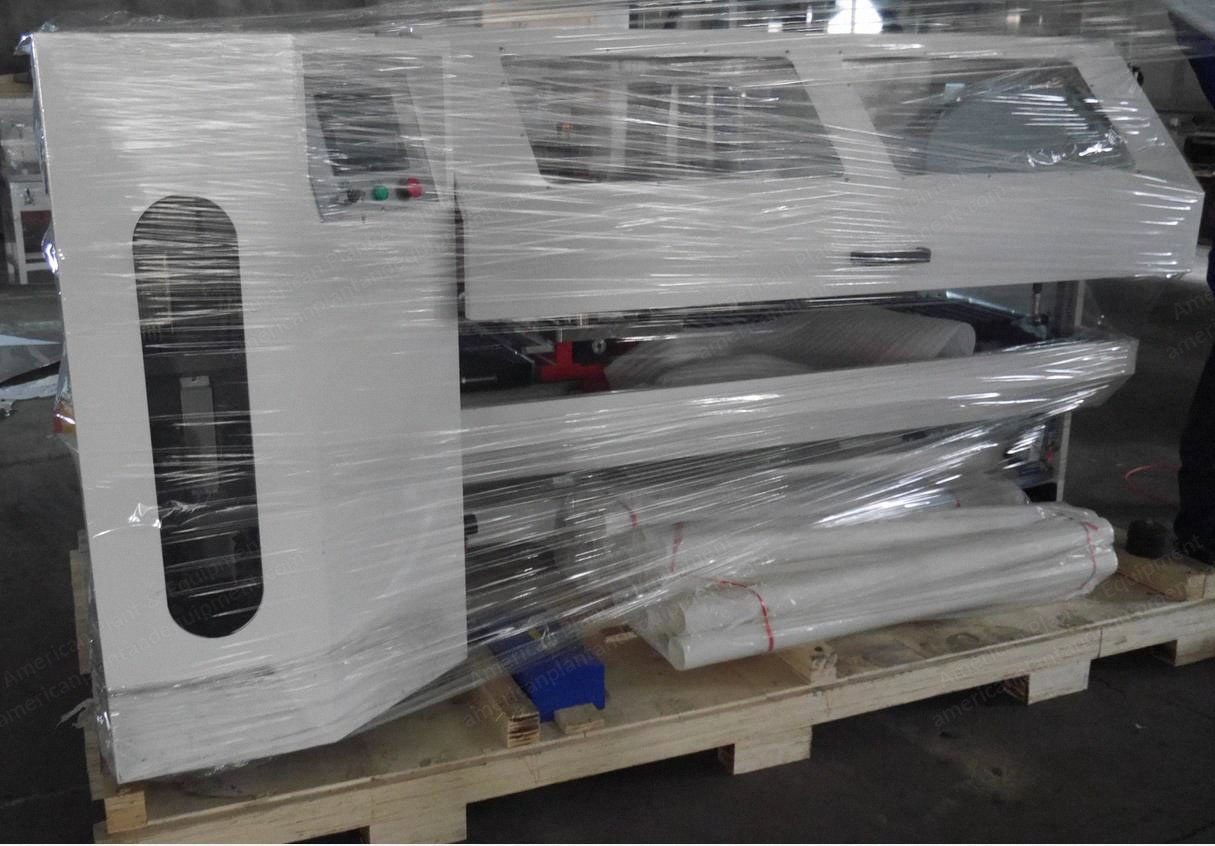

NovaStar, SR242, Single Shaft Auto Cutting Machine, Working Width 1500mm (New)

NovaStar, SR242, Single Shaft Auto Cutting Machine, Working Width 1500mm

Description

  1. Overview
    1. Automatic cutting machine for film rolls
    2. After you set the parameter, it would cut the film rolls to small width rolls automatically
    3. Suitable for cutting various log roll materials such as insulation tape, polyester tape, PVC, OPP, PE, masking tape, double-side tape, plastic films, windows film, 3M tape, fiberglass mesh tape, surgical tape, al foil rolls, etc.
    4. No problem for this machine to slit your PVC film material
  2. Specifications
    1. Max slitting width: 1600mm (can be customized from 800mm to 3000mm)
    2. Mini slitting width: 10mm
    3. Unwinding diameter: 600mm
    4. Rewinding diameter: 300mm
    5. Working width: 1500mm
    6. Large roll material diameter max: 350mm
    7. Max cutting diameter: 350mm
    8. Max cutting speed: 35 cuts/min
    9. Max length of cut: 1500mm
    10. Inside diameter of paper core: 3 inches (customize)
    11. Cutting width: 1 to 1300mm
    12. Main motor: 5hp
    13. Blade drive motor: 750W (servo motor)
    14. Blade diameter: 150 to 350mm (on your requirements)
    15. Blade speed: 360 to 1800 rpm
    16. Weight: 1500 kg
    17. Machine dimension (L x W x H): 2850 x 1430 x 1520mm
    18. Voltage: 480V 60Hz 3 phase
    19. Weight: 1200.0
    20. Dimensions: 335x156x181cm
    21. Gross weight kg: 1400.0
  3. Features
    1. Centralized control panel: all operation controls for this machine are centralized in a control panel
    2. Control panel provides major functions: material and blade running speed (LCD screen display), width counter, number of cuts counter
    3. Silicon lubricating system prevents the blade from sticking on adhesives and allows smooth cutting at all times; silicon liquid is re-circulated
    4. The blade is back pressure controlled through an air and hydraulic combination, giving maximum cutting stability and fast blade retract after each cut; cutting pressure can be easily adjusted to suit various types of materials
    5. Cutting circular knife and main shaft power force adopted with AC step-less adjusting motor and available in any rotating direction
    6. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size
    7. PLC programmable control
    8. With safe cover
  4. Configuration
    1. 25mm steel wall finishing welding machine: 1-type
    2. Main drive motor (AC3.7kW x 4P + inverter frequency control): 1-group
    3. Cutting width setting volume (servo motor 750W): 1-group
    4. Control system (P.L.C. control system automatic conversion of different sizes cut): 1-group
    5. Recording device (LCD touch screen display): 1-group
    6. Sliding system: imported high precision linear ball pulley (2-piece) and HIWIN high precision ball screw (1-piece)
    7. Cooling system (automatic water spray): 1-set
    8. Cutting shaft (inside diameter of paper tube: Ф76.2mm): 1-piece
    9. Cutting sleeve (PE pipe 75.4mm): 2-piece
    10. Round knife cutting (Ф25.4mm I.D x 350mm O.D): 2-piece
    11. Chuck round knife (Ф160mm): 1-set
    12. Servo motor feed system: 1-group
    13. Round knife cutting motor (motor AC2.2kW x 4P + inverter frequency control): 1-group
    14. Round knife angle adjustment system (automatic adjustment control): 1-group
    15. Cutting axis rear bracket (automatic pressure thimble): 1-group
    16. With safe cover
