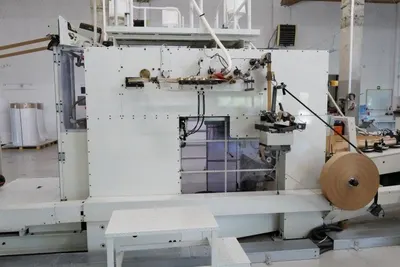

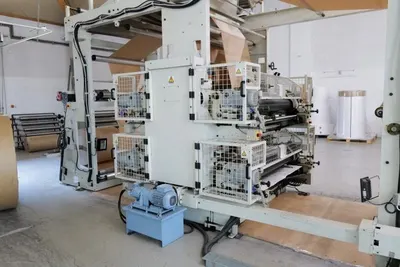

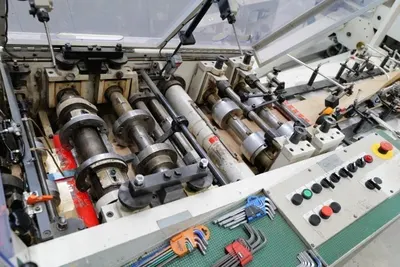

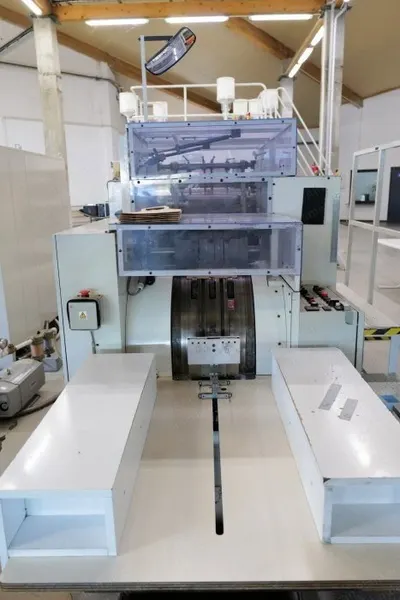

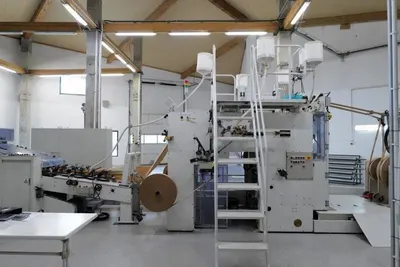

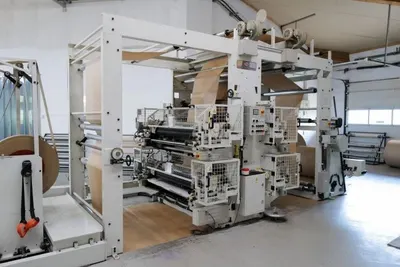

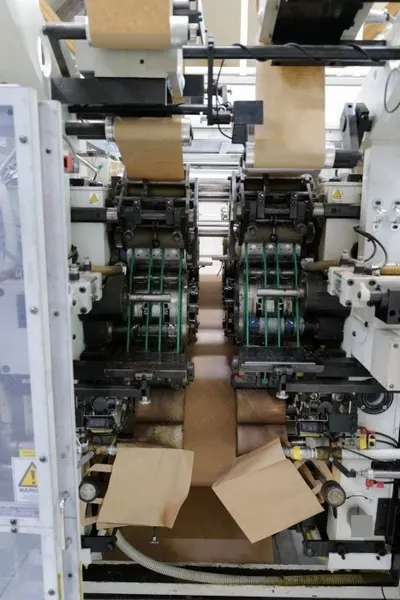

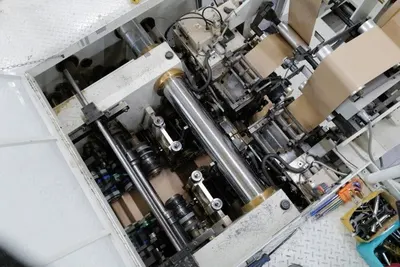

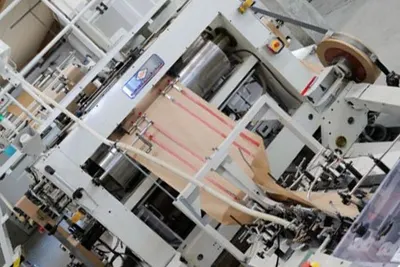

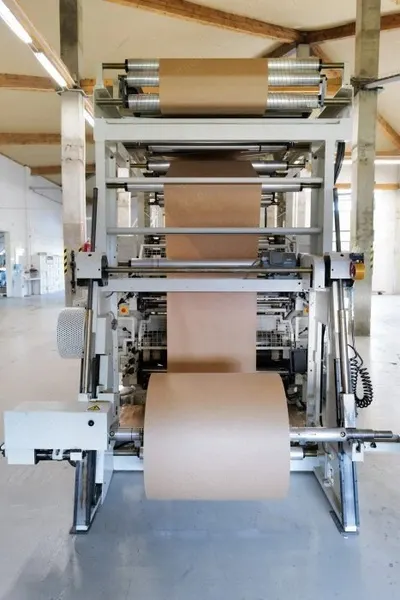

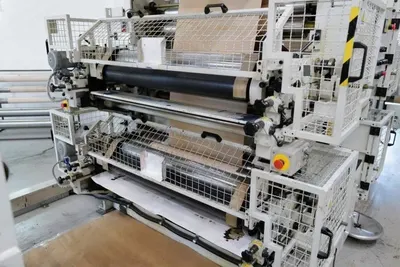

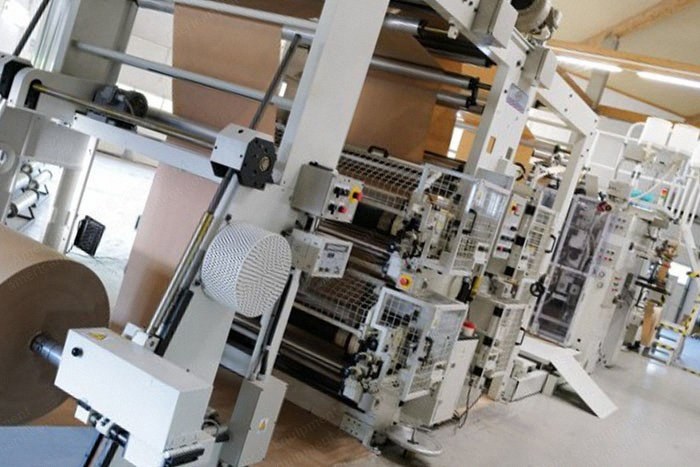

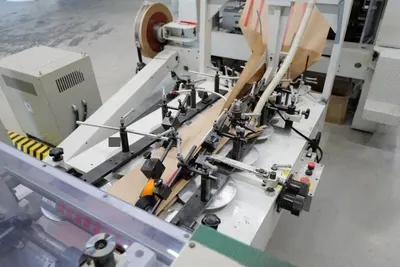

Description Overview Inline printer 412FK +19R Paper roll unwind stand Equipped with automatic tension control, paper roll lift, alarm for roll end, and set of air shafts Flat handle making unit 508T for the production of paper handles and applying onto the running web Handles are applied onto the inside of the finished bag Handle Making Unit Details 2 unwind stations for 1300mm diameter, paper width: 78mm 2 unwind stations for 1200mm diameter, paper width: 160mm 2 epc unit for cover strip Bag Technical Data Cutting length: 210 to 400mm outside handle, 210 to 480mm inside handle Bag length: 135 to 435mm outside handle, 135 to 350mm inside handle Bag width: 180 to 320mm, 150 to 320mm without handle Bottom width: 60 to 165mm Paper roll width maximum: 1000mm Paper weight: 80 to 100 g/m2 Number of ply: 1 Speed maximum: 180 pcs/min Handle Technical Data Paper width: 100mm Paper weight: 60 to 80 g/m2 Handle patch width: 160mm Flexographic Printer Specifications Number of colors: 4 Printing width maximum: 1200mm Printing length: 300 to 750mm, 10mm increments Reel core diameter: 3 inches (76mm) General Information Year of manufacture: 2015 Availability: immediately
