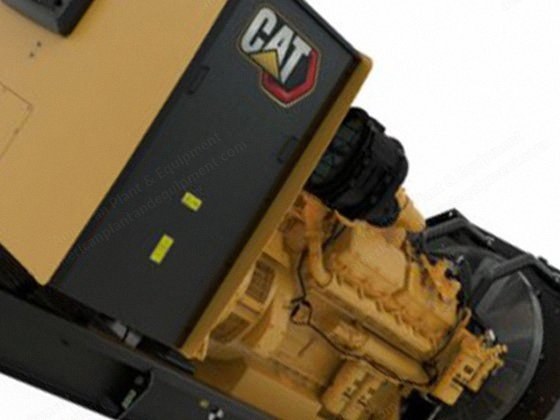

Description Overview Category: Generator sets in Arizona Subcategory: Diesel generator sets Condition: Used Duty cycle: Standby, mission critical, prime, continuous Engine Specifications Engine model: 3516 TA, V-16, 4-stroke water-cooled diesel Bore: 6.69 in Stroke: 7.48 in Displacement: 4,210.64 in³ Compression ratio: 13.0:1 Aspiration: TA Fuel system: Mechanical unit injection Governor type: Woodward Emissions/fuel strategy: Low fuel consumption Power and Electrical Ratings Power: 1825 kVA Maximum rating: 2000 kVA Minimum rating: 1600 kVA Standby rating: 2000 kVA Prime power rating: 1825 kVA Voltage: 380 to 11000 volts Frequency: 50 Hz Speed: 1500 rpm Physical Dimensions and Weight Length - maximum: 232.9 in Width - maximum: 90 in Height - maximum: 93.2 in Dry weight - genset (maximum): 33,900 lb Air and Exhaust System Air cleaner: Single element canister type Air cleaner Exhaust flange outlet Cooling System Package mounted radiator Fuel System Secondary fuel filters Fuel priming pump Primary fuel filter with integral water separator Generator and Protection Matched to the performance and output characteristics of Caterpillar engines IP23 protection Busbar Generator set packages include Caterpillar's voltage regulator Controller and Monitoring EMCP 4 genset controller Over/under voltage (27/59) Serial annunciator module data link Communications Overcurrent (50/51) Over/under frequency (81 O/U) Text alarm/event descriptions Programmable protective relaying functions 4 programmable relay outputs (form A) Reverse power (kW) (32) Emergency stop Amps (per phase and average) Oil pressure (psi, kPa or bar) Operating hours 24 volt DC operation Low oil pressure 6 customer programmable digital inputs 1 programmable digital outputs 1 programmable relay outputs (form C) Volts (L-L and L-N) Number of I/O varies on options selected RPM - DC volts Low coolant level kVAR-hr (total) SpecificationsWeight: 15377
