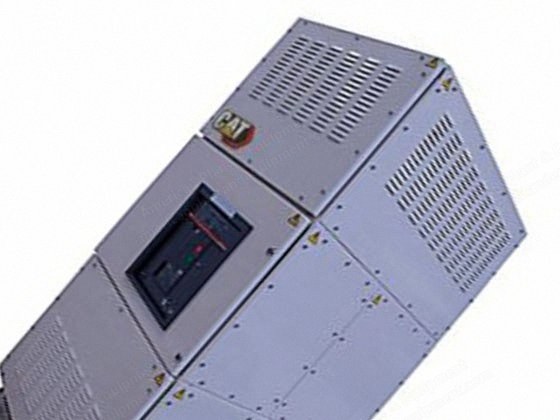

Caterpillar, 3516, 1600 ekW, Diesel, 60 Hz

Caterpillar, 3516, 1600 ekW, Diesel, 60 Hz

Description

  1. Overview
    1. Brand: Caterpillar generator sets
    2. Category: Generator sets
    3. Subcategory: Diesel generator sets
    4. Power: 1600 ekw
    5. Condition: Used
    6. Maximum rating: 1750 ekw
    7. Minimum rating: 1450 ekw
    8. Emissions/fuel strategy: Low fuel consumption
  2. Engine Specifications
    1. Engine model: 3516 TA, V-16, 4-stroke water-cooled diesel
    2. Bore: 6.69 in
    3. Stroke: 7.48 in
    4. Displacement: 4,210.64 in³
    5. Compression ratio: 13.5:1
    6. Aspiration: TA
    7. Fuel system: Mechanical unit injection
    8. Governor type: Woodward
  3. Dimensions and Weight
    1. Length - maximum: 234.4 in
    2. Width - maximum: 90 in
    3. Height - maximum: 94.9 in
    4. Dry weight - genset (maximum): 28,840 lb
  4. Electrical Specifications
    1. Voltage: 380 to 480 volts
    2. Frequency: 60 Hz
    3. Speed: 1800 rpm
    4. Duty cycle: Standby, mission critical, prime, continuous
    5. Standby rating: 1750 ekw
    6. Prime power rating: 1600 ekw
    7. 24 volt DC operation
  5. Features and Components
    1. Air cleaner: Single element canister type
    2. Auto/start/stop control
    3. Engine cycle crank
    4. Generator set packages include Caterpillar's voltage regulator
    5. Speed adjust
    6. IVR includes reactive droop capability, 3-phase voltage sensing, KVAR / PF modes, RFI suppression, min / max exciter limiter and exciter diode monitor
    7. Engine cool-down timer
    8. Text alarm/event descriptions
    9. Emergency stop pushbutton
    10. Environmental sealed front face
    11. EMCP 4.2B
    12. Generator mounted - rear facing
    13. ATAAC - 3516E package radiators shipped installed
    14. Cat connect
  6. Controls and Monitoring
    1. Lamp test
    2. Alarm acknowledge
    3. PLC functionality
    4. Load histogram feature
    5. Customizable screens -0 true RMS AC metering, 3-phase, +/-2% accuracy
    6. 3 analog inputs
    7. 1 programmable digital outputs
    8. Accessory module data link
    9. 1 programmable relay outputs (form C)
    10. Customer data link (Modbus RTU)
    11. Serial annunciator module data link
    12. Digital indication for: Reverse reactive power (KVAR) (32RV)
    13. Number of I/O varies on options selected
  7. Specifications
    1. Weight: 13081
