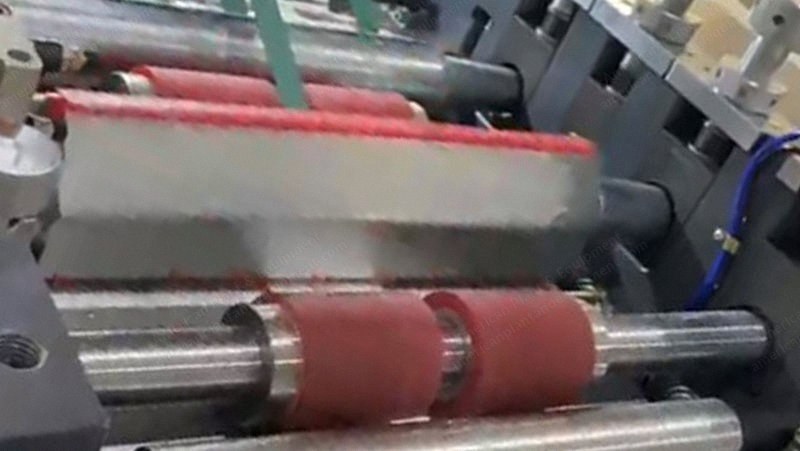

FS 1200, 2023, Paper Bag Making Machine, Width 70 to 250mm, Speed 220 to 600 pcs/min

FS 1200, 2023, Paper Bag Making Machine, Width 70 to 250mm, Speed 220 to 600 pcs/min

Description

  1. Overview
    1. Bag making machine model flat and satchel paper bags fs 1200
    2. Year 2023
    3. Availability immediately
    4. Master bag model high-speed flat and satchel paper bag machine, 200 up to 600 per minute
    5. Made of rigid and robust construction in one of the best engineering companies
    6. Sturdy construction to ensure safety and quality, stability and speed with less vibration, low noise, high speed, accurate discharge, and minimum chances of industrial downtime
    7. Power saving and finest quality output
    8. Suitable for preprinted roll kraft paper
    9. From pre-puncturing, side glueing, folding, tube forming, cutting, bottom folding, and glueing, the final product collection can be completed within one time and one operator by this machine
    10. According to customer requirement, can also add a window film patching device
    11. Operation and adjustment are very simple and quick, change of size can be done in few minutes, with a counting system for speed production
    12. Ideal for producing a variety of daily eco-friendly paper bags widely used in bakeries, pharmacies, fast food restaurants, coffee shops, and supermarkets
  2. Specifications
    1. Paper bag cutting length: 110 to 460 mm
    2. Paper bag length (l): 100 to 450 mm
    3. Paper bag width (w): 70 to 250 mm
    4. Side insert width (g): 20 to 120 mm
    5. Bag mouth height: 15/20 mm
    6. Paper thickness: 35 to 80 g/m²
    7. Max paper bag speed: 220 to 600 pcs/min
    8. Paper roll width: 260 to 740 mm
    9. Paper roll diameter: 1000 mm
    10. Inner diameter of the paper roll: 76 mm
    11. Machine supply: 380 v, 50 hz, three phase, four wires
    12. Max printing material width: 1000 mm
    13. Max printing width: 960 mm
    14. Printing length range: 230 to 1000 mm
    15. Max printing speed: 5 to 100 m/min
    16. Register precision: ±0.15 mm
    17. Thickness of plate: 2.28 mm + 0.38 mm (can be customized)
    18. Power: 24 kw
    19. Weight: 6700 kgs
    20. Dimension: l10100 x w2100 x h2800 mm
