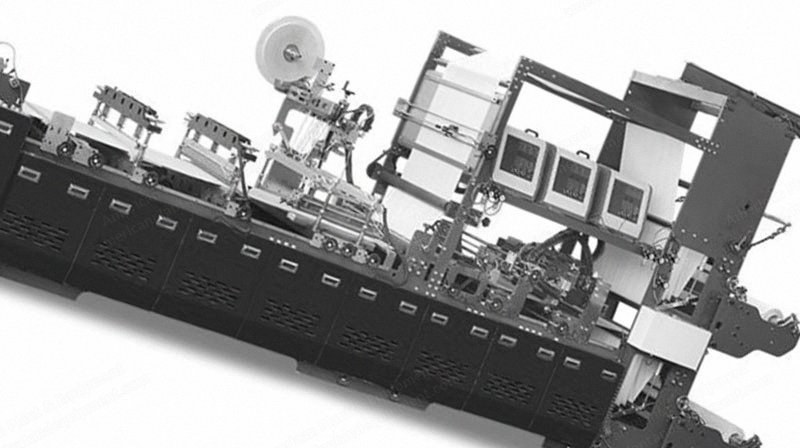

NovaStar, F150, 2023, Bag Making Machine, Width 950mm, Speed 40-150 pcs/min (New)

NovaStar, F150, 2023, Bag Making Machine, Width 950mm, Speed 40-150 pcs/min

Description

  1. Overview
    1. Bag making machine
    2. Model F150
    3. Year 2023
    4. Availability 30 working days
  2. Specifications
    1. Max bag width: 950 mm
    2. Max bag length (depth): 900 mm
    3. Max unwinding diameter: Φ1000 mm
    4. Max speed: 40 to 150 pcs/min (depending on the bag size)
    5. Weight: 5000 kg
    6. Dimension (L x W x H): 8000 x 1700 x 2000 mm
    7. Voltage: 480 V, 60 Hz
  3. Features
    1. Inverter control speed, easy to operate, reduce electric consumption
    2. Feed wheel and pull device controlled by servo motor, high efficiency output
    3. Computer control fully automatic, touch screen and human-machine interface, easy for correction and fine adjustment
    4. Unwinding adopts shaft feeding, equipped with 3 raised key type air expansion shaft
    5. Unwinding with 2.5 kg magnetic powder brake
    6. Deviation rectifying device is a push-type photoelectric automatic deviation rectifying device
  4. Glue Scraping and Merging Function
    1. Longitudinal Z-axis servo motor: 1 piece
    2. Glue scraping of transverse X-axis servo motor: 2 pieces
    3. Centrifugal membrane glue gun: 1 piece
    4. Rubber scraping can be moved left and right: 1 set
    5. Bottom scraping can move left and right: 1 set
    6. Glue storage barrel
  5. Key Components
    1. Photocell: Datalogic (Italy)
    2. Servo motor and driver: Mitsubishi (Japan)
    3. Inverter: Delta (Taiwan)
    4. PLC with program: Mitsubishi (Japan)
    5. Touch screen: MCGS (Taiwan)
    6. Tension controller: automatic
    7. Button: Schneider (France)
    8. Bearing: NSK (Japan)
    9. SSR: Fotek (Taiwan)
    10. Intermediate relay: Schneider (France)
