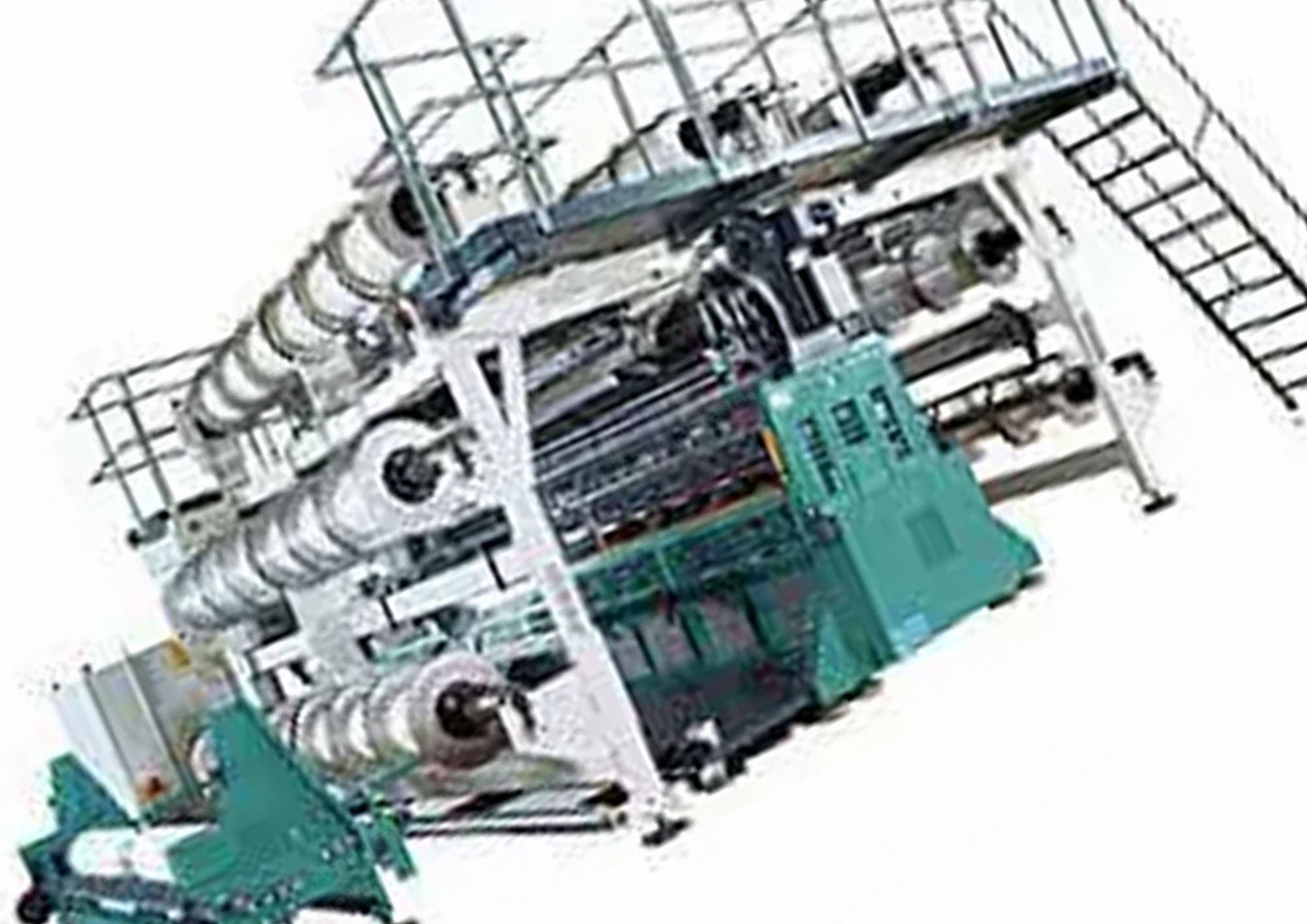

Karl Mayer, RDPJ 7/1 (EL), Double-Bar Raschel Warp Knitting Machine, 3505mm Working Width, E24/E28 Gauge

Karl Mayer, RDPJ 7/1 (EL), Double-Bar Raschel Warp Knitting Machine, 3505mm Working Width, E24/E28 Gauge

Description

  1. Overview
    1. Karl Mayer raschel warp knitting machine model RDPJ 7/1 (EL)
    2. Double-bar jacquard machine with piezo jacquard technology
    3. Applications: shoes, mattresses and bedding, outerwear
    4. Highest flexibility for creative jacquard spacer patterning
    5. El – available with electronic pattern drive for flexible ground structure and pile zones
  2. Specifications
    1. Working width / gauge: 3505 mm = 138 in
    2. E24, E28
    3. Knock-over comb bar distance: 2 to 8 mm, continuously adjustable, central trick plate distance readjustment and stitch comb swivelling device
    4. Knitting elements: two individual latch needle bars, two knock-over comb bars, two stitch comb bars
    5. Warp beam support: 7 × 812 mm = 32 in (free-standing)
    6. Kamcos (Karl Mayer command system) operator interface to configure, control and adjust the electronic functionality of the machine
    7. Fabric take-up: four-roller system, driven by an electronic drive
    8. Batching device: no. 14f-j1
    9. Pattern drive: n-drive with eight pattern disks or pattern drums; el-drive with eight electronic guide bar drives
    10. Electrical equipment: speed-regulated main drive, power-failure safe with separate fine-positioning function, total connected load 29 kva (el: 50 kva)
