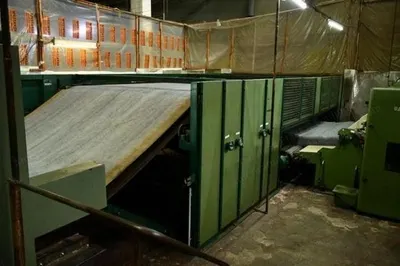

Dilo, Spinnbau Nonwoven Needlepunch Geotextile Line, 1986, 3000mm Working Width, 60 to 500 GSM

Dilo, Spinnbau Nonwoven Needlepunch Geotextile Line, 1986, 3000mm Working Width, 60 to 500 GSM

Description

  1. Overview
    1. Complete needle-punching line by Dilo, Spinnbau, year 1986
    2. Currently running polyester fiber with a density of 60 to 500 gsm
    3. Category: Non woven
    4. Subcategory: Textile and leather manufacturing
  2. Specifications
    1. No. 2 loading hopper by Temafa
    2. No. 2 vibrowell-feeder by Spinnbau 1920-5

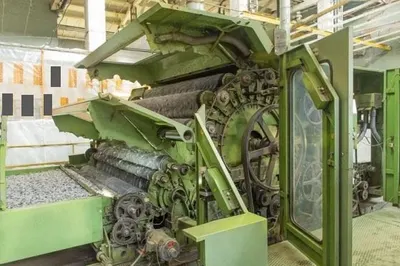

    3. No. 2 double doffer carding machines by Spinnbau, type 216, working width: 2300 mm each, output 400-500 kgs/h each, depending on fibres

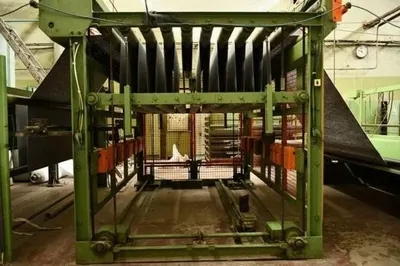

    4. No. 1 cross-lapper by Autefa, inlet width 2500 mm, exit width: 3500 mm, speed 40/45 m/min
    5. Raw material: standard fiber fineness - 3.3 - 17 dtex, fiber length - 38 to 76 mm, final product weight - 100 to 600 g/m

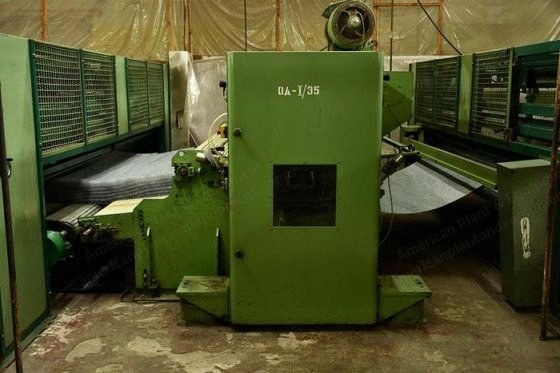

    6. No. 1 pre-needle loom by Dilo, type ODI 35 with CBF unit, working width: 3500 mm, needle density: 4000 n/lin m, stroke: 60 mm
    7. No. 1 double board down-stroke needle loom by Dilo, type ODII 35, working width: 3500 mm, needle density: 4000 + 4000 n/lin m, stroke: 60 mm
    8. No. 2 quadro-punch needle loom by Dilo, type OUG II 30, working width: 3000 mm, needle density: 8000 + 8000 n/lin m top boards + 8000 + 8000 n/lin m bottom boards, stroke: 40 mm
    9. No. 1 fabric accumulator WSP 30/30, 30 ml, width 3000 mm
    10. No. 1 length and cross cutter

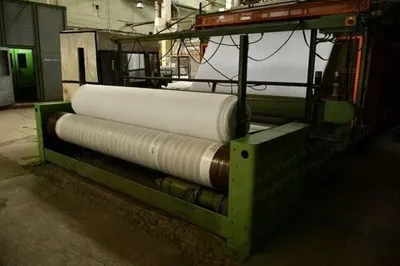

    11. No. 1 roll winder type RS/M30, width 3000 mm, maximum roll diameter of a roll is 1600 mm
    12. All electric motors and control panels
  3. Condition
    1. Used
  4. Year
    1. 1986
