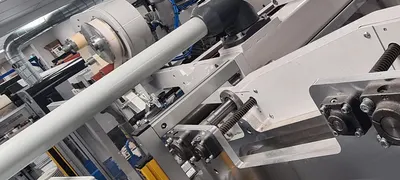

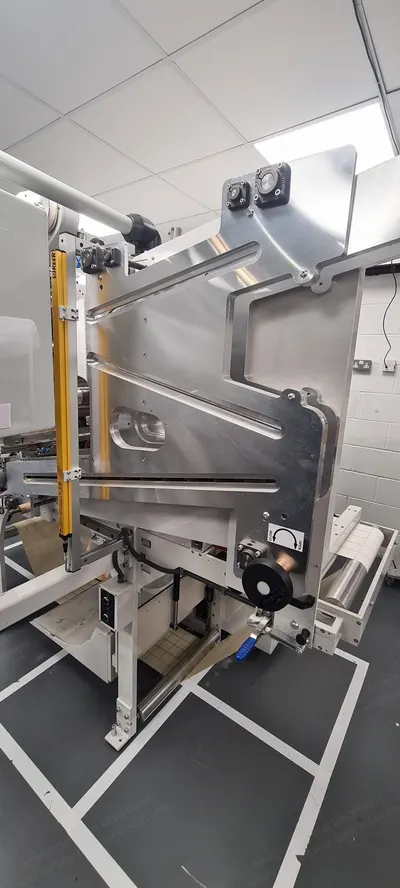

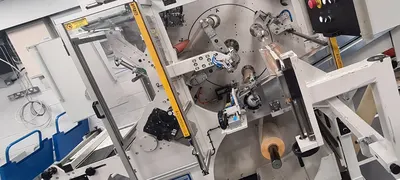

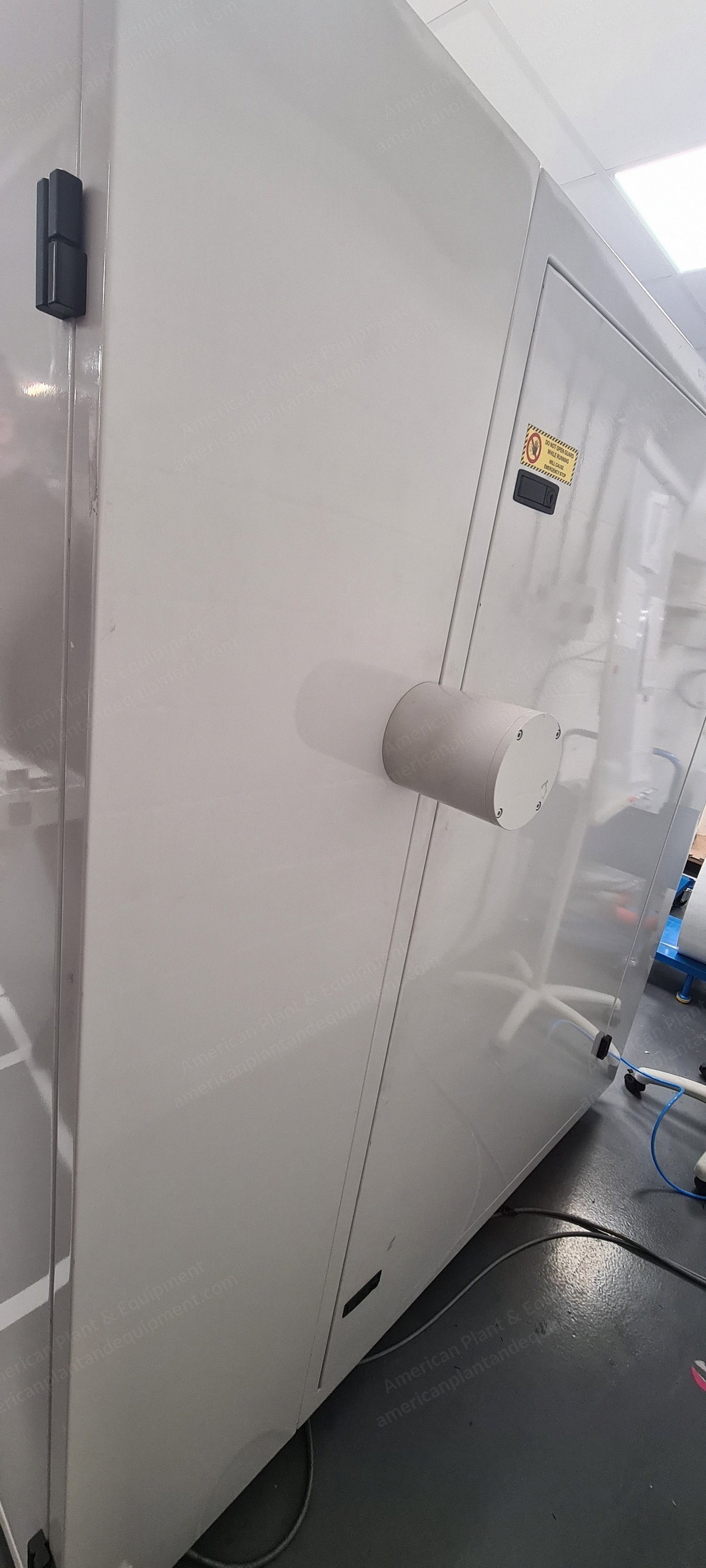

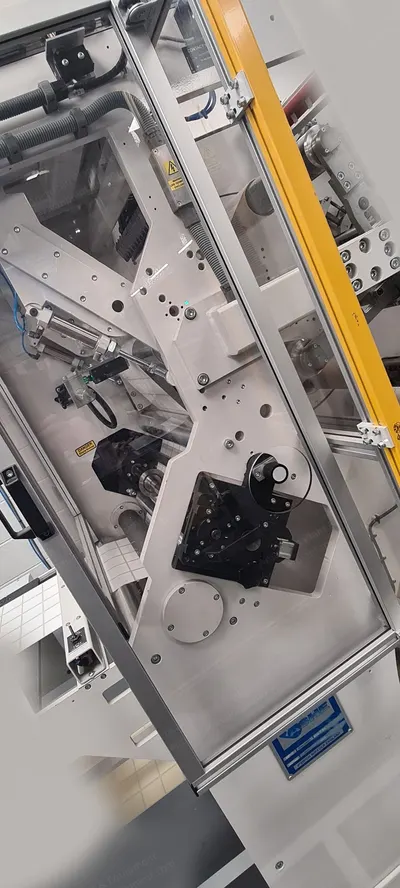

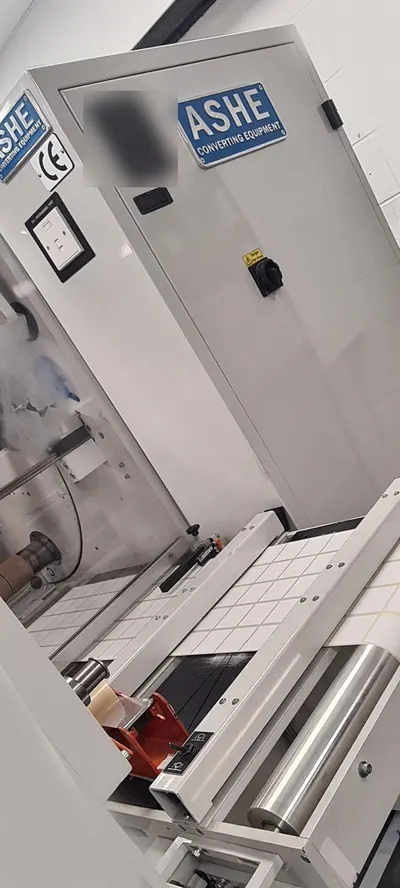

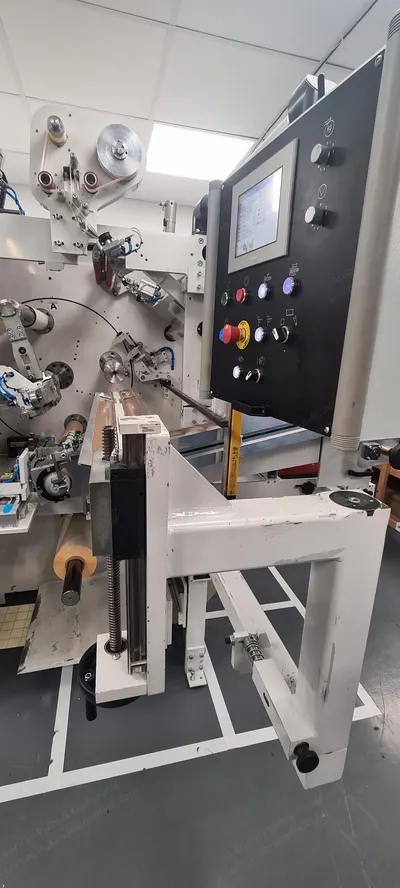

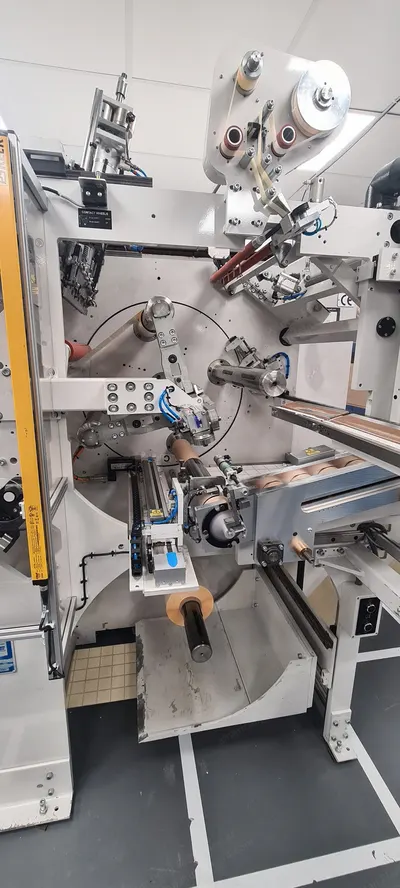

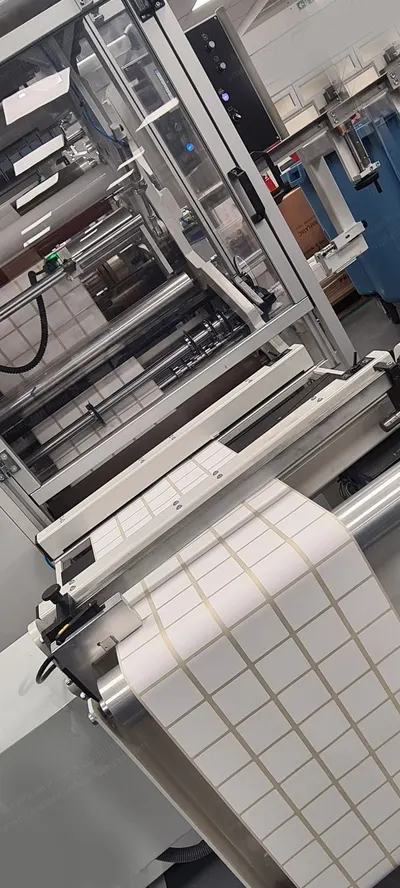

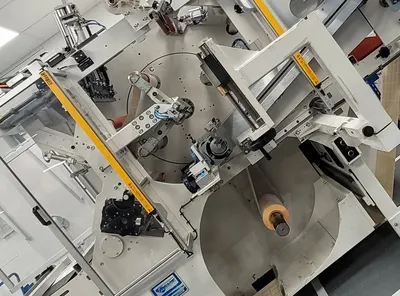

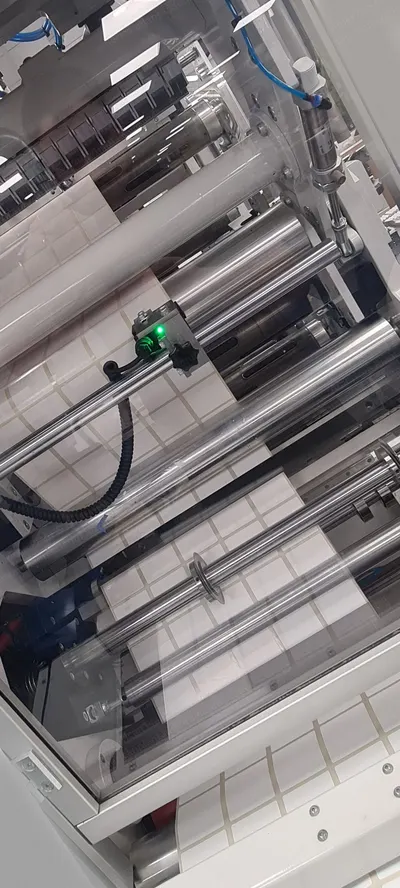

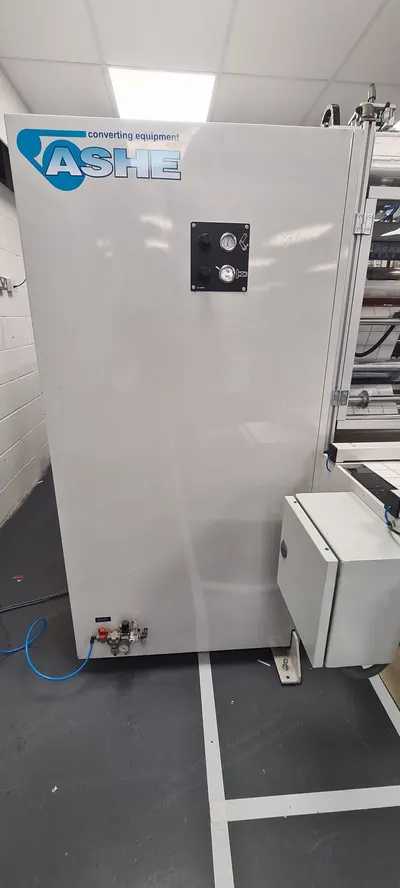

Description Overview Spindle turret label slitter rewinder Installed new December 2020 Material to be run: die-cut self-adhesive labels Specifications Material maximum width: 520 mm Unwind core i/d: 3 inches Slitting facilities: driven rotary shear slitting Minimum slit width: 20 mm Tolerance: 0 to 0.38 mm Rewind: 4 positioned turret Rewind starts i/d: 25 mm, 40 mm, and 76 mm Maximum rewind diameter: 16 inches in 4 spindle mode Maximum machine speed: 250 m/minute Cut and transfer: 100 m/min (40 mm and 76 mm cores); 90 m/min (25 mm cores) Rewind shafts: lug-type air shafts, 4 x each core size listed Minimum cycle time: 25 seconds (based on 5 x slit lanes across) Configuration 1 off base 4 spindle opal 520 turret with 800 mm unwind diameter including 3 inches airshaft and web guide (off-line model) Motorized unwind reel lift 10 sets of rotary shear-slitting knives 4 x 25 mm rewind airshafts 4 x 76 mm rewind airshafts Glue-less cinch start facility Label tail closure (standard system - no print) Automatic core loader via chute system for 25 mm, 40 mm, and 76 mm id cores (od 31 mm, 46 mm, 82 mm) Additional contrast sensor for cycle cut to mark feature Rewind shaft support during the turret cycle Automatic rewind offload system to offload chute Counter off during run facility via pushbutton Notes Machine speed is dependent upon the material to be run, material quality finished reel profile, and operator skills
