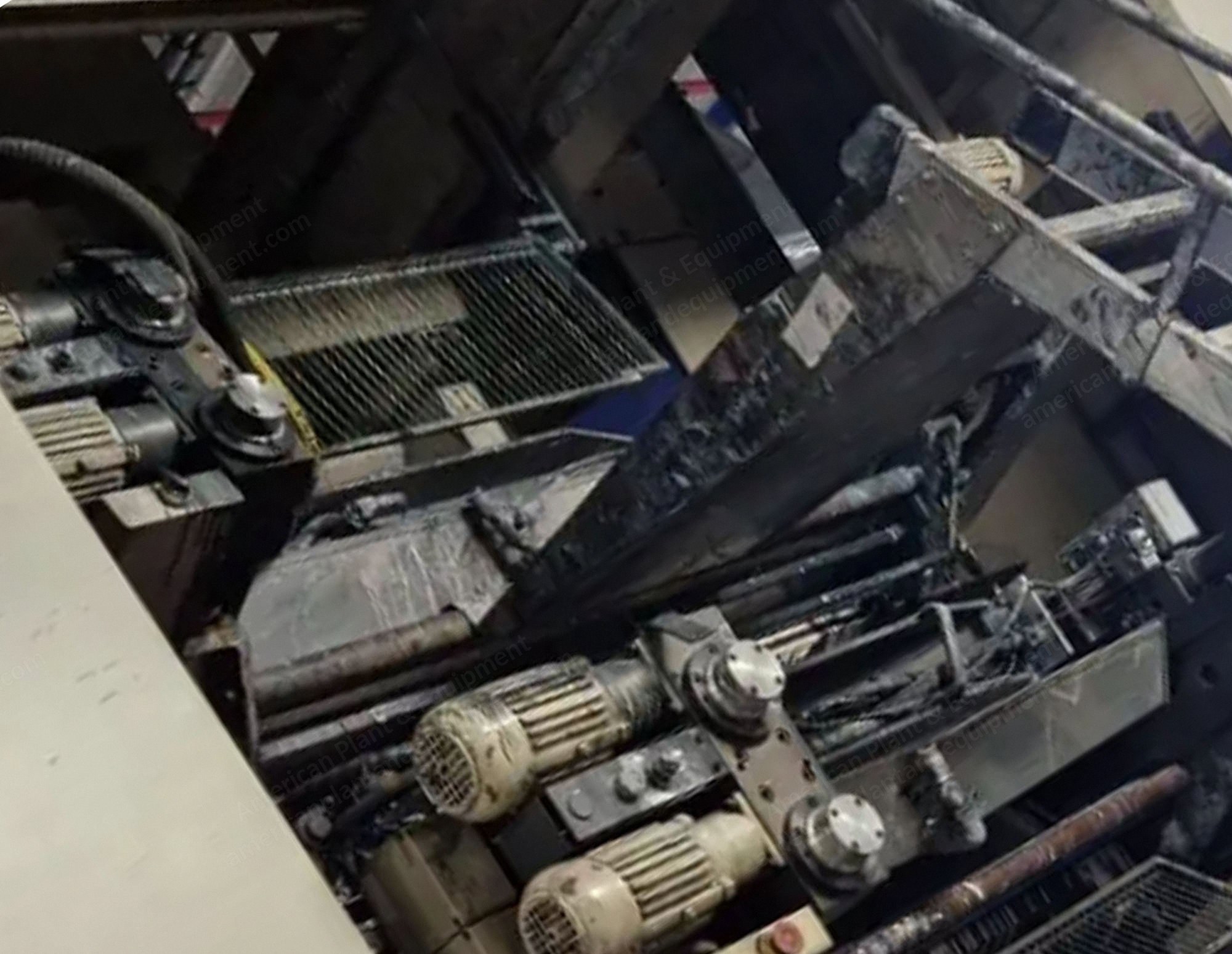

F&K, 34DF, 1996, 8 Colors, 1300mm Max Web Width, Geared, Gas Drying

F&K, 34DF, 1996, 8 Colors, 1300mm Max Web Width, Geared, Gas Drying

Description

  1. Overview
    1. Manufacturer: F&K
    2. Model: 34DF
    3. Year: 1996
    4. Type: Central impression (cl) or stack, geared
    5. Ink types: Solvent based, prepared for UV
    6. Number of colors: 8
  2. Specifications
    1. Max web width: 1300 mm
    2. Max printing width: 1250 mm
    3. Min to max printing repeat: 380 to 1100 mm
    4. Max mechanical speed: 350 m/min
    5. Unwind type: Semi-automatic turret, shafted
    6. Max unwind reel diameter: 1000 mm
    7. Rewind type: Semi-automatic turret, shafted
    8. Max rewind reel diameter: 100 mm
    9. Number and size of airshafts: 5 x 3', 5 x 6'
    10. Drying type: Gas
    11. Video camera: Yes
    12. Auto clean: Yes
    13. Inline slitting: Yes
    14. Mounting device: Optional
  3. Included Components
    1. Number of aniloxes: 14 (see list)
    2. Number of sleeves: 312 (see list)
    3. Number of printing cylinders: 180 (see list)
    4. Number of air cylinders: 83 (see list)
    5. Number of gears: 280
    6. Mounting robot for print cylinders and aniloxes
    7. Transport trolleys
  4. Condition and Availability
    1. Available from: Now
    2. Machine can be seen in production: Yes
    3. Subject to unsold; specifications and lists supplied are based solely upon those provided by the original owners.
    4. Although still of the geared generation of flexographic printers, this machine is interesting for multiple reasons: it is manufactured by Fischer & Krecke, which means it is a reliable machine; it has a very large print length of 1100 mm; and it comes with many aniloxes, sleeves, and cylinders.
