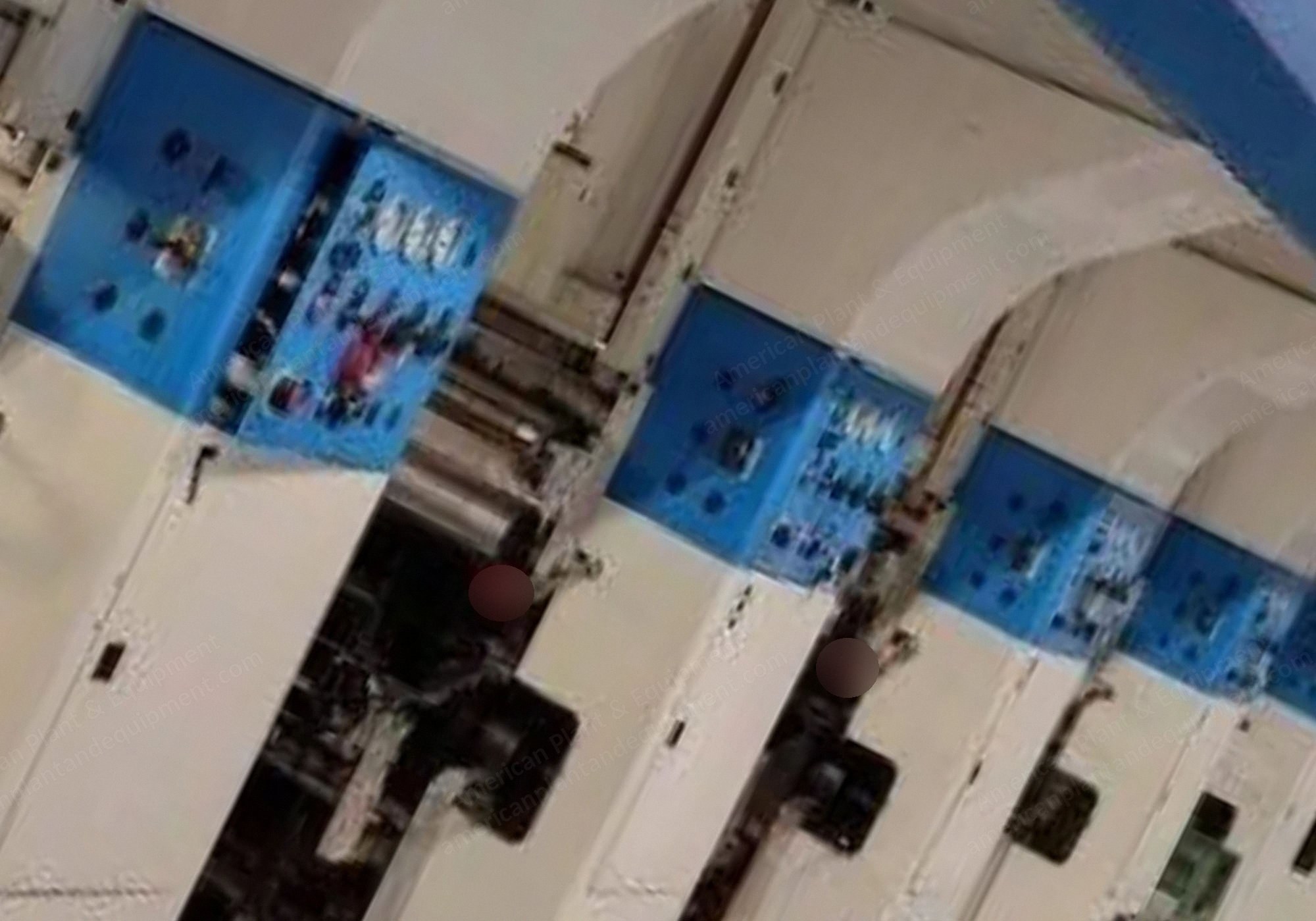

Rotogravure printing press specially designed for paper applications because of the relatively big winder; can take rolls up to 1300 mm diameter.
Produced by Rotomec (now integrated in Bobst), known as one of the best manufacturers of rotogravure presses worldwide.
Specifications
Max. web width: 1400 mm
Max. printing width: 1320 mm
Min. to max. printing repeat: 420 to 920 mm
Max. mechanical speed: 300 m/min
Drying type: Thermic oil
Video camera: Grafikontrol
Viscosity control: Covistat
Unwind and Rewind
Unwind type: automatic turret
Unwind shafted/shaftless: shafted
Max. unwind reel diameter: 1300 mm
Rewind type: automatic turret
Rewind shafted/shaftless: shafted
Max. rewind reel diameter: 1300 mm
Airshats
4 x 76 mm
4 x 152 mm
4 x 120 mm
Cylinders and Sleeves
Number of cylinders/sleeves: optional, 1500 cylinders
Condition
In good condition and can be seen running.
Subject to unsold. Although believed to be correct, the machine specifications and lists supplied are based solely upon those provided by the original owners.
