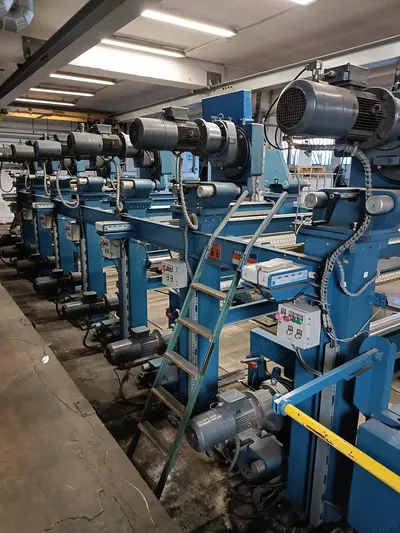

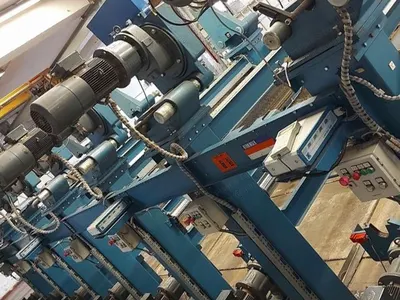

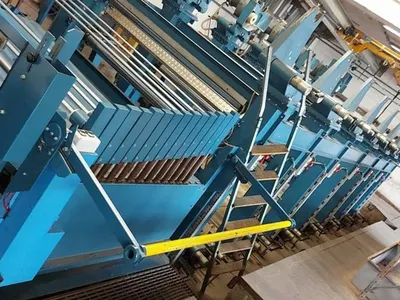

Unwinding with independent motors, each position with electronic control by inverters

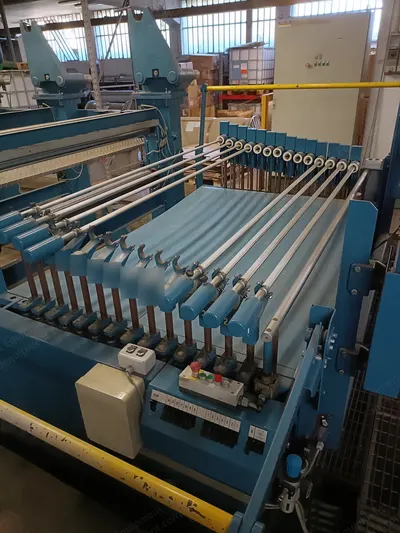

Pneumatic leasing PK14, 14 bars, each bar with independent control by two pneumatic pistons for standardizing of yarn tension

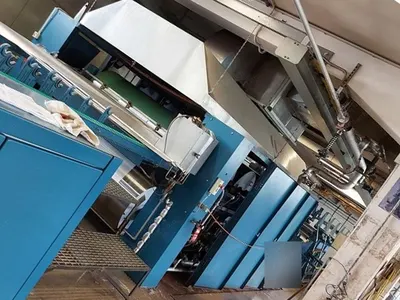

Sizing and drying
Calender with 2 bowls for yarn tension control

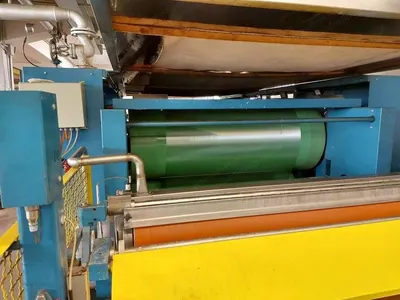

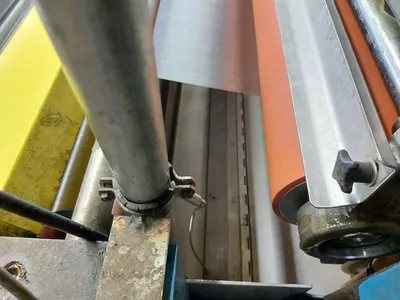

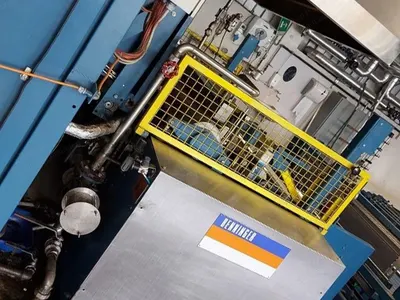

Single sizing box with double squeezing cylinders, width 1950 mm

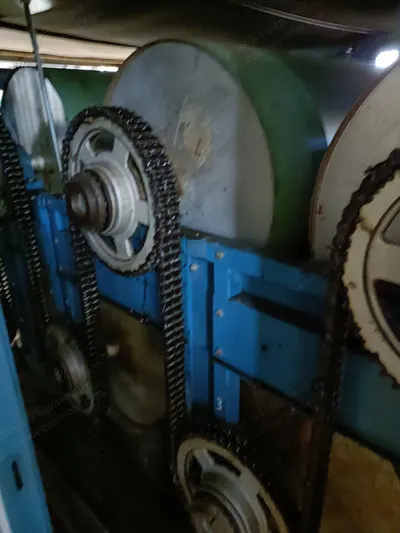

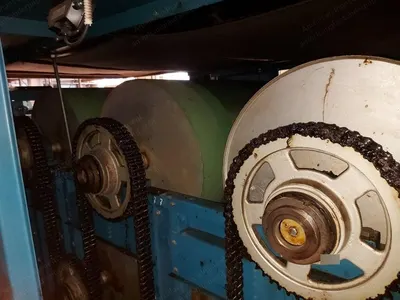

9 drying cylinders, teflon covered, width 2000 mm, flange diameter 800 mm

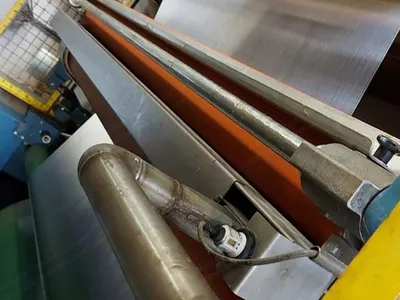

Antistatic application tank with 3 roll-sensors for residual humidity control on the yarn and consequent adjustment of speed according to the set humidity
Motorized cylinder

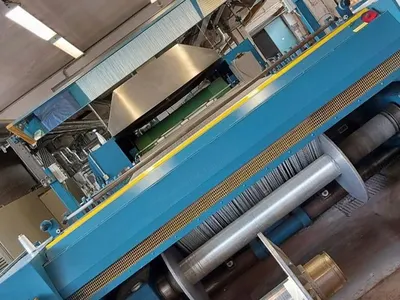

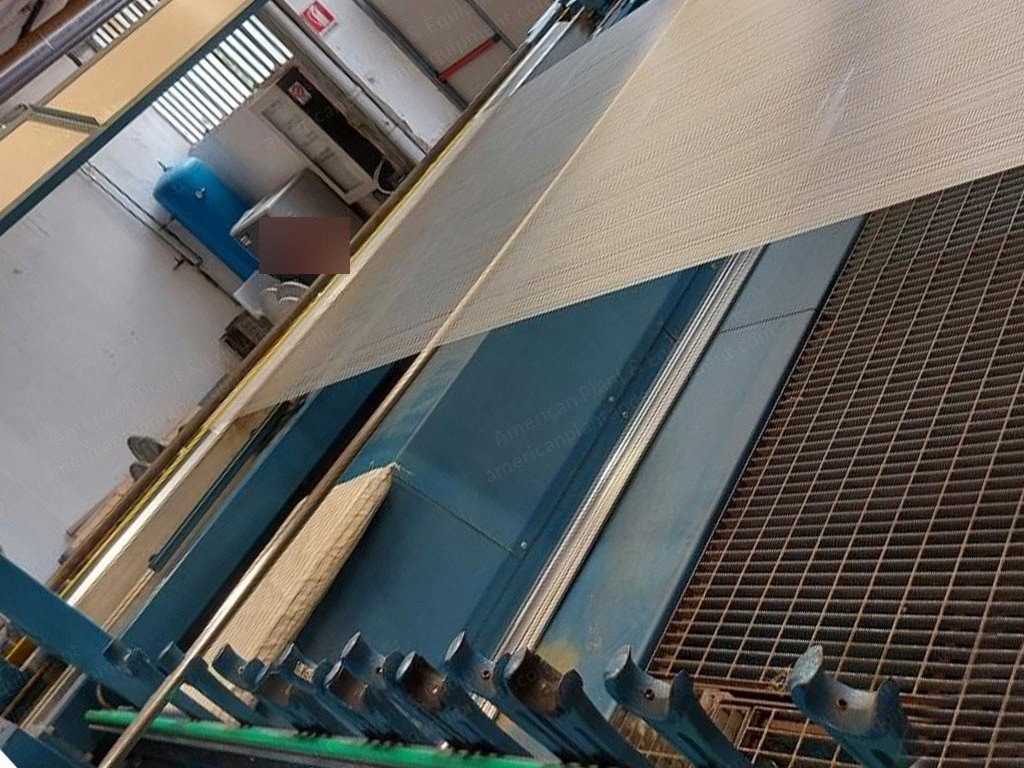

Yarn separation and headstock
14 supports on both sides for yarn separating bars
Headstock with extensible reed for beaming width adjustment (from 1000 mm to 2550 mm)
Cylinders width 2550 mm
Beams flange diameter 1000 mm

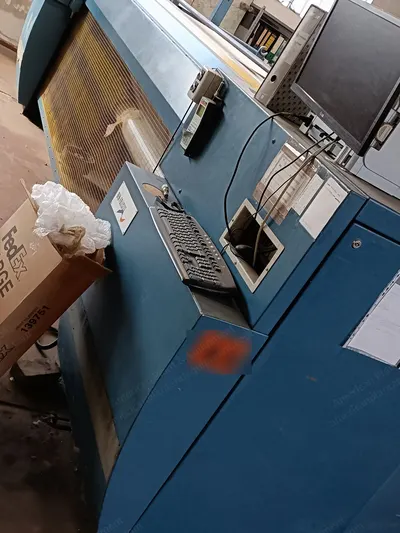

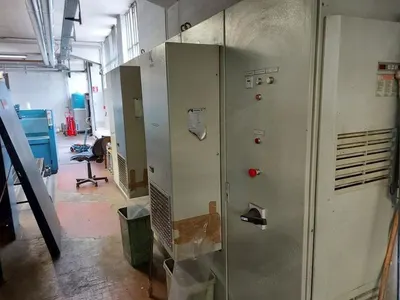

Siemens monitor, electronic speed control
Sizing kitchen

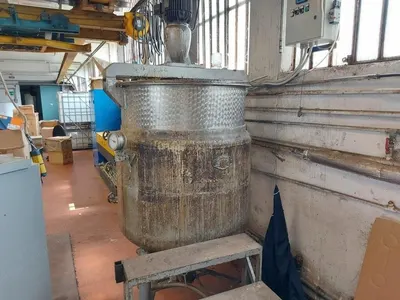

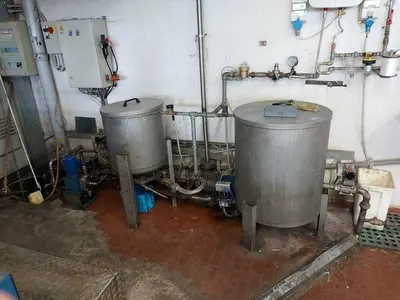

Ben-Mix mixer with 2 tanks for antistatic sizing preparation
Condition and logistics
Due to sudden change in the program of the property, which must settle in the same space where the Benninger sizing machine is installed, a price reduction has been established for this machine and possibly including the disassembly and loading operation in containers, but on the other hand the machine must be purchased paid for and loaded into containers in 2 weeks
Loaded into 3/4 containers 40' h.c.
