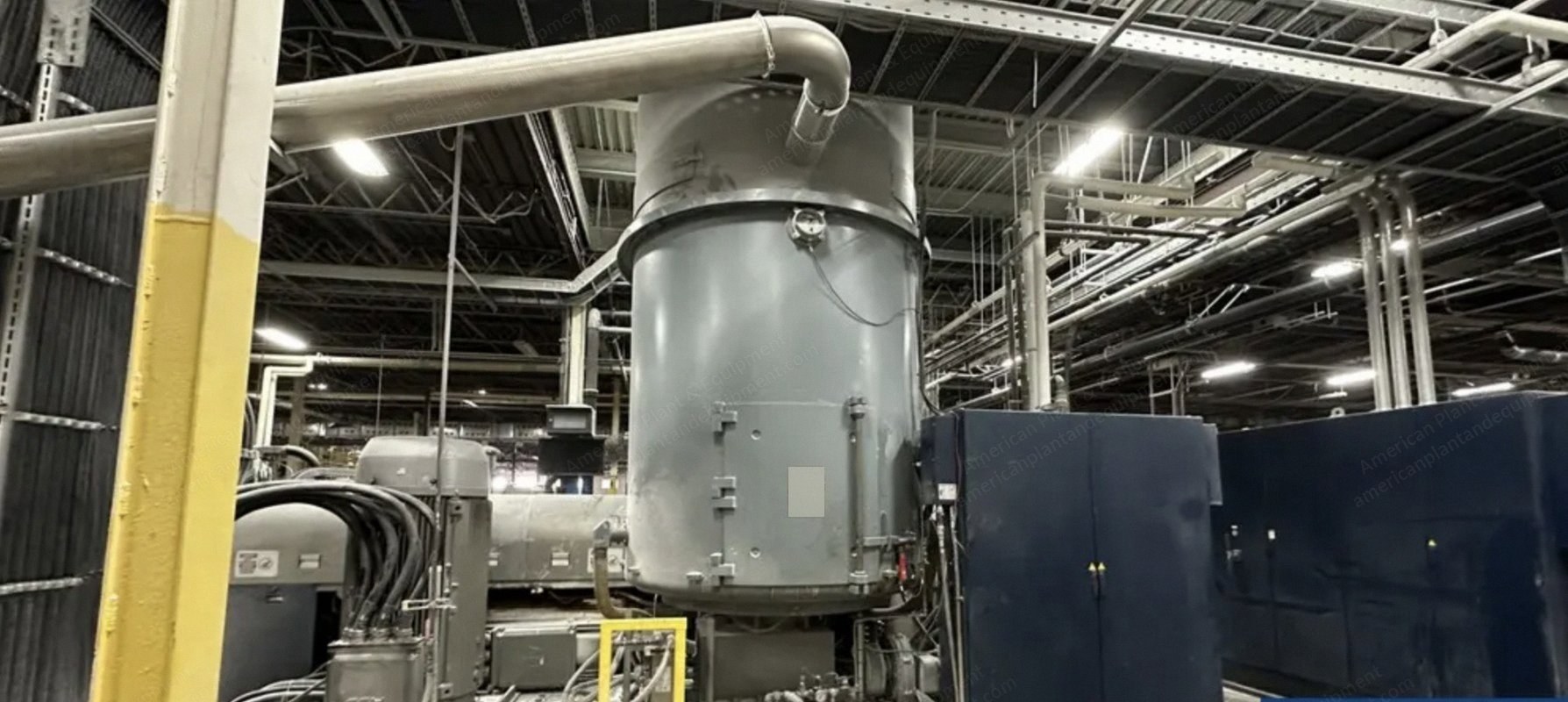

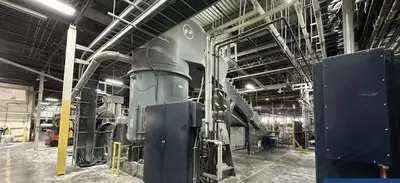

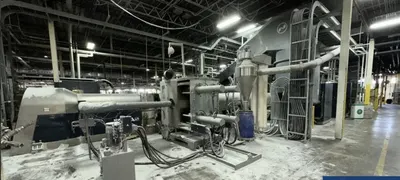

Erema, Intarema 2021 T-VEPlus, 2018, 2200 to 3500 kg/hr, 212mm Extruder

Erema, Intarema 2021 T-VEPlus, 2018, 2200 to 3500 kg/hr, 212mm Extruder

Description

  1. Overview
    1. Intarema 2021 T-Veplus pelletizing line
    2. Year: 2018
    3. Main category: Plastics
    4. Subcategory: Extrusion line
    5. Nominal capacity range 2200 to 3500 kg per hour depending on feed material
    6. Currently with 8410 run hours
  2. Condition
    1. Good

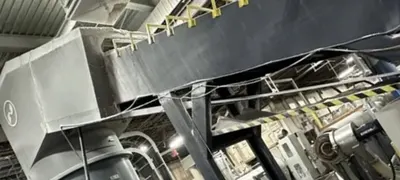

  3. Feed Conveyor
    1. Fb_10000_1200_sh cleated feed conveyor, 1200 mm (47) wide x 10000 mm (393) long cleated inclined belt
  4. Metal Detector
    1. Dtf 1440/1200/600 pass thru over belt metal detector, 600 mm (23.6) tall opening
  5. Extruder
    1. Erema Intarema extruder, model I_2021_T_Veplus with Ecosave
    2. 2000 mm (78) diameter preconditioning densifier with Ins_autom_180_300 automatic input slider
    3. 73 in diameter 4 blade rotor, under driven by 500 kW (670 hp) AC motor
    4. 212 mm diameter single screw melt extruder, 3s technology mixing, driven by 560 kW (750 hp) AC motor
  6. Exhaust System
    1. Sas_2500 powder exhaust system with cyclone collector and blower for preconditioning densifier
  7. Screen Changer
    1. Sw_8_250_rtf backflush filter screen changer, 4 position with (8) 250 mm diameter screens, 7.5 kW hydraulic power pack
  8. Degassing Extruder
    1. Erema cascade degassing extruder, driven by 350 kW (469 hp) AC motor
    2. Dual side degassing vents with 7.5 hp liquid ring vacuum pump system with Bwb_1500_s water system with 2.2 kW circulation pump and stainless steel water basin
  9. Pelletizer
    1. Hg_344d hot die face pelletizer driven by 2.2 kW (2.9 hp) AC motor with (6) blade cutting head
    2. Stainless steel water ring housing with Wsp_700 water pump station with heat exchanger and circulation pump
  10. Pellet Dewatering and Drying
    1. Gs_3010_1000 pellet dewater screen, stainless steel screen deck, driven by dual 0.55 kW vibro motor with water catch basin
    2. Gz_1000_m22 centrifugal pellet dryer, 500 mm (19.6) diameter driven by 22 kW (29.5 hp) AC motor
  11. Pellet Transport System
    1. Pellet transport system with cyclone collector with rotary air lock and blower
  12. Controls
    1. Integrated El_smart operator HMI control station, control panels with PLC controls, and extruder motor frequency controllers
