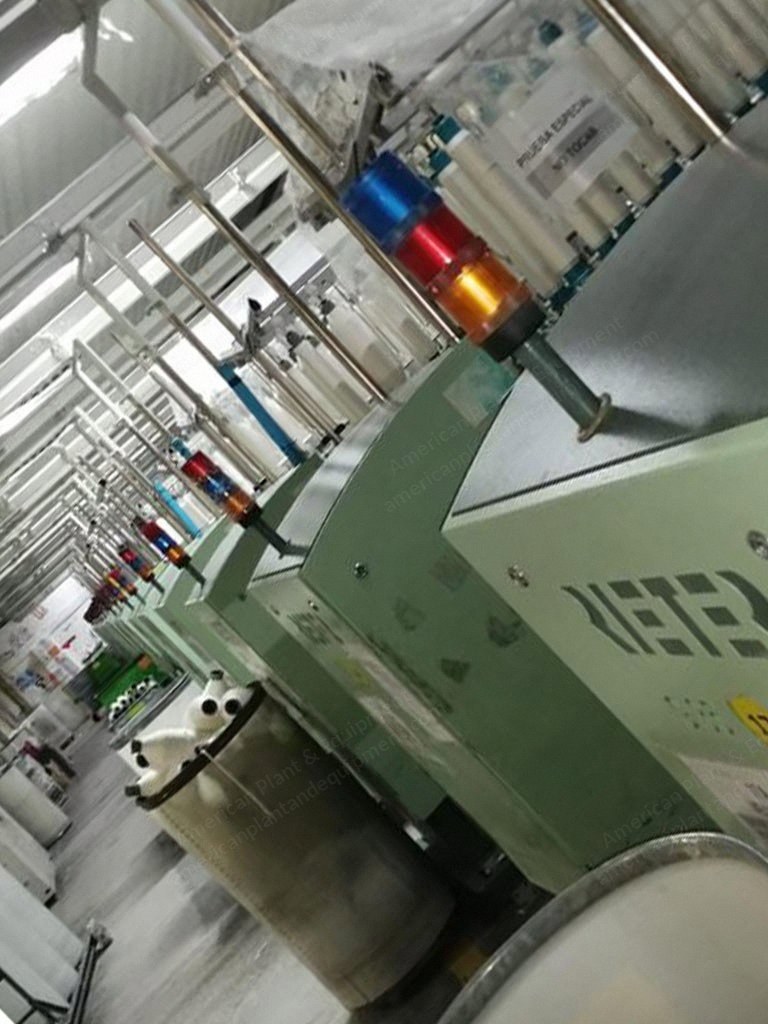

Rieter, Unifloc A11, 2010, High Production Bale Picker, 1300 kg/hr, 440V

Rieter, Unifloc A11, 2010, High Production Bale Picker, 1300 kg/hr, 440V

Description

  1. Overview
    1. Complete Rieter spinning line from 2010 to 2016, including bale opening, cleaning, carding, drawing, combing, roving, ring spinning, winding, and laboratory equipment.
  2. Opening And Cleaning

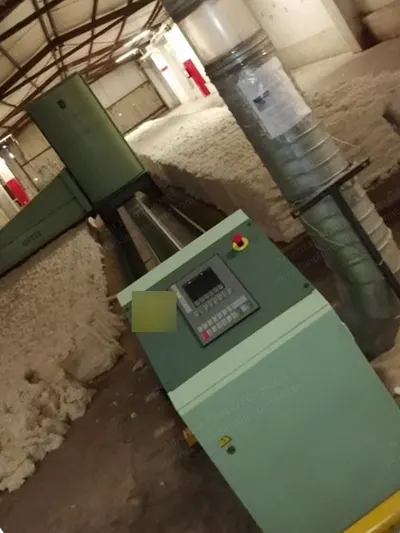

    1. 1 Unifloc A11 Rieter 2010 high production bale picker, 1300 kg/hd, 440 volts.
    2. 1 Uniclean cotton B12 Rieter 2010 dust machine with electronic control, 1600 kg per hour.
    3. 1 feed box Rieter 2010.
    4. 2 cotton opener B60 Rieter 2010 fine opener and automatic separator, 440v, production 520 kg per hour.
    5. 1 Unimix B71 Rieter 2010 silo cotton mixer with opener, 800 kg per hour, 440 volts.
    6. 2 cleaners A21 Rieter 2010 fine perforate drum, 440v.

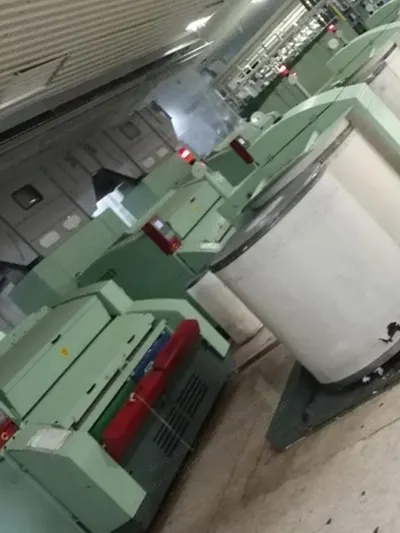

  3. Cards
    1. 2 cards mixed coating C-60 Rieter 2010 card producing sliver, 1200mm can, electronic regulation for 150 kg per hour.
    2. 6 cards 100% cotton ring C-60 Rieter 2010 card producing sliver, 1200mm can, electronic regulation for 150 kg per hour.
    3. 4 cards cotton C-60 Rieter 2010 card producing sliver for 1200mm can, electronic regulation for 150 kg per hour.

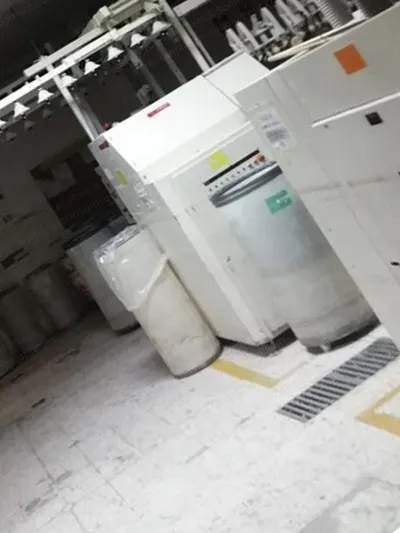

  4. Drawing Frames
    1. 1 drawing frame 1st step mix SB20 Rieter 2010, 2 outlets for 600mm can, production of 250 kg per hour, 440 volts.
    2. 3 drawing frame 2nd step mix SB20 Rieter 2010, 2 outlets for 600mm can, production of 250 kg per hour, 440 volts.
    3. 5 drawing frame 3rd step mix RSB-D40 Rieter 2010 autoregulator for can 600mm, 440 volts, production 150 kg per hour, 6 bar.
    4. 3 cotton drawing frame combers SB20 Rieter 2010, 2 outlet for 600mm can, 440v, production of 280 kg per hour.
  5. Combing Preparation And Combers

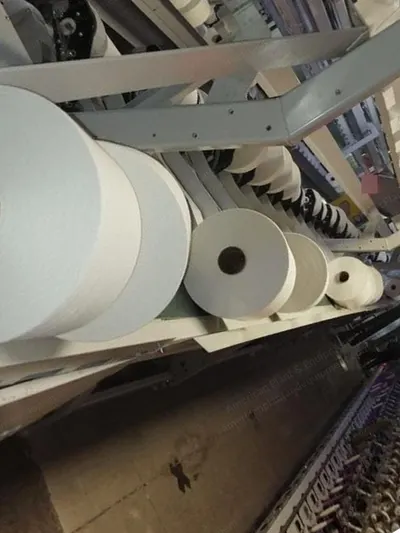

    1. 3 Unilap E32 Rieter 2010 to feed combing rolls, automatic belts to rolls, 440v.
    2. 14 combers E76 Rieter 2010 high production cotton comber, 440 strokes/min with fixed combs, 440v.
    3. 1 Servo lap E25 Rieter 2010 intelligent robot overhead feeder of rolls for comber, 440v with control panel.
    4. 1 Eolis comber plant 2010.

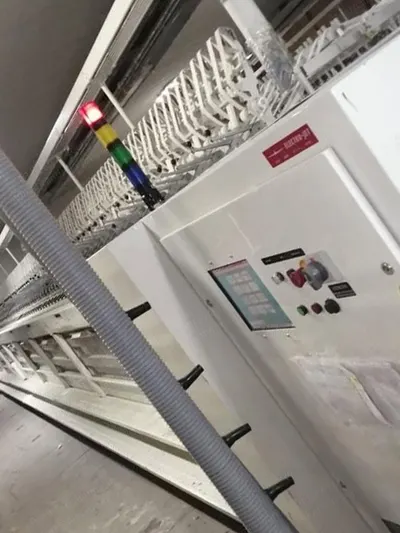

  6. Roving Frames
    1. 1 roving frame 144 spindles each Electro Jet 2010 automatic doffing frame with digital display, 440v, 6 bar, production 160 kg per hour.
    2. 1 roving frame 144 spindles each Electro Jet 2013 automatic doffing frame with digital display, 440v, 6 bar, production 160 kg per hour.
    3. 2 roving frame 144 spindles with Electro Jet 2016 automatic doffing frame with digital display, 440v, 6 bar, production 160 kg per hour.
  7. Ring Spinning Frames
    1. 17 spinning frame 1536 spindles each G35 Rieter 2010 ring spinning machine with automatic delivery for counts of 12ne, high speed, gauge 70mm, diameter 38 to 40mm titan, automatic doffing, pneumatic arm.
  8. Travelling Cleaners
    1. 8 Electro Jet 2010 travelling cleaners.
    2. 3 Electro Jet 2013 travelling cleaners.
    3. 7 Electro Jet 2016 travelling cleaners.
    4. 11 Electro Jet travelling cleaner for winders.
    5. 7 Electro Jet cone year 2016 travelling cleaner for winders.

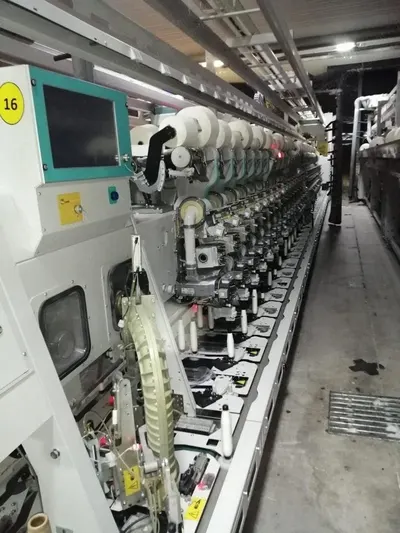

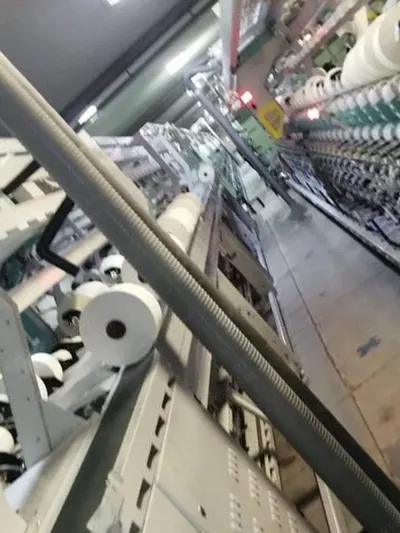

  9. Winding Machines
    1. 5 Polar I Savio winders 33 spindles each year 2010, 33-position with thread cleaners and automatic doffing trolley speed 1500 meters/min, 440 volts, clearers: Uster - Loepfe, with splicers.
    2. 6 Polar I DLS Savio winders 33 spindles each year 2010, 33-position thread winder and automatic doffing trolley speed 1500 meters/min, 440 volts, clearers: Uster - Loepfe, splicer knotter.
    3. 7 Savio Pulsar winders 33 spindles each year 2016, 33-position thread winder and automatic doffing trolley speed 1500 meters/min, 440 volts, clearers: Uster - Loepfe, splicer knotter.
  10. Central Continuous Rooms
    1. 1 central continuous room 3 Eolis 2010.
    2. 1 central de coneras room 3 Eolis 2010.
  11. Laboratory Equipment
    1. 1 Uster tester, laboratory equipment for slivers and yarns with graphic Uster, 440v.
    2. 1 Gotech reel, year 2000, laboratory equipment, 440v.
    3. 1 dynamometer, year 2014, measuring equipment for tensile strength spun yarn ring and open end international digital, 440v.
    4. 1 Uster LVH spectrum, year 2000, equipment to measure length, color and dirt international cotton microniere, 440v.
    5. 1 Ile Seriplane, year 1998, equipment to compare yarn appearances, 440v.
    6. 1 Ile winder, year 1998, equipment to measure length of sliver for textile laboratory, 440v.
  12. Compressed Air And Press
    1. 1 Kaesser compressor 200 hp 2011.
    2. 1 Atlas Copco 2000 dryer.
    3. 1 Hergeth press 1200 lbs.
  13. Specifications
    1. Plant context: Part of a cotton combed spinning plant with 26,112 spindles
