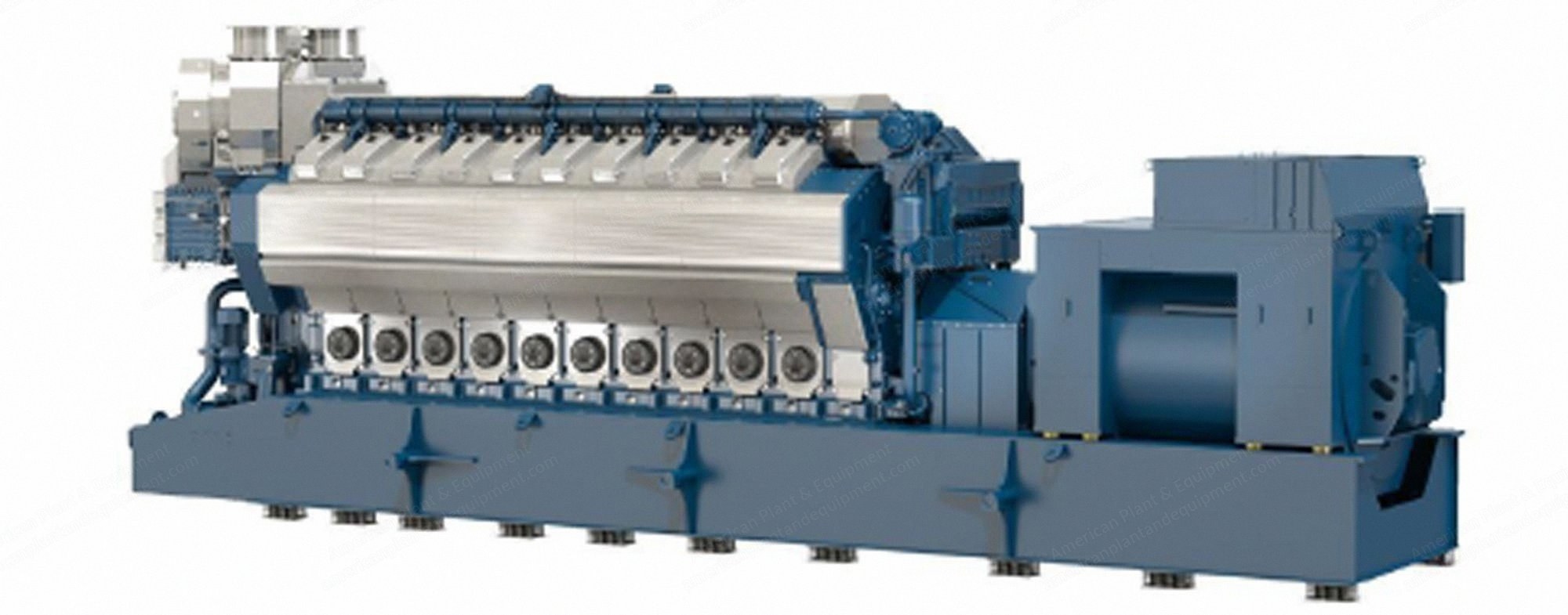

Wartsila, 20V34SG, 2022, 9.75 MW, 50Hz, Gas Engine Generator

Wartsila, 20V34SG, 2022, 9.75 MW, 50Hz, Gas Engine Generator Sold

Description

  1. Overview
    1. Wartsila gas engines type 20v34sg
    2. Gross electrical output approximately 9.75 mw each
    3. Year built in 2022
    4. Complete new with guarantee
  2. Performance
    1. Preliminary performance data
    2. Gross electrical power: 39,120 kwe, specified at the generator terminals
    3. Gross heat rate: 7,832 kj/kwh, specified at the generator terminals
    4. Given at +25°c, 30% rh and 100masl ambient conditions with ±0% tolerance, 11 kv generator voltage, gas methane number >80, lhv >30mj/nm3, gas pressure min 5 bar(g), power factor 0.8
    5. Refer to exhibit d for detailed performance figures. Performance figures provided with 0% tolerance.
  3. Generator Alternatives
    1. Alternative 1: 4 pieces make abb: amg 1120 ls08 / 12.163kva, 6,3kv / 50hz
    2. Alternative 2: 4 pieces make avk: dig 167 f/8 / 11.235kva, 11kv / 50hz
    3. Alternative 3: 4 pieces make avk: dig 167 k/8 / 12.163kva, 11kv / 50hz
  4. Scope Of Supply
    1. Based on limited information available, scope of supply offered is given at a general level as described below. Refer to the scope of supply list attached.
    2. Scope typically includes:
      1. Basic engineering of the plant
      2. Detailed design of all wartsila supplied equipment
      3. Generating sets and automation/control system
      4. Auxiliary equipment needed for the power generation
      5. Medium voltage and low voltage switchgears
      6. Technical advisors for technical assistance during installation
      7. Technical advisors for technical assistance during commissioning
      8. Training on site
      9. Plant operating manuals
    3. Scope typically excludes:
      1. All civil material and work
      2. Installation and supervision
      3. All site management and site offices
      4. Piping material, cables and tanks
      5. Exhaust gas emission cleaning equipment (if required)
      6. Switchyard and step-up transformers
      7. Any other work or services not mentioned here
