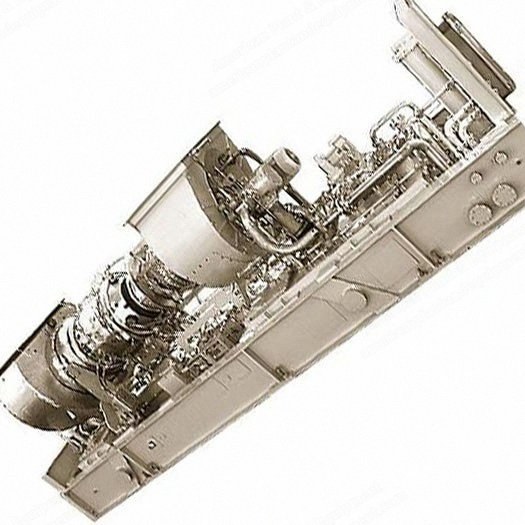

Solar, Mars 90, 2004, 9.450 MW, Turbine Speed 15200 RPM

Description

Overview
1. Used engine and power turbine (no generator)
Specifications
1. Power output: 9.450 MW / 9.690 MW
2. Efficiency: 31.9% / 33.2%
3. Heat rate: 11,300 kj/kwh / 10,830 kj/kwh
4. Pressure ratio: 16.3
5. Exhaust mass flow: 39.7 kg/s
6. Exhaust temperature: 465 °c
7. Turbine speed: 15,200 rpm

Capacity	9.450 MW
Type	Engine and Power Turbine (No Generator)
