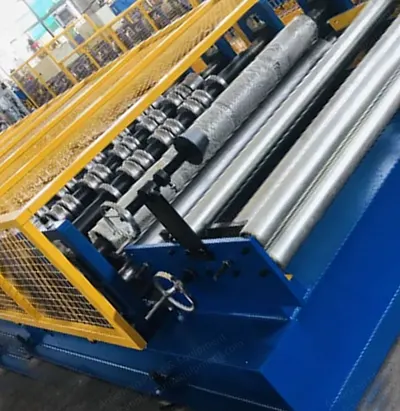

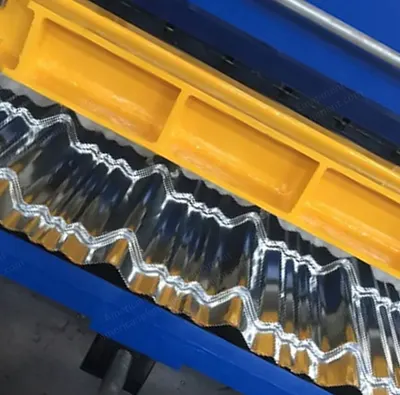

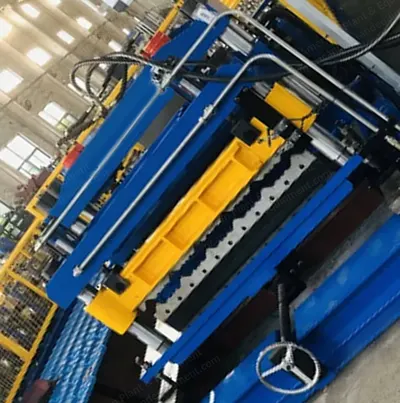

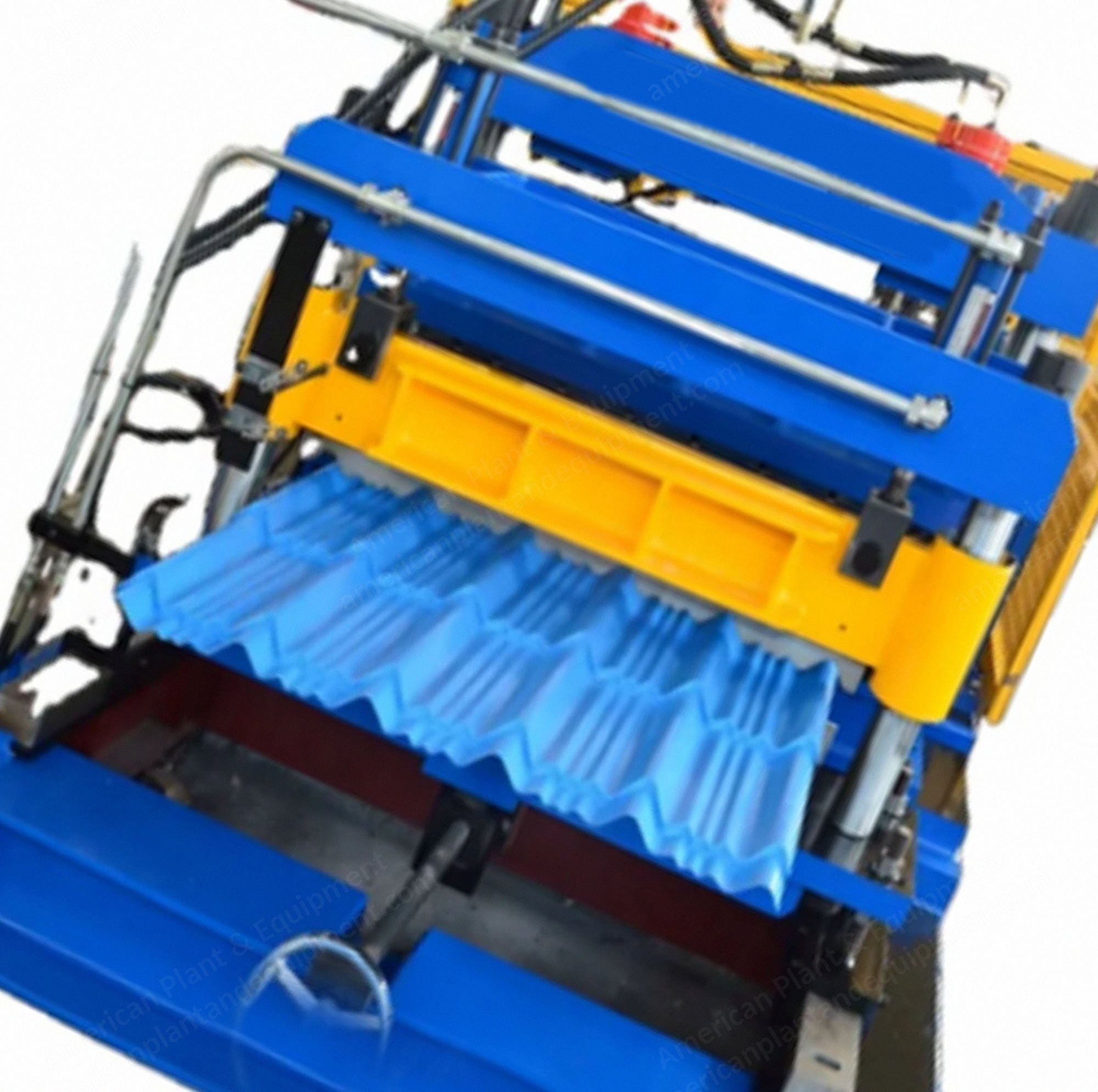

NovaStar, RR103, Roll Forming Machine, New, 0.3 to 0.8mm Thickness, 7.5 kW, 1000mm Feeding Width (New)

NovaStar, RR103, Roll Forming Machine, New, 0.3 to 0.8mm Thickness, 7.5 kW, 1000mm Feeding Width

Description

  1. Specifications
    1. Power: 7.5 kW
    2. Voltage: 480 V, 60 Hz, 3 phases
    3. Main power: 5.5 kW
    4. Hydraulic station: 7.5 kW
    5. Production capacity: 6 m/min
    6. Production speed: 5-6 m/min
    7. Rolling thickness: 0.3 to 0.8 mm
    8. Material thickness: 0.4 to 0.7 mm color steel
    9. Feeding width: 1000 mm
    10. Roller stations: About 16 roller stations
    11. Way of drive: Chain driven
    12. Shaft material and diameter: 75 mm, material is 45# forge steel, chrome with quenching
    13. Hardness: HRC 58-62
    14. Material of cutting: Cr12MoV
    15. Control system: PLC (Delta) or Panasonic
    16. Core components: Pressure vessel, motor, bearing, gear, pump, engine, PLC
    17. Weight: 8000 kg
    18. Dimension (L x W x H): 8700 x 1600 x 1400 mm
  2. Condition
    1. Condition: New
    2. Warranty: 1 year
    3. Warranty of core components: 1 year
    4. Machinery test report: Provided
    5. Video outgoing-inspection: Provided
  3. Included
    1. Standard sea package with film and steel

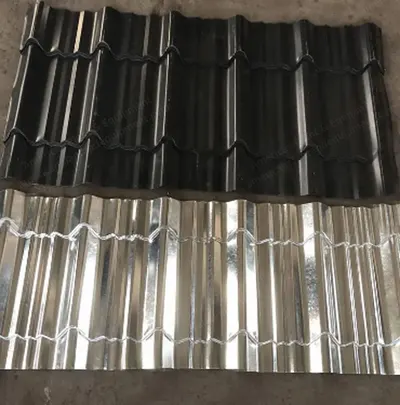

    1. Supply ability: 10 sets per month glazed roofing tile roll forming machine
