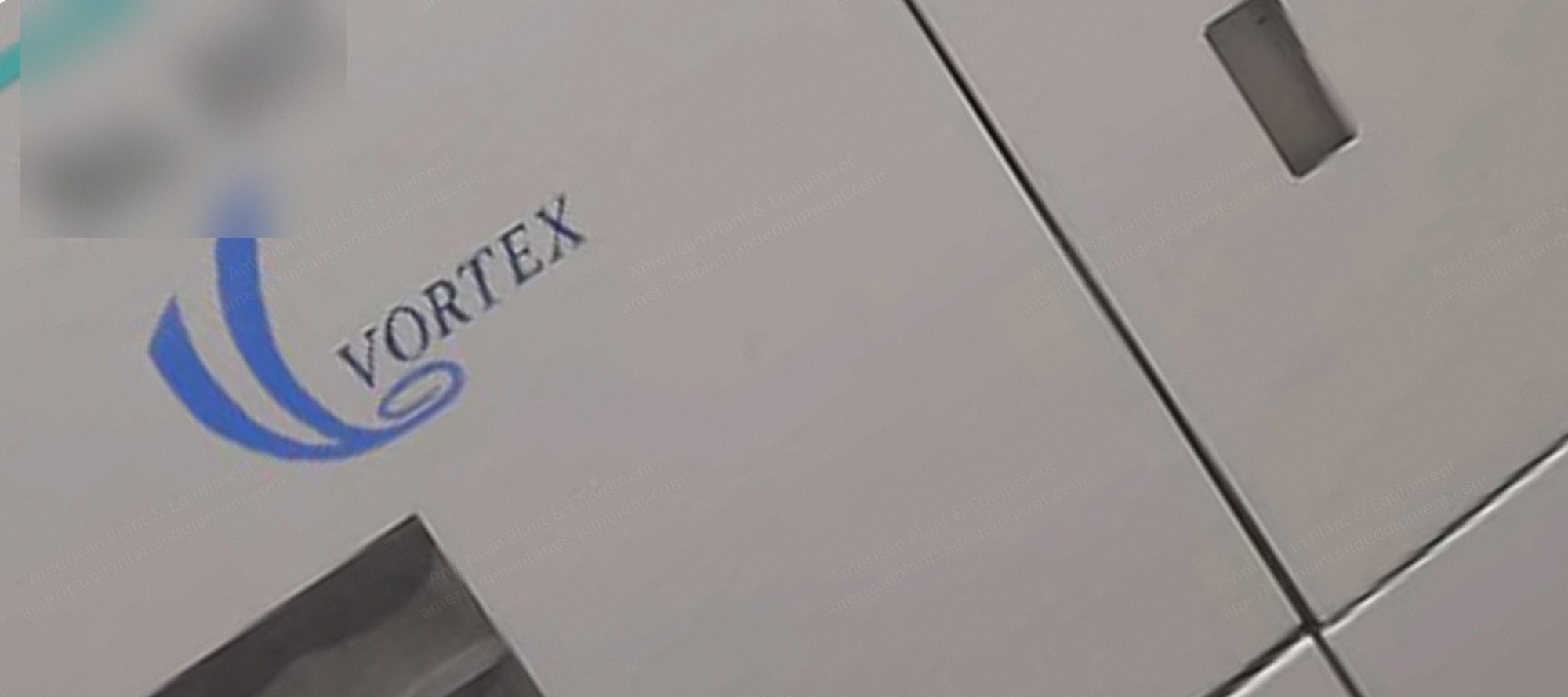

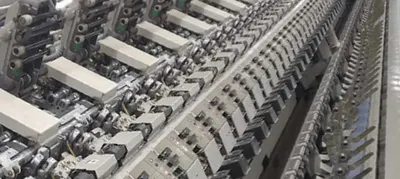

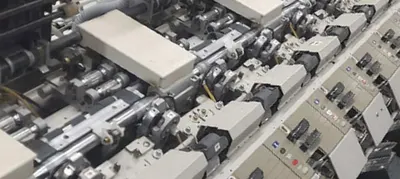

Muratec, Vortex 861, 2008/2009, 80 Spindles, Left Hand, 380V

Muratec, Vortex 861, 2008/2009, 80 Spindles, Left Hand, 380V

Description

  1. Overview
    1. Brand: Muratec
    2. Model: Vortex 861 MVS
    3. Machine hand: left hand
    4. Year: 2008 (1 unit), 2009 (5 units)
  2. Spindle Specifications
    1. Number of spindles: 80
    2. Spindle type: super fat
    3. Spindle size: SF1.2 and SF1.3 mm
    4. Conicity: 4º20
    5. Traverse: 6 inches
  3. Feed and Doffer
    1. Feed can size: 18 to 20 inches (4 lines)
    2. Doffers: 86D (1 set)
  4. Yarn Joining and Clearing
    1. Yarn joining: air splicer
    2. Number of splicers: 3 CRGs
    3. Clearer type: MSC (basic)
    4. Splicer nozzle prism: G2Z
  5. Attachments and Components
    1. Crown attachment: no
    2. Nozzle type: eco NZL
    3. Needle holder type: 2PZ L8-8.8
    4. Break draft wheel: 30T
    5. Control panel: VOS2
    6. Waxing: with
  6. Exhaust and Extraction
    1. Hot air exhaust: from mac to ceiling
    2. Waste fibre extraction: individual
    3. OHTC: individual
    4. OHTC brand: Muratec
  7. Electrical Specifications
    1. Voltage: 380 V
    2. Frequency: 60 Hz
  8. Material Processed
    1. Material process: viscose
