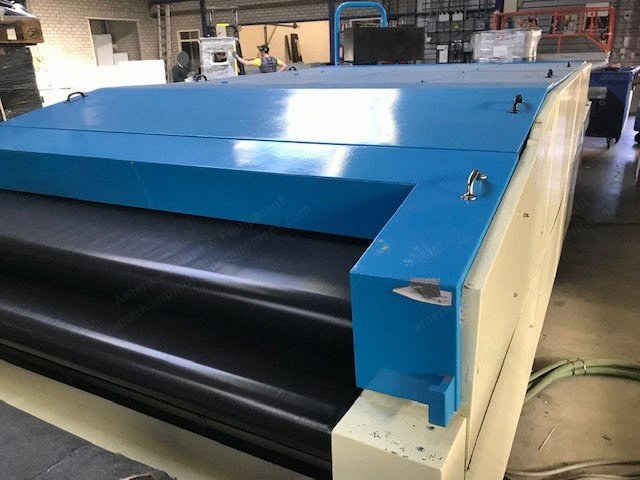

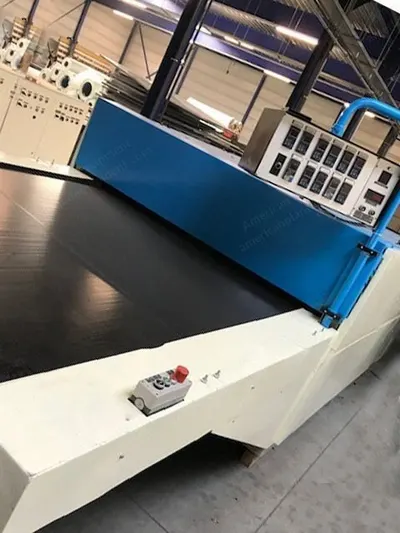

Meyer fusing machine (this machine is not a lamination machine, it is a fusing machine)
Year: 1992, refurbished in 2021
Double belt design
Specifications
Working width: 1800 mm
Length of heating zone: 2000 mm
Length of cooling zone: 1200 mm
Maximum temperature: 220 °C
Maximum height: 150 mm
Maximum pressure: 18 N/cm²
Speed: 0.5 – 15 m/min
Minimum temperature of cooling zone: 15 °C (lower may lead to condensation)
Main Fields of Application
Automotive (head liner, seats, door panels, rear parcel shelf, carpet, bonnet insulation, heat and noise absorbent parts)
Insulation
Noise damping
Home textiles (wall-coverings, carpets, furniture textiles, curtains, foot wear)
The wide range of technical textiles
Luggage
Apparel applications
Substrates with impermeable coatings (with PUR, PE, PVC-films) or heat fusible coatings (for further two- or three-dimensional processing) can also be produced
