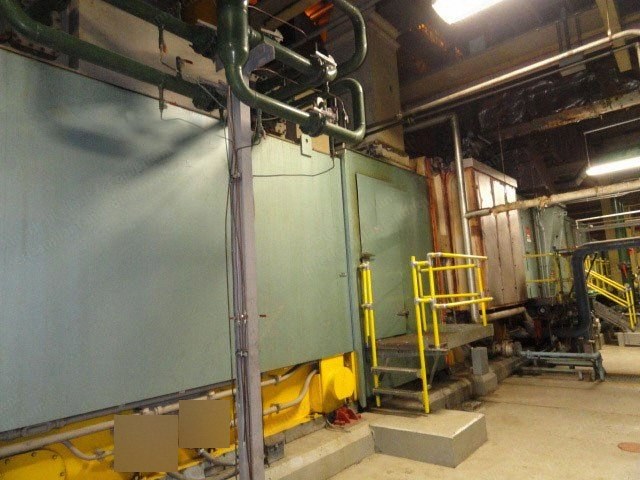

Description Overview Ge model 6541b gas turbine, dual fuel base rated 41,590 kw, water injected combustion used With inlet air cooled, heat rate at iso 10,860 btu/kwh, 5100 rpm Diesel black start engine Side exhaust to hrsg Sound enclosure Gearbox And Compressor Philadelphia gear box with atomizing air compressor, 650 hp, dwg no 334a7220p001, input 5100 rpm Philadelphia load gear hp rating 68391, model s664a 224h0l-a, input 5094 rpm output 3600 rpm Worthington natural gas compressor bore 13.0 stroke 6xh and gas train Cooling And Emissions Systems Resorcon turbine inlet air cooling system Water injection pump and system for nox control Fuel Systems Liquid fuel pump and supply system Generator And Electrical Ge tewac generator rated 46,500 kva, 13800 v, 3 phase, 60 hz, pf: 0.9, 1945 amps, 125 v exciter volts, field amps 778, 3600 rpm Mark iv control system Gac with ge vb1 3000 amp circuit breaker History And Condition Unit installed 1990, hot standby, shutdown 2020 Total hours 86,704.60, total starts 2,466 Last overhaul 2014, approx. 598 hours since last overhaul, still installed Still installed as operated but has now been disconnected
