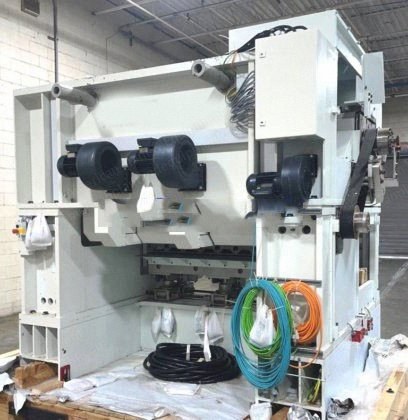

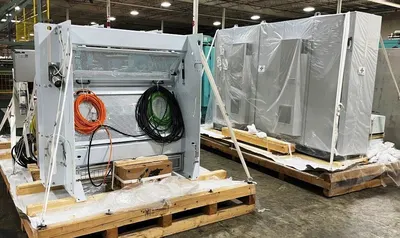

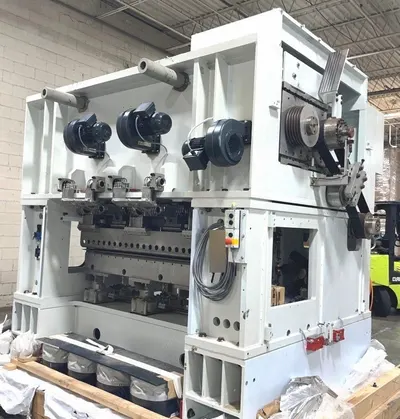

Dilo, Di-Loom OD-II HSC 12.5, 2004, 1250mm Working Width, 2600 Strokes/Min

Dilo, Di-Loom OD-II HSC 12.5, 2004, 1250mm Working Width, 2600 Strokes/Min

Description

  1. Overview
    1. Condition: Used
    2. Year: 2004
    3. Category: Needle looms
    4. Subcategory: Nonwoven
    5. Subcategory 2: Mechanical bonding
    6. Subcategory 3: Finishing needle looms
  2. Specifications
    1. Electricity: 480/3/60
    2. Width: 1250 mm
    3. Max working width: 1250 mm
    4. Width of needle boards: 200 mm
    5. Number of needles: 2 x 6667 needles per linear meter
    6. Vertical needle stroke: 30 mm
    7. Horizontal needle stroke: 10 mm
    8. Max stroke: 2600 strokes/min
  3. Machine details
    1. 01 Hyperpunch OD-II HSC 12.5 special needle loom with elliptical needle beam kinematics for light weight felts and highest throughput speed
    2. Needle beam made of carbon fiber reinforced composite material, installed on vibration dampers
    3. Application: Light weight felt - extremely high throughput speed

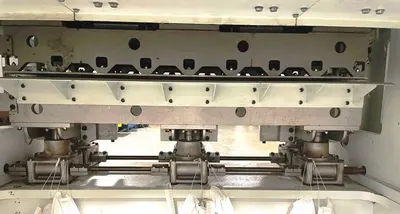

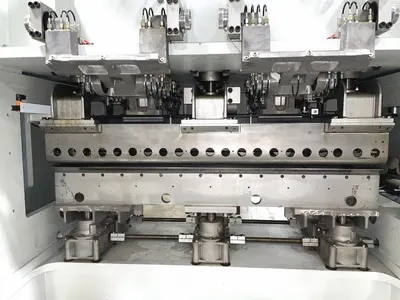

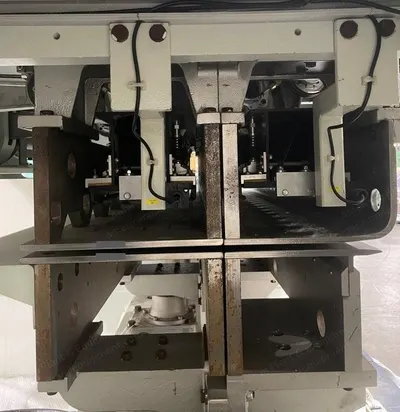

    4. Needling system: From top - by 2 x needle boards, needle beam moves vertically or horizontally
  4. Included components

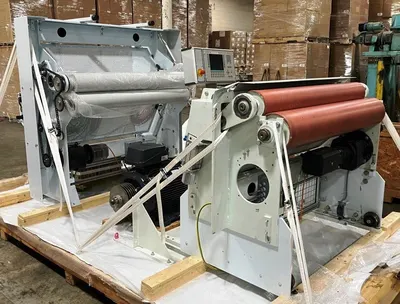

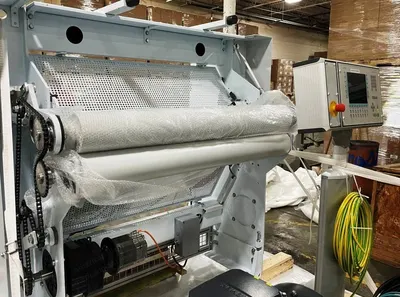

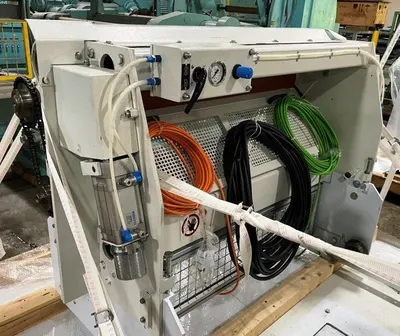

    1. Dilo feeding system by a pair of polished feeding rollers, free-standing frame
    2. Pressure roller pneumatically operated for easy threading of material and fine adjustment of the nip

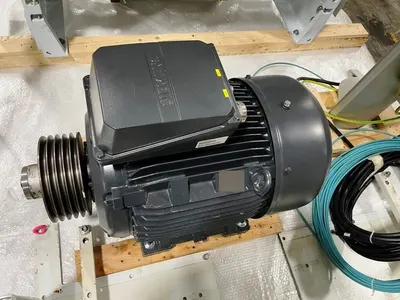

    3. Driven by 1 x AC-S gear motor

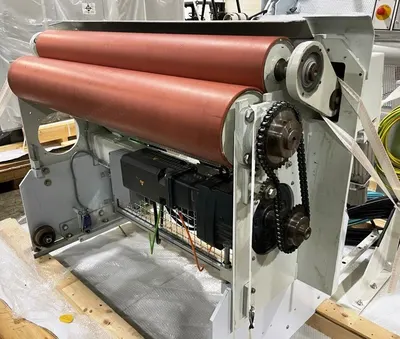

    4. Material transport: By 1 pair of delivery rollers driven by 1 x AC-S-gear motor
