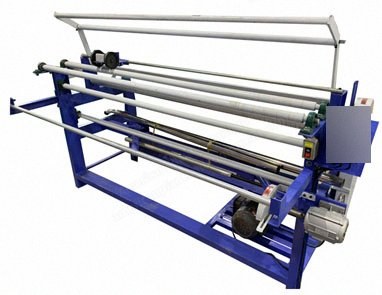

NovaStar, SR244, Bias Fabric Winding and Sewing Machine Line, 1800mm Width (New)

Description

Item 001: Bias fabric winding machine
1. Working area width: 1900 mm
2. Effective working area width: 1800 mm
3. Photoelectric edge aligning precision: ≤ +1.5 mm
4. Designed running speed: 5-80 m/min
5. Rolling motor: 300 W
6. Trimming motor: 250 W
7. Voltage: 220/380 V
8. Dimension: 2300 mm x 1000 mm x 1200 mm
9. Weight: 800 kg
10. Color: Customized
11. Packing: Ply-wooden packing
Item 002: Fabric sewing machine
1. Effective working width: 1800 mm
2. Sewing head: Sewing head/serger head
3. Diameter of shaft: 36.7 mm
4. Folding speed: 6-10 y/min
5. Motor power for pulling and folding: 1.5 kW
6. Voltage: 220 V
7. Dimension: 4600 mm x 2700 mm x 2500 mm
8. Weight: 1000 kg
9. Packing: Ply-wooden packing
Item 003: Basket unwinding unit
1. Height: 600 mm
2. Upper diameter: 920 mm
3. Lower diameter: 600 mm
4. With rotary table

Capacity	5-80 m/min running speed
Included	['Bias Fabric Winding Machine (Item 001)', 'Fabric Sewing Machine (Item 002)', 'Basket Unwinding Unit (Item 003)']
Sewing Machine Weight	1,000 kg
Winding Machine Weight	800 kg

Voltage	220 V
